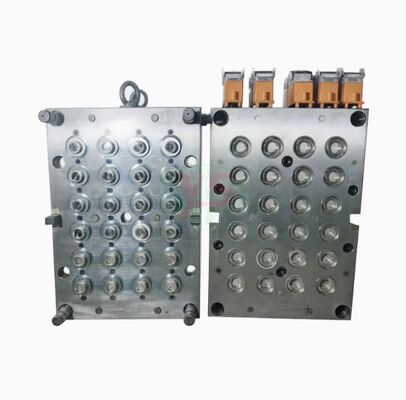

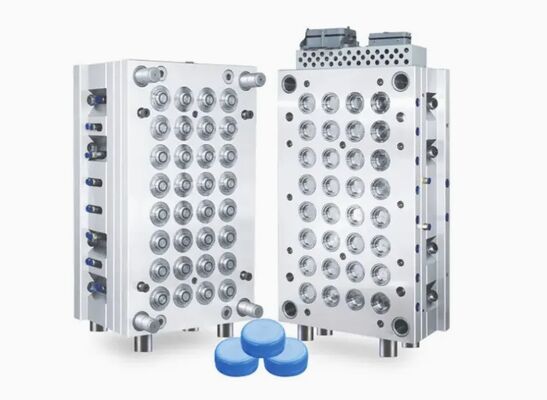

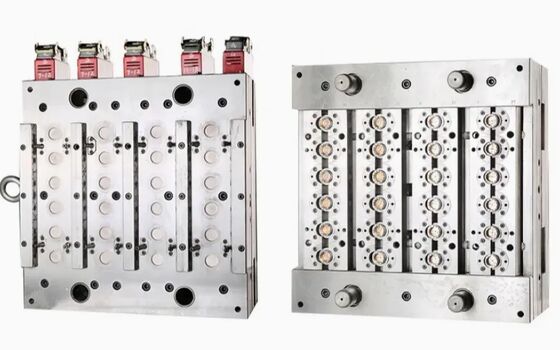

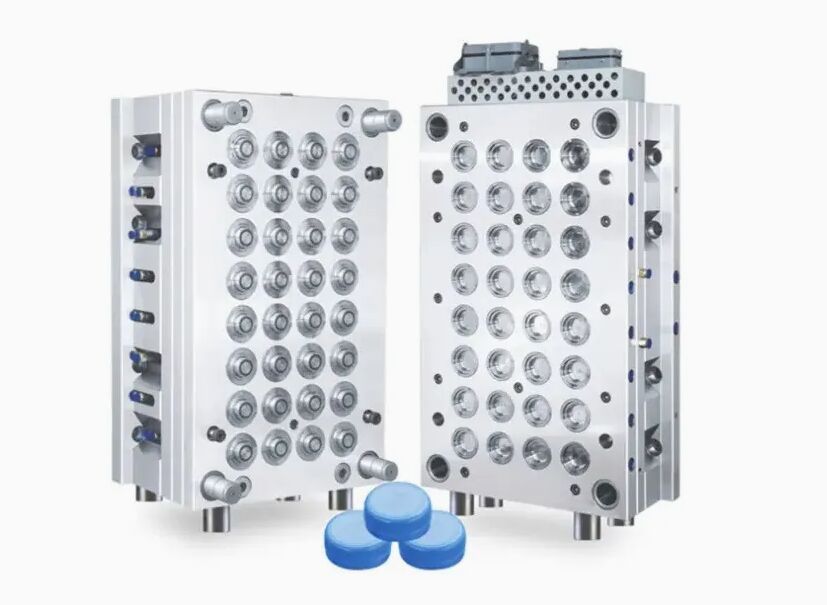

Multi-Cavity Snap-On Cap Injection Mold for Plastic Bottle Cap Manufacturing

Product Overview

The Multi-Cavity Snap-On Cap Injection Mold is designed for the efficient production of plastic bottle caps that utilize a snap-on locking mechanism. These closures are widely used in packaging industries where quick sealing, ease of use, and reliable product protection are essential.

Unlike threaded caps, snap-on caps rely on a precise internal locking structure that securely attaches to the bottle neck through a snap fit. This requires a highly accurate mold cavity design to ensure proper engagement and consistent cap performance.

Our snap-on cap molds are engineered with optimized cooling systems, durable mold steels, and multi-cavity configurations to deliver stable cycle times, high output, and long mold service life.

This solution is ideal for manufacturers producing high-volume plastic closures for beverage, food, and consumer packaging applications.

Product Description

The snap-on cap injection mold is designed to manufacture plastic bottle caps that attach directly to containers using a snap-fit structure rather than threaded engagement.

The mold integrates precision core and cavity inserts, balanced runner systems, and optimized cooling channels to maintain consistent molding conditions across every cavity.

Key design features include:

• High-precision snap-fit cavity design

• Balanced plastic flow distribution

• Efficient cooling channel layout

• Durable core inserts and cavity blocks

• Smooth demolding and part release design

The multi-cavity structure enables manufacturers to produce large quantities of caps in each molding cycle while maintaining stable product quality.

Common cavity configurations include:

• 8 cavity snap-on cap mold

• 16 cavity snap-on cap mold

• 24 cavity snap-on cap mold

• 32 cavity snap-on cap mold

These molds are widely used for high-volume plastic cap production where efficiency and dimensional accuracy are critical.

Applications

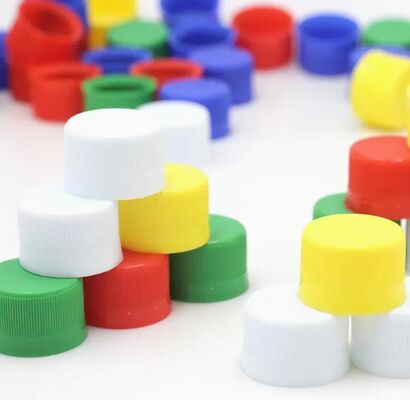

Snap-on caps are commonly used in a wide range of packaging industries due to their convenience and secure sealing performance.

Typical applications include:

Beverage Packaging

• Water bottle snap-on caps

• Juice container caps

• Sports drink bottle closures

Food Packaging

• Yogurt container lids

• Sauce container caps

• Snack packaging closures

Cosmetic & Personal Care

• Lotion bottle caps

• Cosmetic jar closures

Household Product Packaging

• Cleaning product caps

• Detergent bottle closures

The mold is compatible with commonly used plastic materials, such as:

• PP (Polypropylene)

• PE (Polyethylene)

• HDPE

These materials provide the flexibility and durability required for snap-fit closure designs.

Precision & Manufacturing Capabilities

Our company manufactures high-precision plastic injection molds using advanced production equipment and strict quality standards.

Our manufacturing capabilities include:

• High-precision CNC machining centers

• Wire EDM machining

• Mirror EDM cavity finishing

• Precision surface grinding

• Professional heat treatment processes

• Mold tolerance control up to ±0.005 mm

Each mold undergoes complete assembly, inspection, and mold trial testing before shipment to ensure stable production performance.

Advantages for Plastic Cap Manufacturers

Choosing the right mold directly impacts the quality, efficiency, and profitability of plastic closure production.

Our snap-on cap molds offer the following benefits:

High Production Efficiency

Multi-cavity designs allow manufacturers to increase output per injection cycle significantly.

Reliable Snap Fit Performance

Precision cavity design ensures consistent locking between cap and container.

Consistent Product Dimensions

High-precision machining guarantees uniform cap thickness and accurate locking structures.

Long Mold Service Life

Premium mold materials combined with professional heat treatment ensure durability.

Stable Continuous Production

Optimized mold structure improves production stability and reduces downtime.

What We Need for Quotation

To provide an accurate mold quotation and design proposal, please send us the following information:

• Cap 3D drawings or product samples

• Cap diameter and snap structure details

• Plastic material used (PP / PE / HDPE)

• Required number of mold cavities

• Expected production capacity

• Injection molding machine specifications (if available)

Our engineering team will evaluate your project and recommend the most suitable mold design.

FAQ

What is a snap-on cap?

A snap-on cap is a plastic closure that attaches to a container through a snap-fit locking structure instead of screw threads.

What materials are typically used for snap-on caps?

Most snap-on caps are produced using PP, PE, or HDPE, which provide good flexibility and durability.

Can the mold cavity number be customized?

Yes. Mold cavity numbers can be customized according to production requirements and injection machine capacity.

What is the typical lifespan of the mold?

With proper maintenance and high-quality mold materials, the mold can support millions of injection cycles.

Do you provide mold testing before delivery?

Yes. All molds undergo trial injection testing and quality inspection before shipment.

Contact Our Team

Purchasing Inquiry

Looking for a reliable snap-on cap injection mold manufacturer?
Contact us today to receive a competitive quotation and lead time estimate.

General Inquiry

Whether you need plastic cap molds, packaging molds, or precision mold components, our team is ready to assist your project.

Send us your drawings today and start your snap-on cap mold project with confidence.
