Multi-Cavity Flip Top Cap Injection Mold for Plastic Bottle Closures

Product Overview

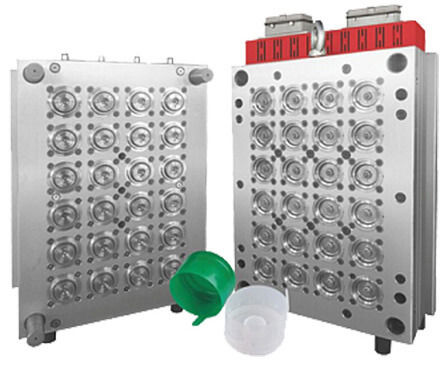

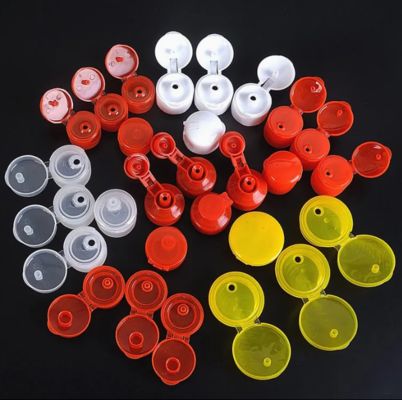

The Multi-Cavity Flip Top Cap Injection Mold is designed for high-efficiency manufacturing of flip-top plastic closures widely used in packaging industries. These molds are engineered to produce caps with integrated hinged lids that allow easy open-and-close functionality for bottles and containers.

Built with precision mold components and optimized cavity structures, the flip-top cap mold ensures stable hinge formation, smooth lid movement, and consistent cap quality during large-scale injection molding production.

With multi-cavity layouts and optional hot runner systems, this mold solution helps manufacturers increase productivity while maintaining strict dimensional accuracy for packaging closures.

Product Description

The flip-top cap mold is specially engineered to manufacture plastic closures with a built-in hinged lid mechanism. Compared with standard bottle caps, flip-top caps require higher precision mold design to ensure the hinge area is durable and flexible during repeated opening and closing.

This mold incorporates advanced design features, including:

• Precision hinge-forming cavity structure

• Balanced plastic flow channels

• Efficient cooling system

• High-polish cavity surfaces

• Durable core and cavity inserts

The mold can be configured with different cavity numbers depending on production requirements, allowing manufacturers to increase output while maintaining stable molding cycles.

Typical cavity options include:

• 8 cavity flip top cap mold

• 16 cavity flip top cap mold

• 24 cavity flip top cap mold

• 32 cavity flip top cap mold

The mold is suitable for continuous high-volume production environments where precision and durability are essential.

Applications

Flip-top caps are widely used across many packaging sectors due to their convenience and user-friendly design.

Cosmetic Packaging

• Shampoo bottle caps

• Lotion bottle closures

• Facial cleanser caps

Personal Care Products

• Liquid soap caps

• Body wash closures

Food Packaging

• Sauce bottle caps

• Condiment container closures

Household Chemical Packaging

• Cleaning product caps

• Detergent bottle closures

The mold supports common thermoplastic materials, including:

• PP (Polypropylene) – most commonly used for flip-top caps due to hinge flexibility

• PE (Polyethylene)

• HDPE

Precision & Manufacturing Capabilities

We specialize in manufacturing high-precision molds for packaging closures using advanced machining technology.

Our production capabilities include:

• High-precision CNC machining centers

• Wire EDM processing for complex mold components

• Mirror EDM finishing

• Precision surface grinding

• Professional heat treatment

• Mold assembly and inspection under strict quality standards

Dimensional tolerance can reach ±0.005 mm, ensuring accurate hinge structures and reliable cap performance.

Each mold undergoes trial injection testing before shipment to confirm proper function and product quality.

Why Packaging Manufacturers Choose Flip Top Cap Molds

Flip-top caps require highly precise mold design because the hinge area must remain flexible and durable throughout the product lifecycle.

Our molds provide key benefits for packaging manufacturers:

Reliable Hinge Performance

Specialized cavity design ensures durable hinge formation that withstands repeated opening and closing.

High Production Efficiency

Multi-cavity structures increase production capacity per injection cycle.

Consistent Cap Quality

Precision machining guarantees uniform dimensions across all cavities.

Long Mold Lifespan

Premium mold steels and heat treatment improve wear resistance and durability.

Stable Manufacturing Process

Optimized cooling channels and balanced flow systems reduce molding defects and cycle time.

What We Need for Quotation

To provide an accurate quotation and mold design proposal, please send us the following information:

• Flip-top cap 3D drawing or product sample

• Cap diameter and hinge structure details

• Required mold cavity number

• Plastic material used in production

• Expected production volume

• Injection molding machine specifications (optional)

Our engineering team will evaluate your requirements and recommend the most suitable mold solution.

FAQ

What materials are commonly used for flip-top caps?

Most flip-top caps are made from PP (Polypropylene) because it provides excellent hinge flexibility and durability.

How many cavities can a flip-top cap mold have?

Depending on cap size and machine capacity, molds can be designed with 8, 16, 24, or 32 cavities.

Can you customize molds for different cap designs?

Yes. We manufacture custom molds based on customer drawings, samples, and production requirements.

What is the typical lifespan of a flip-top cap mold?

With proper maintenance and high-quality mold steel, the mold can support millions of injection cycles.

Do you test molds before shipment?

Yes. All molds undergo trial injection tests and quality inspections before delivery.

Contact Our Team

Engineering Inquiry

Send us your flip-top cap drawings or samples, and our engineers will provide a professional mold design evaluation.

Purchasing Inquiry

Looking for a reliable flip-top cap mold manufacturer?
Contact us today for a competitive quotation and delivery schedule.

General Inquiry

Whether you need custom packaging molds, flip-top cap molds, or precision mold components, our team is ready to assist your project.

Send your drawings today and start your mold project with us.
