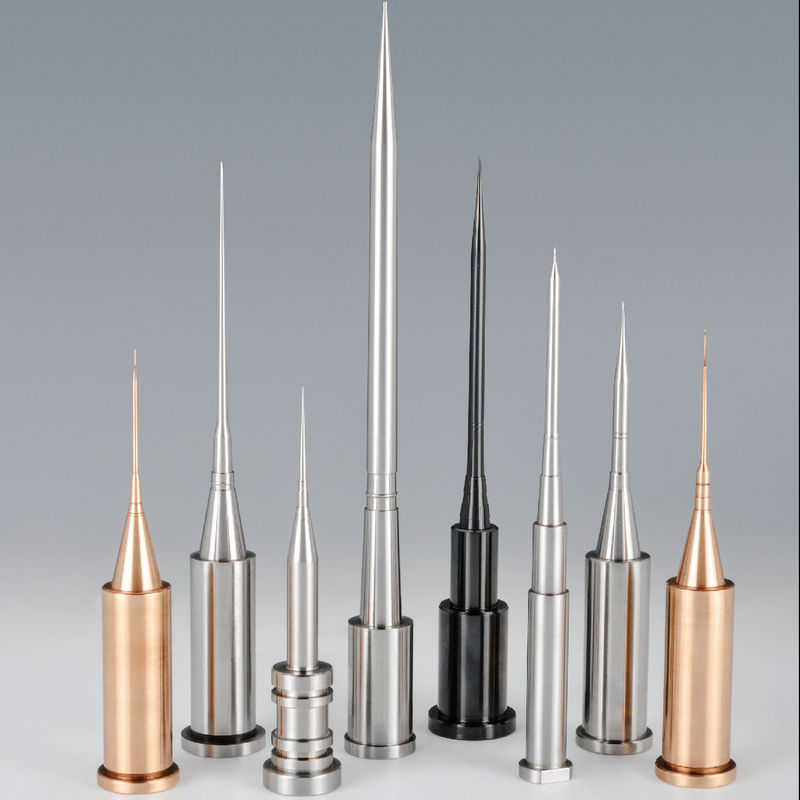

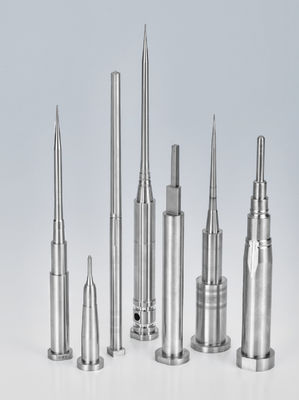

H13 Precision Tapered Core Pins for Medical Injection Molds
H13 Precision Tapered Core Pins are specialized mold components designed for high-precision medical injection molding applications. These tapered core pins are used to form small holes, thin internal channels, and precision cavities in plastic medical parts.
Manufactured from H13 hot-work tool steel, these core pins provide excellent resistance to wear, high temperatures, and mechanical stress during continuous injection molding cycles. The tapered geometry improves mold release performance and ensures high dimensional accuracy for delicate molded components.
Precision tapered core pins are widely used in molds producing medical consumables, laboratory plastics, and precision-structured plastic components, where dimensional stability and surface quality are critical.
Product Features
Tapered core pins are used inside injection molds to create internal features or deep precision holes in molded plastic parts. Compared with standard straight core pins, tapered designs improve part release and reduce the risk of part sticking or deformation during ejection.
In medical injection molding, molds often produce components with very small diameters, thin walls, and complex internal geometries. Precision tapered core pins help ensure consistent molding quality and prevent defects such as flash, burrs, or deformation.
These pins are manufactured using high-precision CNC machining, precision grinding, and polishing processes to achieve tight dimensional control and smooth surface finishes.
- Made from H13 hot-work tool steel
- Designed for medical injection mold tooling
- Precision tapered geometry for easy mold release
- High resistance to wear, heat, and deformation
- Ultra-smooth surface finishing for precision molding
- Excellent straightness and concentricity
- Custom sizes available based on mold design
- Machining tolerance up to ± 0.005 mm
These characteristics ensure stable performance in high-cavity medical molds running continuous production cycles.
Applications
H13 precision tapered core pins are widely used in medical injection molds and precision precision plastic molding applications.
Medical Consumables Molds
Used for molding components such as medical caps, connectors, and precisionplastic parts.
Laboratory Plastic Molds
Suitable for molds producing laboratory consumables, including small tubes, tips, and precisionfluidic components.
Precision precision Injection Molding
Used in molds that require precision holes or extremely thin core structures.
Pharmaceutical Packaging Components
Applied in molds producing closures and small precision plastic parts used in pharmaceutical packaging.
High-Cavity Medical Injection Molds
Ensures stable molding performance in multi-cavity production molds.
Precision & Manufacturing Capabilities
Our manufacturing process ensures consistent quality for precision mold components used in medical injection molds.
- Advanced CNC turning and precision machining
- Precision centerless grinding and taper grinding
- Mirror polishing and fine surface finishing
- Professional vacuum heat treatment
- Dimensional tolerance up to ± 0.005 mm
- Strict quality inspection and measurement
These processes ensure high-dimensional accuracy, surface quality, and durability required for medical mold tooling.
Reliable Precision for Medical Mold Tooling
Stable precision Feature Formation
Precision tapered core pins allow molds to create fine internal features and precision holes with consistent accuracy.
Improved Mold Release Performance
The tapered structure helps prevent sticking and reduces stress on delicate molded parts during ejection.
Long Mold Component Life
H13 tool steel provides excellent resistance to wear and thermal fatigue during continuous injection molding cycles.
High Production Stability
Precision machining ensures consistent performance in high-cavity medical molds.
Reduced Maintenance and Downtime
Durable materials and accurate manufacturing minimize component wear and maintenance requirements.
What We Need for Quotation
To provide an accurate quotation for custom tapered core pins, please provide:
- 2D drawings or 3D CAD files
- Required taper angle, diameter, and length
- Tolerance requirements
- Material specification (H13 or equivalent)
- Surface finishing requirements
- Quantity needed
- Mold application details
Our engineering team will evaluate your drawings and provide a manufacturing solution.
Frequently Asked Questions
What is the function of tapered core pins in injection molds?
Tapered core pins are used to create small internal holes or precision features in plastic parts while improving part release during mold opening.
Why are tapered core pins used in medical molds?
Medical components often require very small and precise features, and tapered pins help ensure accurate molding and easy demolding.
Why is H13 steel used for these pins?
H13 tool steel provides excellent heat resistance, wear resistance, and mechanical strength, making it suitable for continuous injection molding.
Can tapered core pins be customized?
Yes. Diameter, taper angle, length, and head structure can all be custom-manufactured based on mold design drawings.
What machining tolerance can you achieve?
Our precision machining capability allows tolerances up to ± 0.005 mm for mold components.
