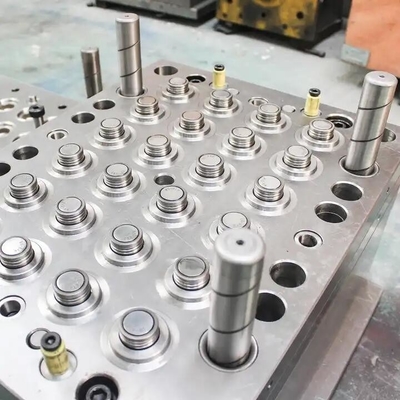

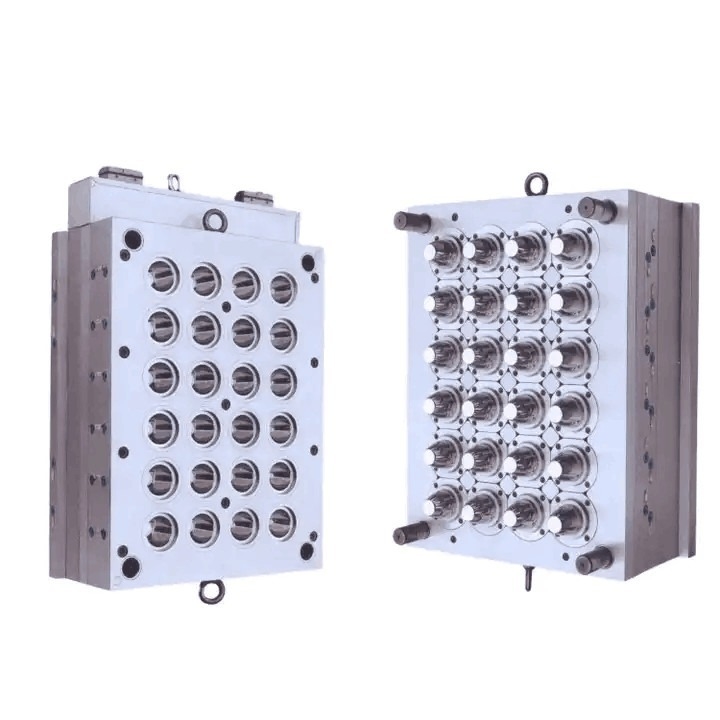

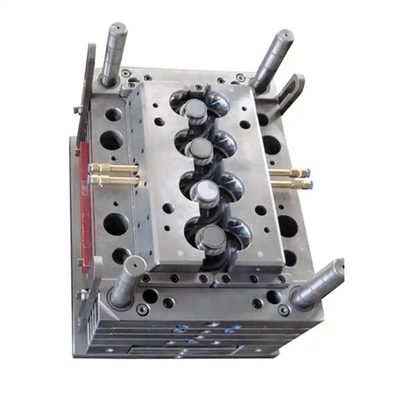

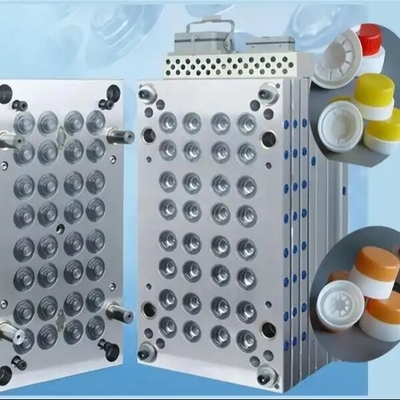

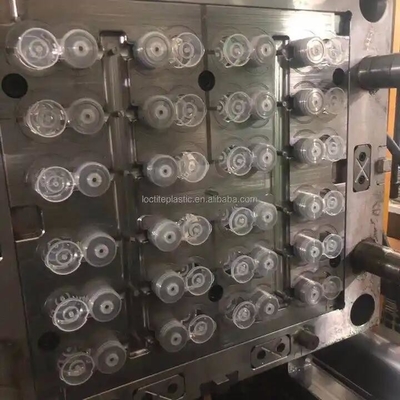

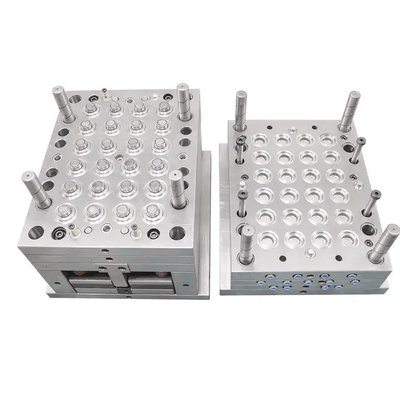

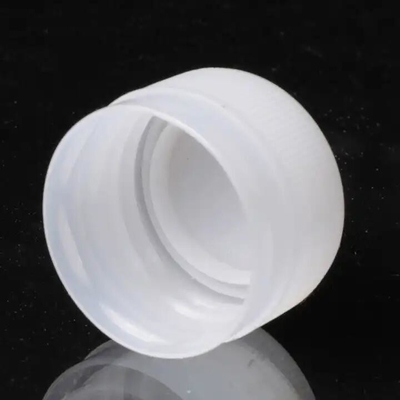

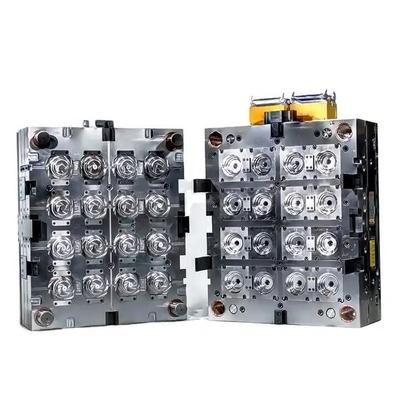

Hot Runner Plastic Injection Molding Bottle Cap Eco-Friendly For Package

Multi-Cavity Eco-Friendly Packaging Cap Tooling

Product Overview

We specialize in hot runner plastic injection molding molds for bottle caps, designed for high-speed, multi-cavity production in packaging industries.

Bottle cap injection molds require:

• Stable high-cycle performance

• Balanced cavity-to-cavity consistency

• Efficient hot runner temperature control

• Long mold life under continuous production

Our bottle cap molds are widely used for beverage, food, cosmetic, and household packaging applications, supporting eco-friendly and recyclable plastic materials such as PP and PE.

Application Industries

This hot runner bottle cap injection mold is commonly used in:

• Beverage packaging (water, juice, carbonated drinks)

• Food container caps

• Cosmetic bottle closures

• Household chemical packaging

• Pharmaceutical packaging

High production efficiency and repeatability are essential in these industries.

Key Engineering Focus

Bottle cap molds operate under high-speed and high-volume conditions.
The main engineering challenges involve flow balance, cavity consistency, and durability.

1) Hot Runner System Stability

A stable hot runner system ensures:

• Uniform melt flow to each cavity

• Reduced material waste

• Shorter cycle time

• Lower energy consumption

Precise temperature control prevents material degradation and improves cap quality consistency.

2) Multi-Cavity Balance

Bottle cap molds are typically designed with multi-cavity configurations.

• Balanced runner layout

• Uniform filling across cavities

• Controlled dimensional tolerance

• Reduced weight variation between caps

Cavity consistency directly affects sealing performance and assembly reliability.

3) High-Speed Production Durability

Bottle cap production often runs 24/7.

• Wear-resistant mold materials

• Hardened core and cavity inserts

• Optimized cooling system

• Stable ejector mechanism

The mold structure is designed for long-term high-cycle operation.

4) Eco-Friendly Material Compatibility

Modern packaging requires recyclable materials.

• Suitable for PP / PE and other recyclable plastics

• Stable molding of lightweight cap structures

• Support for reduced material thickness designs

Eco-friendly packaging trends demand precise mold engineering.

Mold Specifications

• Mold Type: Hot Runner Bottle Cap Injection Mold

• Plastic Materials: PP / PE / ABS / PC / PVC / TPE / TPU

• Runner System: Hot Runner or Cold Runner

• Cavity: Single or Multi-Cavity

• Mold Steel: 45# / 50# / P20 / 718 / 2738 / NAK80 / S136

• Mold Base: LKM / HASCO / DME

• Mold Life: 300,000 – 500,000 shots (higher life available upon request)

• Surface Treatment: Polishing / Texture / Plating / Printing

• Tolerance: 0.02 – 0.05 mm

Manufacturing Capabilities

• Maximum mold size: 2500 × 2000 × 1500 mm

• Machining precision: ±0.005 mm

• Injection precision: ±0.03 mm

• Lead time: 25–45 days depending on cavity count and complexity

In-house precision equipment includes:

• CNC machining centers

• EDM and mirror EDM

• Wire cutting machines

• Coordinate Measuring Machine (CMM)

Each mold undergoes dimensional inspection and trial molding before delivery.

Production Workflow

1. Product data and cap structure review

2. Cavity layout and hot runner design

3. Mold structure confirmation

4. Precision machining and heat treatment

5. Assembly and fitting

6. Mold trial and cycle optimization

7. Final inspection and shipment

This structured workflow ensures stable performance in mass production.

Why Choose Our Bottle Cap Mold Solutions

• Experience in high-speed cap mold manufacturing

• Multi-cavity precision engineering capability

• Stable hot runner system integration

• Support for eco-friendly packaging trends

• ISO 9001:2015 certified quality control

• One-year after-sales support

Our focus is on delivering reliable bottle cap molds for continuous industrial production.

Technical FAQ

Q1: Can you design high-cavity bottle cap molds?
Yes. Multi-cavity configurations are available depending on production volume requirements.

Q2: Is the hot runner system optimized for high-speed molding?
Yes. Temperature control and flow balance are carefully designed to support short cycle times.

Q3: Are recyclable materials supported?
Yes. PP and PE materials for eco-friendly packaging are fully supported.

Q4: How is cavity consistency controlled?
Through balanced runner layout and strict dimensional inspection of each cavity.

Q5: What is the typical mold life?
Standard molds are rated for 300,000–500,000 shots, with extended-life options available.

Request a Quotation

To receive a quotation for a Hot Runner Bottle Cap Injection Mold, please provide:

• Cap 3D drawing or sample

• Plastic material specification

• Number of cavities required

• Target production output

• Delivery schedule

Our engineering team will review your requirements and provide a detailed mold proposal.
