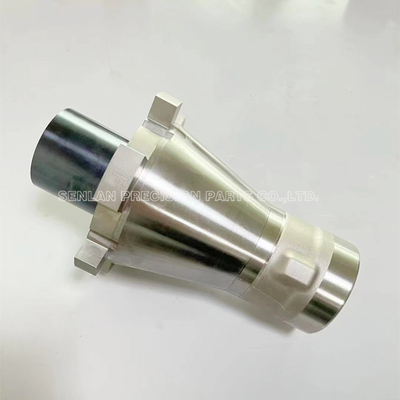

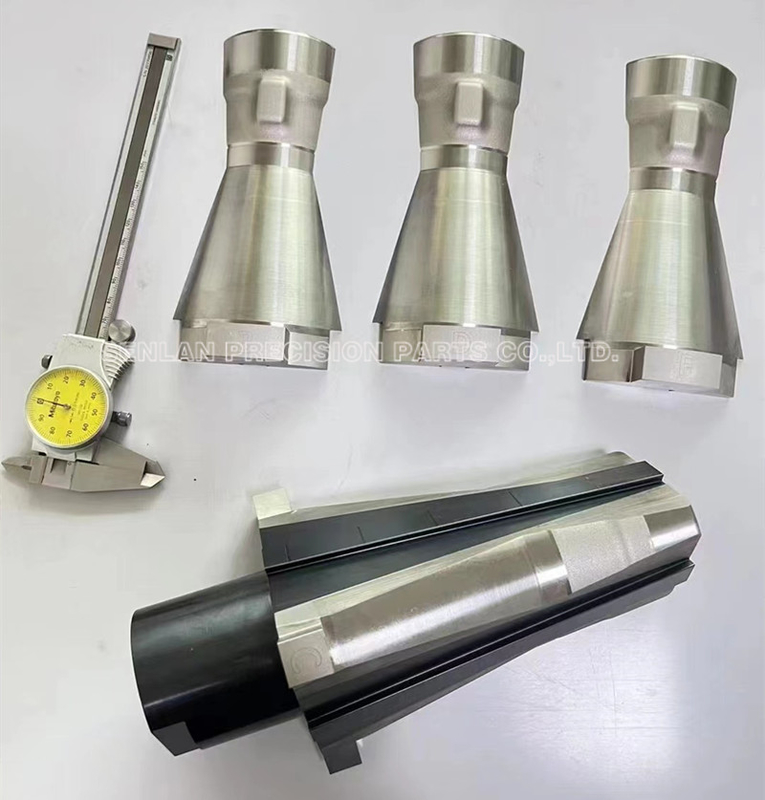

8470 Material Plastic Mould Parts , Inserts Pins Collapsible Core Mold

8470 Material Plastic Mould Parts Collapsible Core Mold Inserts Core Pins

The internal and external threads on the part create undercuts which prevent a simple mold design. Solutions include side action cams, threaded inserts, and collapsible core. Side action cams will only allow for external threads. Threaded inserts can produce accurate internal and external threads, but the long cycle time will increase part cost. A collapsible core can quickly produce internal threads, which will be used in this mold.

Undercut designs are often used to create threaded parts, such as screw-on bottle caps, snap-on products such as lipstick containers, and a variety of consumer, medical, automotive, and other products. Threaded caps illustrate well the complexities associated with undercuts. After the cap is formed, the threads of the part and the threads of the core are intermeshed and must be disengaged before the core can be pulled out and the cap removed from the mold.

Senlan Indroduction plastic mould parts.pdf

Fetures of Collapsible Core


Tolerance of Collapsible Core
+-0.005mm, Depends on customer’s requirements.

Drawing Format of Collapsible Core
PDF/DWG/DXF/IGS/STEP,etc

Packaging of Collapsible Core
Inner packing with recycle plastic box and anticorrosive oil, outer with sponge and PE bags, or as customer's requirements.

Application field of Collapsible Core
Automobile parts, medical, daily necessities packaging, cosmetic packaging, etc.

Sales team
Only with teamwork can leadership be maintained.
Team spirit is a company’s core competitiveness. Only team can lead the way, only strong team can go further.

Main products
SENLAN manufactures a full line of standard and customized ejector pins,punches,insert pins ,cavity pins,core pins,mold core, and other mould accessories and die parts etc.

Service
1. Providing professional advises and operation.
2. Customer service online with 24 hours.
3. Full inspection on all the products before shipment.
4. Good After-sale service.
5. Strict quality control.
6. Shipping & Price Term: EXW my factory; FOB any Chinese port; CIF any destination port.
7. OEM and ODM are all available.

Product display
Senlan Precision Mould Parts Co., Ltd, is a professional OEM die casting parts manufacturer. We provide tooling design,tooling fabrication, die casting, secondary process, precision machining,T6 treatment,finish treatment and assembling.
We have a team with rich quality control experience which helps us meet customers' requirements and satisify the customers' demands .High quality, competitive price, quick response are our missions.
FAQ
Q: What do you need to provide a quote?
A: Please kindly send us the drawing or sample of your product. Details below should be included,
1.Materials 2. Surface Finish 3. Tolerance 4. Quantity 5.other special requirements.

Q: How long is your delivery time?
A: It is 7-30 days produce an order from MOQ to 40HQ container. But the exact delivery time might be depend on different quantity.

Q: Do you provide samples ? Is it free or extra ?
A: Yes, we are honored to offer you samples or raw material for quality inspection,but do not pay the cost of freight.

Q: How does your factory do regarding quality control?
A: Quality is priority. Senlan always attach great importance to quality control from the very beginning to the end of the production.Before processing we need to test the material first. During the processing we use bar code to tracking the proceeding.We will make 100% inspection before packing and delivery to make sure the products 100% meet your requirements.We will keep the production drawing and test report with 3 months, if you found any problems when received the parts, please contact us at the first time, we will give you a solution within 8 hours.
