Standard ISO Certificated M310 Bohler Mold Core Pins For Plastic Mould
Product Overview

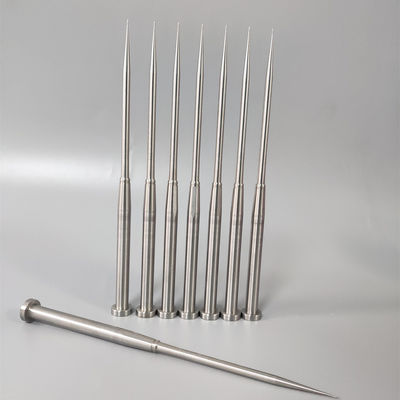

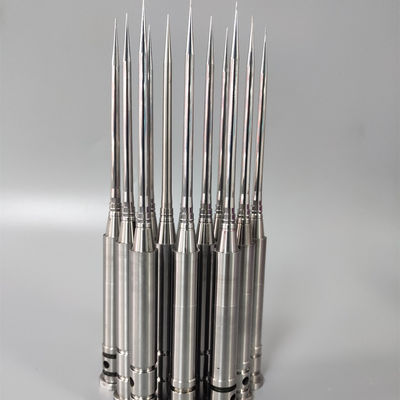

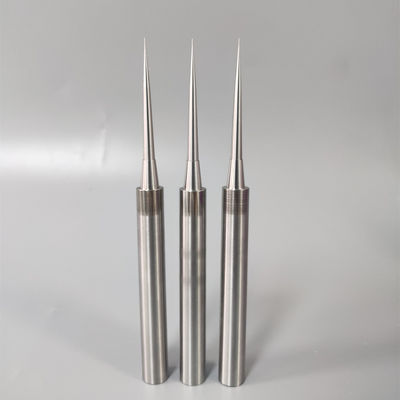

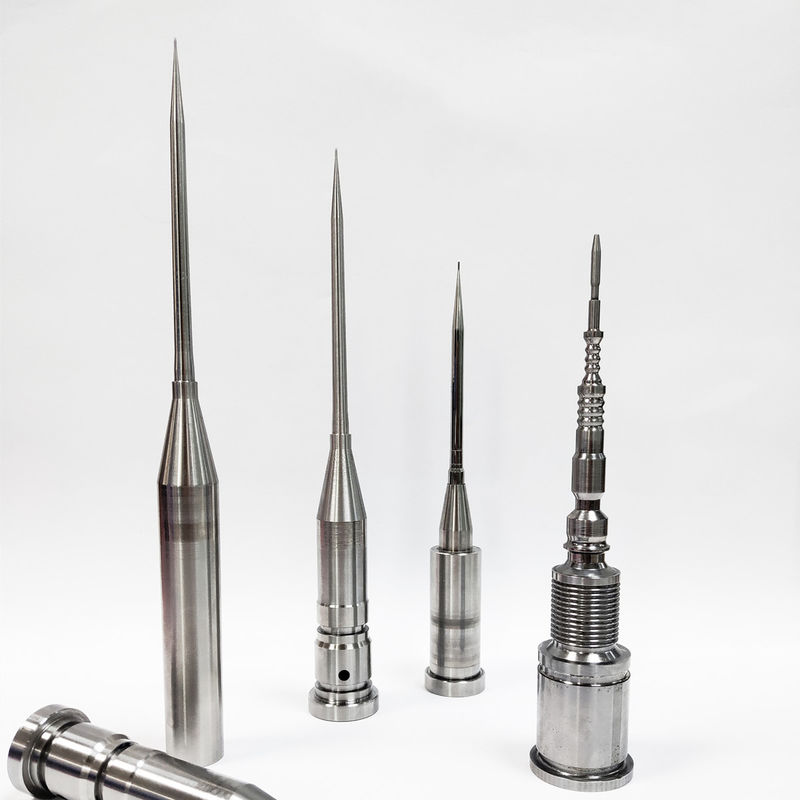

Standard ISO Certificated M310 Bohler Mold Core Pin Metal Round Stepped for Plastic Mould
Mold Core Pin Description
Mold Core Pins and core blocks are essential components used in aluminum alloy die-casting to produce net-shape parts and prevent shrinkage in thick casting sections. For large castings, challenges such as soldering of Mold Core Pins due to insufficient cooling and leakage may occur. Our optimized cooling system addresses these issues through extensive research on heat flow under various casting conditions.
This research has led to the development of thin wall Mold Core Pin shapes optimized for both heat flow and mechanical performance. The ideal cooling channel diameter should be 70% of the outer diameter of the Mold Core Pin. This thin wall design combined with high-pressure water cooling eliminates soldering issues and provides longer Mold Core Pin life compared to conventional solid pins without internal cooling.
Packaging & Delivery Specifications
| QC System |
100% Inspection Before Shipment |
| Packaging |
Standard package, Pallet or container, As per customized specifications |
| Delivery Date |
7-30 working days based on quantity |
| Payment Terms |
≥USD500.00 30% T/T deposit, 70% balance before shipment; T/T, L/C are acceptable |
| Shipment Terms |
1) ≤100kg: express & air freight priority
2) >100kg: sea freight priority
3) As per customized specifications |
Our Manufacturing Advantages
- More than 30 proprietary patents
- Established since 2006 with over 15 years of industry experience
- Advanced workshop equipment ensuring precision manufacturing
- Comprehensive quality control system before delivery
- Zero client complaints after component implementation
- One-stop solution from design to manufacturing
- High attention to packaging security for safe delivery
- Custom non-standard mold components available
- Low rework rate for optimal efficiency
Frequently Asked Questions
Q1: Which Information is Required for Quotation?
A: 1. Product 2D/3D drawing 2. Product material 3. Cavitation 4. Runner type: cold or hot 5. Mold steel type 6. Mold trial and sample quantity 7. Other special requirements
Q2: I Have a Sample But No Drawing - What Should I Do?
A: Please send us photos of the sample. You can also send the physical sample along with your specifications, and we will assist with 3D drawing design.
Q3: How Do You Control the Mold Processing?
A: We provide weekly process reports and mold processing pictures to keep customers informed throughout the manufacturing process.
Q4: What is Your Lead Time?
A: For injection molds: 28-60 days depending on product structure complexity. For injection molding parts: 5-10 days for small orders (larger quantities require discussion).
Q5: Didn't Find the Answer You Were Looking For?
A: Please contact us today with your questions, and our team member will respond as soon as possible.
