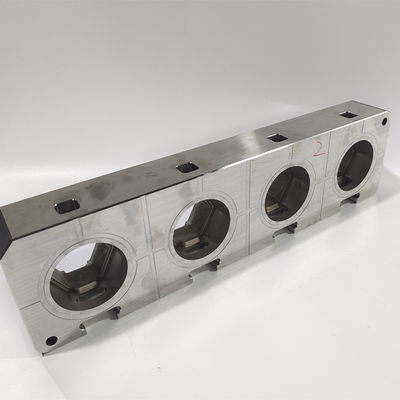

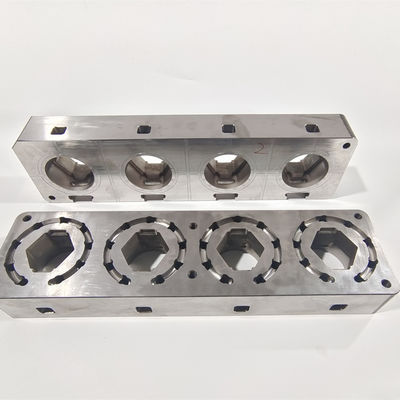

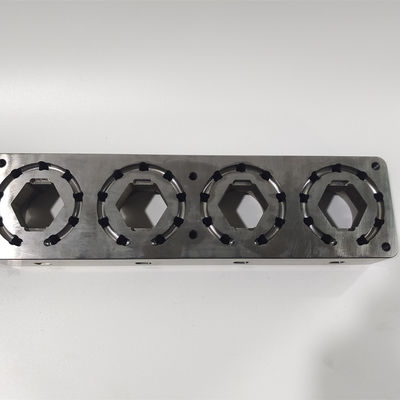

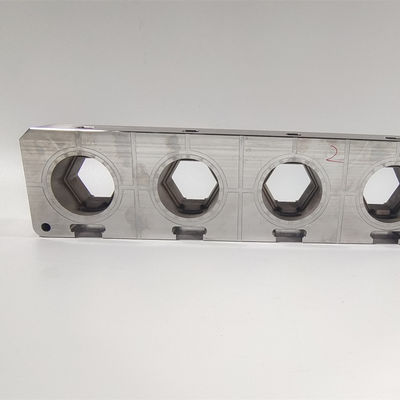

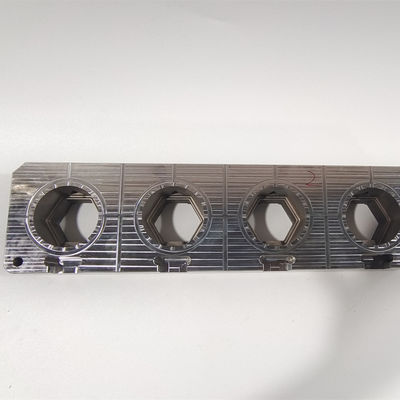

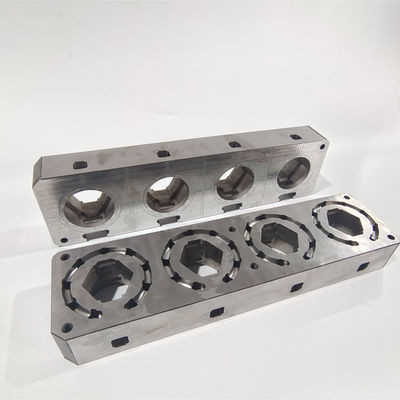

Precision 1.2083 Mold Core Insert Block
High-precision mold component designed for plastic injection mold tooling used in packaging and medical plastic production. This core insert forms the internal geometry of molded plastic parts while ensuring dimensional accuracy and consistent production performance.
Product Overview
Manufactured from 1.2083 stainless mold steel (DIN standard), this insert offers excellent corrosion resistance, high hardness after heat treatment, and superior polishability. These properties make it particularly suitable for molds used in medical consumables, cosmetic packaging, and high-hygiene plastic components.
The multi-cavity structure allows the mold to produce multiple parts in each injection cycle, improving manufacturing efficiency while maintaining uniform product quality.
Product Description
A mold core insert block is a modular mold component installed inside the core side of a plastic injection mold. It is responsible for forming the internal shape, holes, and functional structures of molded plastic parts.
Instead of machining the entire mold core plate from one piece of steel, many molds adopt replaceable insert blocks. This modular structure offers several operational advantages:
- Simplified mold maintenance
- Faster replacement of worn cavities
- Reduced mold repair costs
- Improved machining precision for complex geometries
Key Features
- Manufactured from 1.2083 stainless mold steel
- Precision multi-cavity mold insert design
- Suitable for plastic injection mold tooling
- High corrosion resistance for hygienic production environments
- Excellent surface finish capability for precision molding
- Replaceable insert structure for easy mold maintenance
- Machining tolerance up to ± 0.005 mm
Applications
Plastic Packaging Products
Used in molds producing packaging components such as caps, lids, and cosmetic containers.
Medical Consumables
Applicable in molds producing medical disposable plastic parts, including laboratory accessories and small medical components.
Cosmetic Packaging
Suitable for molds manufacturing cosmetic lids, small containers, and personal care packaging components.
Consumer Plastic Products
Used for producing precision plastic parts for daily-use consumer products.
Multi-Cavity Injection Molds
Designed for molds that require high production efficiency and consistent cavity performance.
Precision & Manufacturing Capabilities
Manufacturing precision mold inserts requires advanced machining technology and strict dimensional control.
Our capabilities include:
- High-precision CNC milling and machining
- Precision grinding and cavity finishing
- Advanced runner and cavity channel machining
- High-quality surface polishing
- Professional heat treatment processes
- Comprehensive dimensional inspection
Our machining capability allows precision tolerances up to ± 0.005 mm, ensuring accurate cavity alignment and reliable mold performance.
Why High-Quality Mold Core Inserts Matter
Consistent Product Quality
Precision core inserts ensure uniform cavity geometry, resulting in consistent molded part dimensions and surface quality.
Improved Mold Durability
High-grade mold steels such as 1.2083 provide excellent wear resistance and corrosion protection, extending mold life.
Efficient Mold Maintenance
Modular insert structures allow worn inserts to be replaced without rebuilding the entire mold.
Higher Production Efficiency
Multi-cavity insert designs allow molds to produce multiple parts per injection cycle, improving productivity.
Flexible Mold Design
Insert-based mold construction allows easier modifications when product designs change.
What We Need for Quotation
To provide an accurate quotation for custom mold core insert blocks, please provide:
- Product 2D drawings or 3D CAD files
- Insert dimensions
- Number of cavities required
- Plastic material used for molding
- Surface finishing requirements
- Expected mold life
- Quantity required
Our engineering team will review your design and recommend the most suitable manufacturing solution.
Frequently Asked Questions
What is a mold core insert?
A mold core insert is a removable mold component used to form the internal features of plastic parts inside an injection mold.
Why is 1.2083 steel used for mold inserts?
1.2083 stainless mold steel offers excellent corrosion resistance, wear resistance, and polishability, making it suitable for precision injection molds.
Can mold core inserts be customized?
Yes. Core insert blocks can be fully customized according to product drawings, cavity layout, and mold design requirements.
What tolerance can be achieved?
Our manufacturing capability allows machining accuracy up to ± 0.005 mm.
Which industries use injection mold inserts?
Industries include plastic packaging, medical consumables, cosmetics packaging, and consumer plastic manufacturing.
