Product Details:
|
| Hardness: | HRC60 | Accuracy: | +/-0.005mm |
|---|---|---|---|
| Surface Treatment: | Polished, Tin, Ticn, Crn, Dlc | Product Name: | Thread Core |
| Quality: | High Quality | Shaping Mode: | Plastic Die Mould |
| Product Material: | Customize | Product: | Plastic Injection Mold |
| Standard: | JIS, DIN, En, ASTM, AISI | Design Software: | Autocad, Autocad/Ug/Solidworks, CAD |
| Size: | Customize | Color: | Black |
| Feature: | Durable | Usage: | Injection Plastic Mold Parts |
| Delivery Time: | 5-20 Days | ||
| High Light: | Dme Standard Brass Thread Core,Multi Cavity Injection Mold Parts,Multi Cavity Injection Mold Thread Core |
||

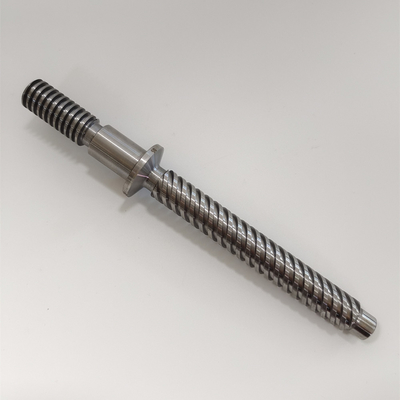

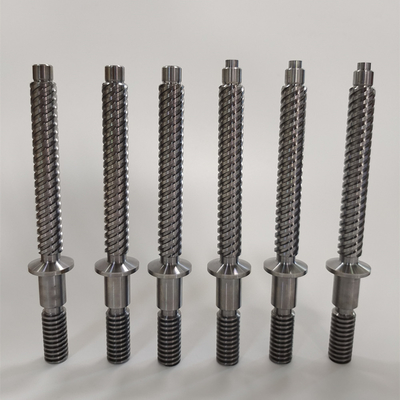

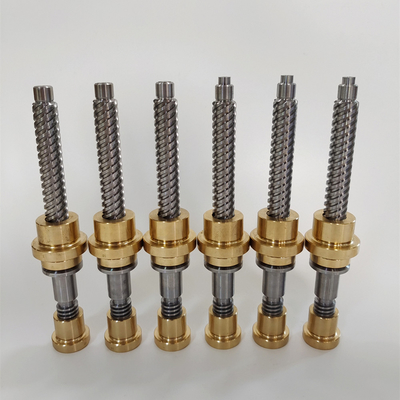

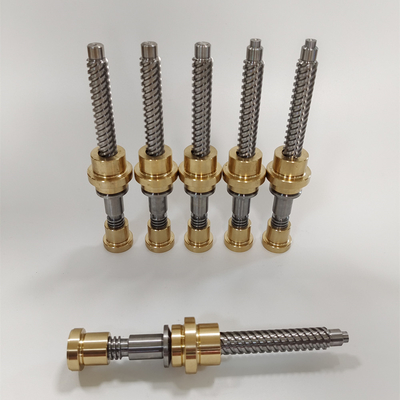

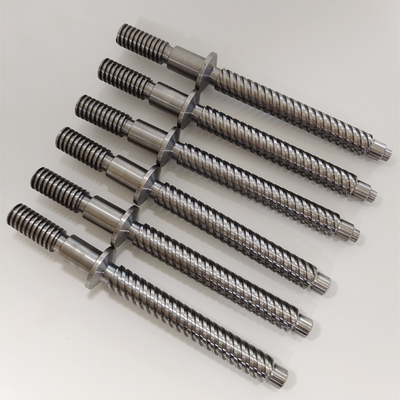

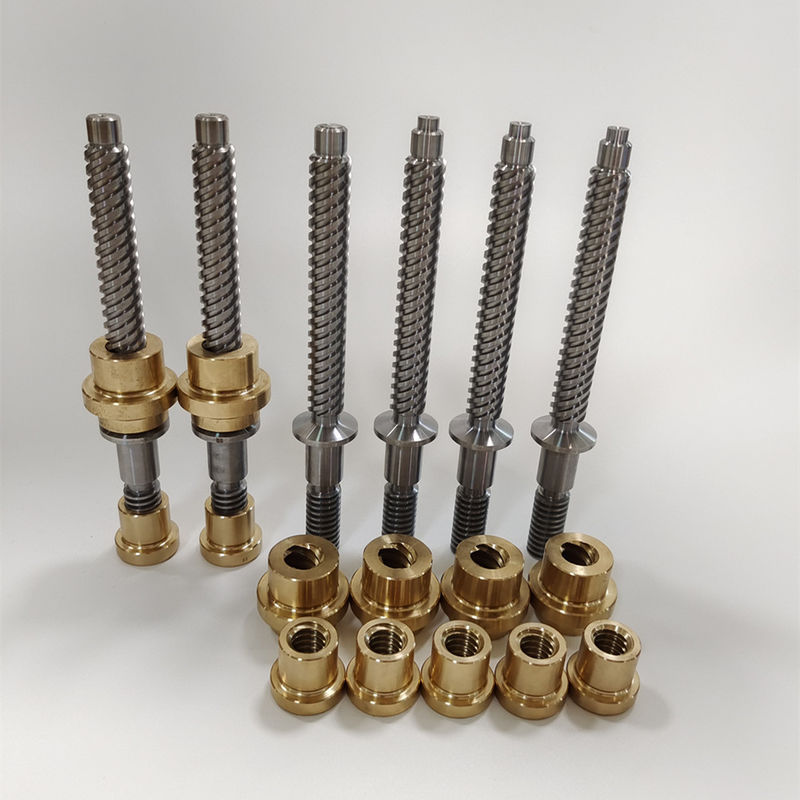

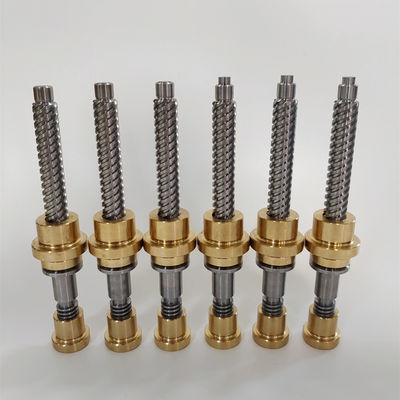

Dme Standard Certification Brass Thread Core Mould Tooling with Highly Stable for Multi Cavity Injection Mold Parts
Description Of Thread Core
Mouldings with thread Core on the outside
Mouldings with thread core on the outside can generally be made by making a mould tool with half of the thread core and half of the thread in the cavity. that way, the moulding can be removed from the tool without problem. A very thin joining line will be visible on the thread where the two halves of the tool met.
Mouldings with thread core on the inside threaded plastic moulding
However, to obtain a plastic moulding with the thread on the inside, or a moulding with the thread core on the outside where no join lines may be visible, a different process is needed. For these mouldings, a removable threaded core (or cavity, if the thread is on the outside of the moulding) is placed inside the mould tool. the polymer is injected into the mould tool and sets to create the thread. The core and the moulded part are then removed from the mould tool and the core must then be removed from the moulded part in one of the following ways
Specification:
| Product: | Best quality durable rustproof perfect tolerance toughness for threaded bottle cap collapsible core |
| Material And Design: |
100% SKD61 steel material. Standard: metric standard Product feature: standard component. Unit: metric standard. Non-standard mould accessories and other mechanism components of project are available here |
| Logo: | Custom logos can be added. |
| Size and Thickness : | Please check the following detailed pictures. |
| Color: | Metal color or other colors that you desired. |
| Packaging: | Normally: each item in foam bag or bubble bag, then put into carton box or wooden case, also we can do the packaging according to your requirements. |
| Shipment ways: | DHL, UPS, FEDEX, TNT, Sea shipping, Air shipping. |
| Delivery Time: | 3~15 Days, based on your order’s quantities and requirements. |
| MOQ: | MOQ is one piece. |
| Payment terms: | Usually T/T, Western Union, Paypal (30% deposit,70% balance before shipment). This is negotiable. |
| Trade terms: | FOB Shenzhen or other ways. |
Our Service:
1. Perfect quality product with most competitive price
2. The fastest delivery date. Fastest response after receiving your contacting
3. Free Custom design
4. OEM & ODM service, make your own logo/design and non-standard project
5. Available mix order different designs
6. Free samples
Our Commitment:
1. 100% qualified products
2. The product of 2D, 3D design services
3. 3-5 days sample time to complete
4. 100% delivery on the contract
5. The best communication service attitude
FAQ:
Q1: How Can I Get Samples ?
A: Small quantity of samples usually is free, but you need to pay for the shipping cost
Q2: How Can I Send Inquiry ?
A: When you click our products, and think that is right for you, you can directly send your information to us, or chat with us online
Q3: How Can I Order From Here?
A: After we got contacted details with each other, and confirmed the samples, you can send us the specs, confirm the order, we will make and send PI for you to confirm
Q4: When Arrange The Producing?
A: After receiving your deposit, usually 30%, we will arrange producing
