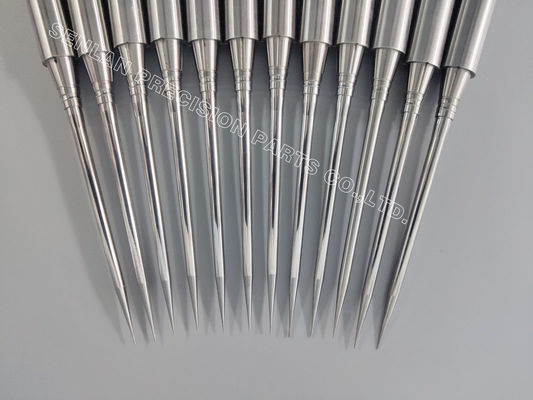

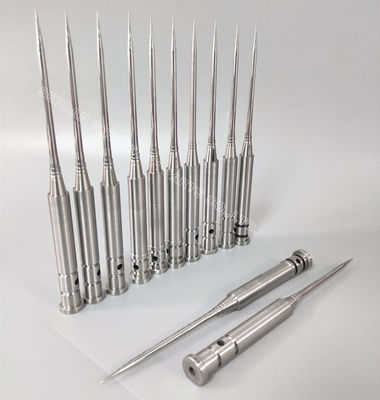

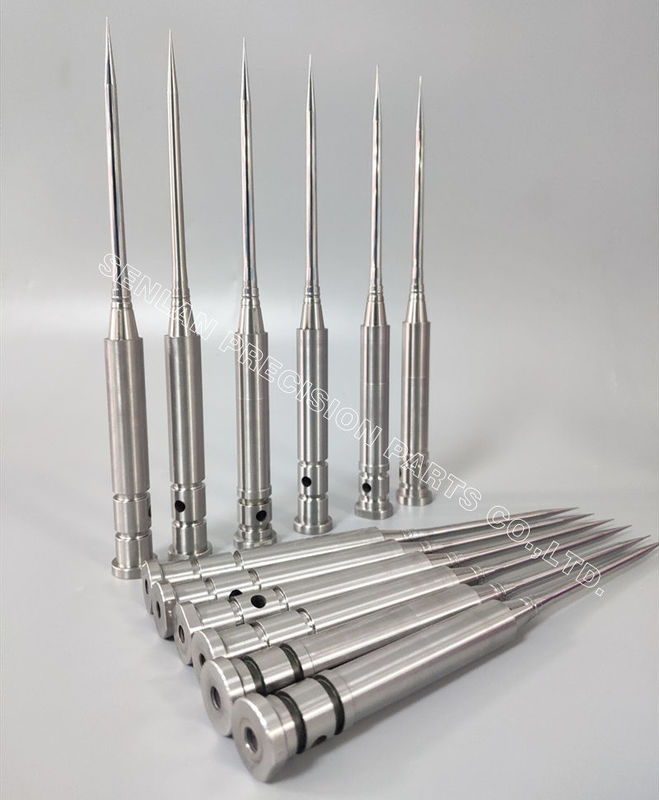

M340 Medical Core Pins for Precision Medical Injection Molds
M340 Medical Core Pins are high-precision mold components designed for medical injection molding applications that require corrosion resistance, dimensional stability, and ultra-fine feature formation. These core pins are used to create small holes, internal channels, and precision structural features in molded medical plastic components.
Product Overview
Manufactured from Bohler M340 stainless mold steel, these core pins provide excellent corrosion resistance, superior hardness, and exceptional polishability. These properties make them particularly suitable for medical injection molds that require long production cycles and strict quality standards.
M340 medical core pins are widely used in molds producing medical consumables, laboratory plastic products, pharmaceutical packaging components, and other precision medical plastic parts.
Product Features
Core pins are essential components in injection molds used to form internal geometries and precision holes in molded plastic parts. In medical injection molding, these features are often extremely small and require very high dimensional accuracy.
Because medical molds often run high-volume production with strict quality control, the core pins must maintain consistent performance under repeated thermal cycles, injection pressure, and mechanical stress.
M340 Stainless Mold Steel Advantages
- Excellent corrosion resistance
- High wear resistance
- Superior mirror polishing capability
- Stable hardness and dimensional stability
Key Product Features
- Manufactured from Bohler M340 stainless mold steel
- Excellent corrosion resistance for medical environments
- High surface polish capability for precision molding
- Suitable for precision features and precision holes
- Stable performance in high-cycle injection molding
- Custom diameters, lengths, and head structures available
- Machining tolerance up to ±0.005 mm
Applications
M340 medical core pins are widely used in precision medical injection mold tooling where corrosion resistance and dimensional accuracy are essential.
Medical Consumable Molds
Used in molds producing disposable medical plastic components such as connectors, caps, and small functional parts.
Laboratory Plastic Products
Applicable in molds producing laboratory consumables such as test tubes, diagnostic parts, and precision plastic components.
Pharmaceutical Packaging Components
Used for molding precision plastic parts used in pharmaceutical packaging systems.
precision Injection Molding
Suitable for molds forming precision holes and fine internal plastic structures.
High-Cavity Medical Injection Molds
Ensures stable dimensional accuracy and consistent performance in multi-cavity mold systems.
Precision & Manufacturing Capabilities
- High-precision CNC turning and milling
- Precision grinding and precision machining
- High-quality mirror polishing
- Professional vacuum heat treatment
- Precision inspection using advanced measuring equipment
- Machining tolerance up to ±0.005 mm
Special attention is given to surface finish, straightness, and concentricity, which are critical for high-precision core pins used in medical injection molds.
Reliable Mold Performance for Medical Production
Corrosion Resistance for Medical Environments
M340 stainless mold steel resists corrosion caused by humidity, cleaning chemicals, and aggressive plastics used in medical production.
High Surface Quality
Excellent polishability helps achieve smooth plastic surfaces and improves molded part quality.
Stable Dimensional Accuracy
Precision machining ensures consistent performance during long production cycles.
Long Mold Component Life
High wear resistance reduces maintenance frequency and extends mold component service life.
Suitable for High-Precision Medical Molds
M340 medical core pins support reliable performance in complex medical injection mold systems.
What We Need for Quotation
To provide an accurate quotation for custom M340 medical core pins, please provide:
- 2D drawings or 3D CAD files
- Required core pin diameter and length
- Tolerance requirements
- Surface finishing or polishing requirements
- Material specification (M340 or equivalent)
- Quantity required
- Mold application details
Our engineering team will review your drawings and provide the most suitable manufacturing solution.
Frequently Asked Questions
What is the function of core pins in medical injection molds?
Core pins are used to create internal holes, channels, and structural features inside molded plastic medical components.
Why use M340 steel for medical mold components?
M340 stainless mold steel provides excellent corrosion resistance, high hardness, and superior polishability, making it suitable for medical injection molds.
Can medical core pins be customized?
Yes. Diameter, length, head structure, surface finish, and tolerances can all be custom manufactured based on mold drawings.
What machining tolerance can be achieved?
Our machining capability allows precision tolerances up to ±0.005 mm for medical mold components.
Are these core pins suitable for high-cavity molds?
Yes. M340 core pins are designed to maintain stable dimensional accuracy in multi-cavity medical injection molds.
Need High-Precision Core Pins for Medical Injection Molds?
Our engineering team specializes in manufacturing precision stainless mold components for medical injection molds, including custom M340 core pins.
Send us your technical drawings or CAD files, and we will provide:
- Engineering feasibility evaluation
- Precision manufacturing solutions
- Reliable production lead times
Contact us today to discuss your medical mold tooling requirements.
