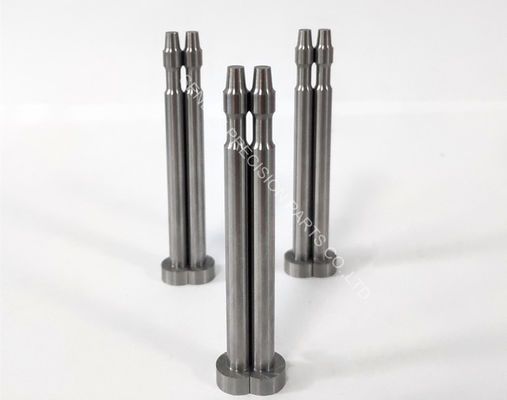

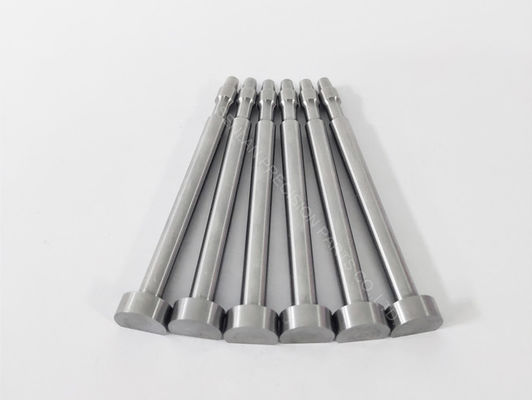

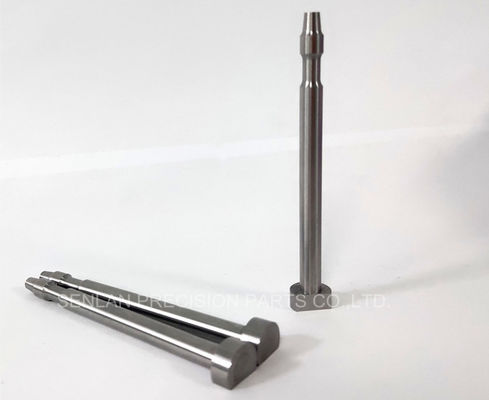

Configurable Tip Diameter Length SKD61 Stepped Core Pins for Progressive Die Ejector

Configurable Tip Diameter Length SKD61 Stepped Core Pins for Progressive Die Ejector
Configurable Tip Diameter Length SKD61 Stepped Core Pins for Progressive Die Ejector Configurable Tip Diameter Length SKD61 Stepped Core Pins for Progressive Die Ejector Configurable Tip Diameter Length SKD61 Stepped Core Pins for Progressive Die Ejector

Large Image :  Configurable Tip Diameter Length SKD61 Stepped Core Pins for Progressive Die Ejector

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Model Number: SL007
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated With Anticorrosive Oil , Packed In Carton Box
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000pcs/week

Configurable Tip Diameter Length SKD61 Stepped Core Pins for Progressive Die Ejector

Description
Product Name: Mold Core Pins Product Material: SKD61
Accuracy: +/-0.005mm Surface Treatment: Polished, Tin, Ticn, Crn, Dlc
Hardness: 48-52HRC Design Software: Autocad, Autocad/Ug/Solidworks, CAD
Size: Customized Quality: High Quality
Usage: Automotive/Dialy Packing Mold
High Light:

SKD61 Stepped Core Pins

,

Progressive Die Ejector Core Pins

 Configurable Tip Diameter And Length Wear Resistance SKD61 Stepped Core Pins For Progressive Die Ejector



Ejector pins are the bouncers of the injection moulding world. They apply a force to eject a part from the mold, and in some cases can leave marks. Once the mold is opened, the pins extend into the mold cavity, push the part out, and then retract, allowing the mold to close and be refilled.
They are also known as Nitride H13 pins, are much harder pins than the through hard pins, and are suitable for die casting ejection system in mold. Case hardened pins are nitrated to 65-70HRC and can withstand temperatures above 200°C.



SENLAN manufactures a full line of standard and customized ejector pins,punches,insert pins ,cavity pins,core pins,mold core, and other mould accessories and die parts etc.



Product Description:

Material
SKD61 SKH51 SUJ2 Stainless steel
Process
CNC turning,CNC lathe machining, CNC boring;CNC milling, CNC grinding;

  Size

Non Standard and customers design
Heat treatment
Available
Surface Work
Nitriding Polishing Hardness anodizing black/clear, steel oxidizing dark-blue, electro-polishing, electroless nickel plating, silver plating, golden plating etc
Tolerance
 +/ - 0.005mm
Main equipment
Machining center, CNC, Lathe, Turning machine, Milling machine, Drilling machine, Internal and external grinding machine, Cylindrical grinding machine, Wire cutting machine etc.
Testing facility
Coordinate measuring machine, projector,  hardness tester, concentricity tester. Height tester



Our Advantage:

1. With More Than 15 Years Experience In Precsion Core Pins Cavity And Pins Insert Pins
2. OEM, ODM And Non Standard Service Are Available
3. Delivery On Time Promised In Contract
4. Prefect Quality Control System
5. Free Sample provided
6. Without MOQ required
7. Instant Communication with 12 hours
8. Exact Tolerance Same As The Required



Delivery:

delivery time is usually 6-10days for type oF ejector pin and sleeve, specific time is according to quantity and drawing.



Shipping:

We ship using express such as DHL, UPS, FEDEX etc. or according to customer's requirement . It takes about 3days to arrive your front door, and proof of shippments are provided with a shipping or tracking number.

And we ship by occean shippment for larger quantity items, it will be economic for customers.



payment:

TT and Western union payment or according to negotiation of both parties.





FQA:

Q1: How Can I Get The Quotation?
A: Please send us information for quote: drawing, material, weight, quantity and request.



Q:How can you guarantee quality?

A:Advanced Machine Equipment+ Mature Technology,Skilled Workers ensure the quality of our products. Also our QC Department will check each piece before every shipment.



Q:After-sale Service?

A: Contact us if you have any question after receiving the samples or products, we’ll try our best to solve the problem until you are satisfied!
