Hardened Steel Core Plates (P20/H13/S136) | Custom CNC Machined Mold Bases

Product Overview

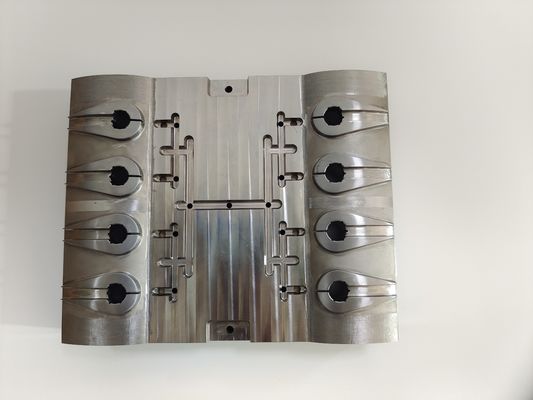

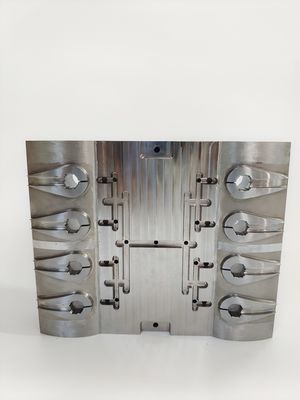

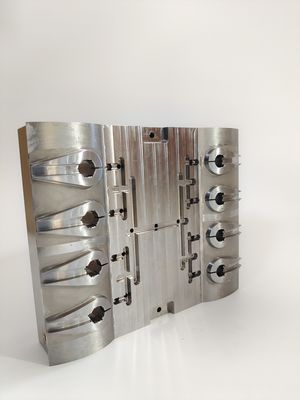

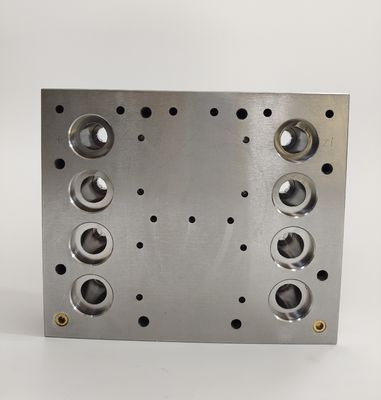

The custom precision non-standard mould core plate is a key structural component in plastic injection molds, responsible for supporting and positioning core inserts with high dimensional stability. Manufactured by Senlan Precision, these core plates are produced strictly according to customer drawings, ensuring accurate alignment, structural rigidity, and long-term performance in high-cycle molding applications.

(≈70 words)

Key Features & Technical Advantages

• Non-Standard Custom Design
  Fully manufactured based on customer drawings, tolerances, and mold structure requirements.

• High Dimensional Accuracy
  Precision machining ensures flatness, parallelism, and positional accuracy.

• Stable Structural Support
  Designed to maintain mold alignment under continuous injection pressure.

• Material Flexibility
  Available in various tool steels and pre-hardened steels as specified.

• Optimized for Multi-Cavity Molds
  Suitable for complex core layouts and high-output mold configurations.

Application Fields / Industry Use

• Bottle & Container Injection Molds
  Core plate structures supporting internal forming components.

• Cap, Closure & Dispensing Molds
  Precision alignment for threaded and functional mold cores.

• Medical & Laboratory Plastic Molds
  Molds requiring stable geometry and repeatable part quality.

• High-Cycle Plastic Injection Tooling
  Applications demanding long service life and dimensional consistency.

Mould Structure & Design Description

The mould core plate serves as the primary mounting and positioning base for core inserts and core pins within the injection mold. Its design focuses on flatness, rigidity, and precise hole positioning to ensure correct cavity alignment. Structural considerations include load distribution, thermal deformation control, and ease of maintenance for complex or multi-cavity mold assemblies.

Manufacturing Capability & CNC Machining

Senlan Precision operates a dedicated precision machining facility equipped with internationally recognized CNC equipment:

• MAKINO (Japan) high-precision CNC machining centers

• HARDINGE (USA) CNC turning machines

• Precision surface grinding and EDM equipment

Machining Capability Highlights

• Tolerance control down to ±0.002 mm

• High flatness and parallelism consistency

• Stable machining for large-size and thick core plates

• Controlled process flow for repeatable quality

Customization & OEM Cooperation Process

All mould core plates are supplied under a Built-to-Print / OEM manufacturing model:

1. Drawing & Technical Review
   Evaluation of material, tolerances, and structural requirements.

2. Process Planning
   Machining route and stress-control strategy defined.

3. Precision CNC Machining
   Milling, drilling, grinding, and finishing operations.

4. Dimensional Inspection
   Flatness, hole position, and overall geometry verification.

5. Packaging & Export Delivery
   Secure packing with full inspection records.

Quality Control & Export Experience

• Raw material verification and traceability

• In-process inspection at critical machining stages

• Final dimensional inspection prior to shipment

• Experience supporting international mold manufacturers and tooling suppliers

Quality control focuses on structural accuracy and long-term mold stability, not cosmetic appearance.

Related Products

• Mold Core Inserts for Plastic Injection Molds

• Mold Cavity Plates and Insert Plates

• Precision Mold Base Components

• Core Pins and Ejector System Components

FAQ – Technical & Purchasing

Q1: Are these mould core plates standard items?
No. All core plates are non-standard and manufactured strictly to customer drawings.

Q2: Can large-size core plates be machined accurately?
Yes. Equipment and process control support high flatness and positional accuracy.

Q3: Do you support multi-cavity mold structures?
Yes. Designs for complex and high-cavity molds are fully supported.

Q4: Can material and heat treatment be specified by the customer?
Yes. Material grade and treatment follow customer technical requirements.

Request a Quote

To receive a quotation for Custom Precision Non-Standard Mould Core Plates for Plastic Injection Molds, please submit your drawings and technical specifications to Senlan Precision.

Our engineering team will evaluate your requirements and provide a precision-driven, stable core plate solution aligned with your mold design.
