Precision Multi-Cavity Mold Cavity Plate for Injection Mold Tooling
The Precision Multi-Cavity Mold Cavity Plate is a critical component used in plastic injection mold tooling to form the external surfaces of molded plastic parts. Designed for high-precision manufacturing, this cavity plate contains multiple cavities that allow several plastic components to be produced simultaneously during each injection cycle.
Manufactured from premium mold steels such as STAVAX, 1.2083, or stainless tool steel, the cavity plate offers excellent corrosion resistance, durability, and superior surface finishing capabilities. These characteristics make it suitable for high-volume production molds used in industries such as packaging, medical consumables, and consumer plastic products.
The multi-cavity configuration increases production efficiency while maintaining consistent product quality across all cavities, making it an essential component for modern injection mold systems.
Product Description
A mold cavity plate is the cavity-side component of a plastic injection mold that forms the outer geometry and surface features of plastic products. It works together with the core side of the mold to create the final molded part.

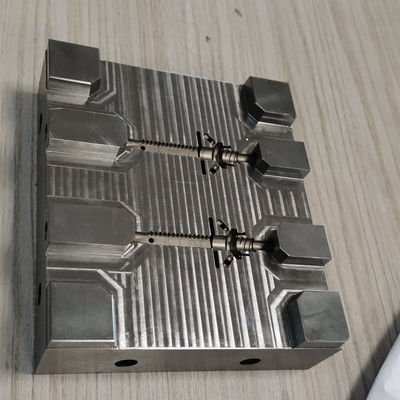

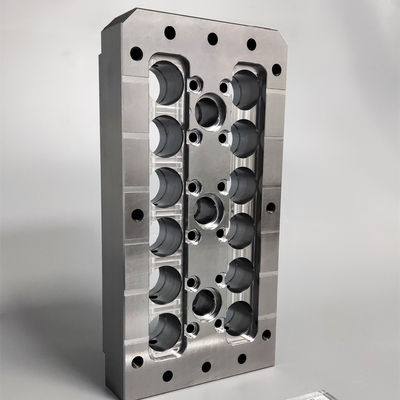

The precision cavity plate shown features a multi-cavity layout, enabling efficient mass production by molding multiple parts in a single injection cycle. The cavity surfaces are carefully machined to ensure accurate product dimensions and excellent surface finish.
Key Features
- Multi-cavity design for high production efficiency
- Precision-machined cavity surfaces for accurate molding
- Integrated runner and gate system for balanced material flow
- Replaceable insert-style construction for easy mold maintenance
- High corrosion resistance for long mold life
- Compatibility with various injection molding materials
Applications
Plastic Packaging Molds
Used in molds producing packaging products such as plastic lids, caps, containers, and cosmetic packaging components.
Medical Consumable Molds
Applicable in molds manufacturing disposable plastic medical parts and laboratory plastic components.
Consumer Plastic Products
Suitable for producing small precision plastic parts used in household and consumer products.
Multi-Cavity Injection Mold Systems
Ideal for high-volume production molds where multiple parts are molded in a single injection cycle.
Precision & Manufacturing Capabilities
Manufacturing high-quality mold cavity plates requires advanced machining technology and strict quality control. Our machining tolerance for precision mold components can reach ± 0.005 mm, ensuring accurate cavity alignment and stable mold performance.
Our Manufacturing Capabilities
- High-precision CNC milling and machining
- Precision cavity milling and surface finishing
- Grinding and dimensional correction
- Advanced runner and gate machining
- Heat treatment for improved hardness and durability
- Surface polishing and finishing
- Comprehensive inspection using precision measuring equipment
Why Precision Mold Cavity Plates Matter
Consistent Product Quality
High-precision cavity surfaces ensure uniform plastic filling and consistent product dimensions across all cavities.
Higher Production Efficiency
Multi-cavity designs allow manufacturers to produce several parts in a single molding cycle, significantly improving productivity.
Longer Mold Life
Using high-quality mold steel enhances wear resistance and corrosion protection, extending the service life of the mold.
Easier Mold Maintenance
Replaceable cavity plates simplify mold repair and maintenance, reducing downtime and maintenance costs.
Improved Surface Finish
Precision machining and polishing ensure smooth cavity surfaces, resulting in high-quality molded plastic products.
What We Need for Quotation
To provide an accurate quotation for custom mold cavity plates, please provide the following information:
- Product 2D drawings or 3D CAD files
- Number of cavities required
- Mold steel preference (STAVAX, 1.2083, SS420, etc.)
- Plastic material used for molding
- Surface finish requirements
- Expected mold life
- Quantity required
Our engineering team will review your requirements and provide a tailored manufacturing solution.
Frequently Asked Questions
What is a mold cavity plate?
A mold cavity plate is the cavity-side component of an injection mold that forms the outer surface of molded plastic parts.
What materials are typically used for cavity plates?
Common materials include STAVAX, 1.2083, and SS420 stainless mold steels, which offer excellent corrosion resistance and polishability.
Why use multi-cavity molds?
Multi-cavity molds increase manufacturing efficiency by producing multiple plastic parts in each injection cycle, reducing overall production costs.
Can cavity plates be customized?
Yes. Mold cavity plates can be fully customized according to product design, mold structure, and production requirements.
What industries use mold cavity plates?
Industries include plastic packaging, medical consumables, cosmetic packaging, and consumer plastic manufacturing.
Engineering Version
Developing a new injection mold or upgrading existing mold tooling? Our engineering team specializes in manufacturing precision mold cavity plates and custom mold components for high-performance injection molds.
Send us your drawings or technical specifications, and we will help you develop a reliable and efficient mold component solution for your project.
