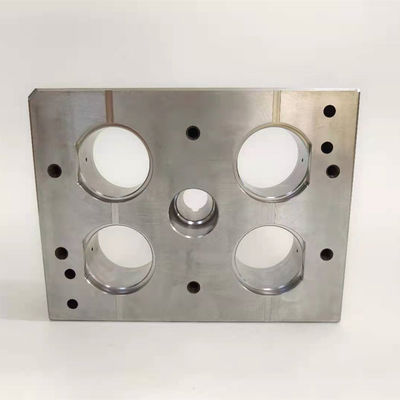

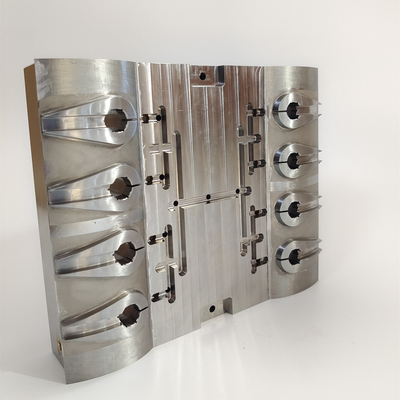

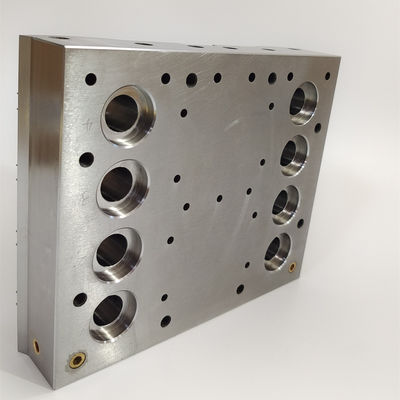

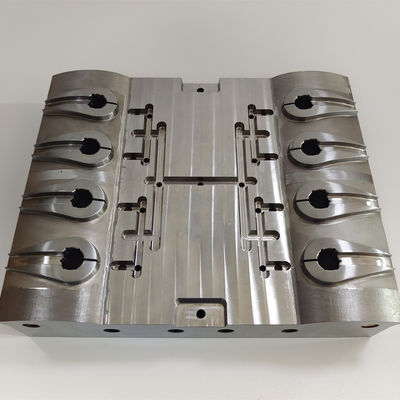

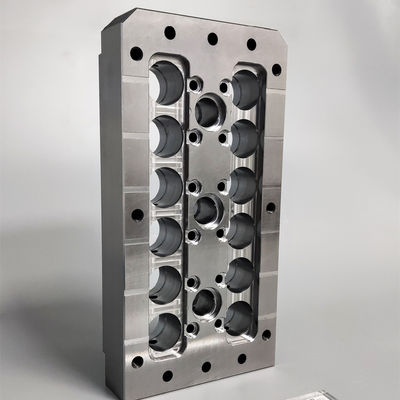

Custom High Hardness Single Cavity Mold Core
Precision-engineered low tolerance mold insert specifically designed for cosmetic injection molding applications, featuring exceptional hardness and dimensional stability.
Application Description
A steel device that molds materials into specific shapes, where the section engaged in opening/closing movement is called a core plate. This rear-side component typically leaves traces on parts due to ejector pin mechanisms that push finished components out of the mold.
The rear half of the injection mold mounts to a movable platen that slides along tie bars, creating the negative image of the desired part that appears on the rear side above the parting line during injection molding. The cavity steels contain the gate and typically a portion of the runner system.
Specifications
| Material |
Steel: HSS, ASP23, Carbon steel, ASSAB Steel, 1.2379, Q235, 1.2842, C45# etc.
Stainless Steel: 303 / 304 / 316 / 416 / etc.
Aluminum: AL7075, AL6061, AL5052 etc.
Titanium: Grades 1-4, Grade 5, Grade 9 etc.
Tungsten Carbide: YG6, YG6X, YG8, YG8x, YG8A, YG8N, YG10, YG13X, YG13, YG15X, YG15, YG18X, YG18, YG20 etc.
Other Materials: Brass, Copper, Bronze etc.
Plastic: ABS, PC, PE, POM, Delrin, Nylon, Teflon, PP, PEI, Peek etc.
|
| Surface Treatment |
Polishing, Sandblasted, Anodizing, Chrome plating, Zinc plating, Nickel plating, Laser engraving, PVD coating etc. |
| Our Equipment |
6 sets CNC Machining Center, 4 sets CNC AUTO Lathe Machine, 4 sets CNC Milling Machine, 4 sets Drilling Machine, 8 sets Grinding Machine, 4 sets EDM Wire Cutting etc. |
| Inspection Equipment |
2 sets Japan Projector, 1 set Microscope, 2 sets 2D Projection, 4 sets Height gauge, 8 sets Micrometers, 6 sets vernier caliper, 10 pcs Plug Thread Gages, 10 pcs Ring Thread Gages etc. |
| Accuracy |
Machining: ±0.005mm
Grinding: ±0.005mm
Surface Roughness: Ra0.4
Parallelism: 0.01mm
Verticality: 0.01mm
Concentricity: 0.01mm
|
| Surface Roughness |
Ra0.1-Ra3.2 (Customizable options available) |
| Lead Time Guarantee |
1% compensation per day delay beyond estimated delivery date, up to maximum 10% |
| Quality Control |
Strict IQC → PQC → OQC process |
Key Features
- High quality with competitive pricing
- Excellent customer service and communication
- Advanced manufacturing technology
- Extensive export experience
- Highly qualified and dedicated team
Quality Assurance
Hooleamould utilizes world-class production equipment with tolerances of ±0.01mm, certified mold steel materials, and over 20 years of mold manufacturing expertise.
Our Services
Before Sales Service
- 24-hour online consultation
- Sample support
- Detailed technical 2D and 3D drawing design
- Complimentary hotel/airport pickup for factory visits
- Quick professional response on quotations and technical inquiries
Production Period Service
- Technical drawing submission for verification and discussion
- Quality inspection reports
- Installation solutions and maintenance instructions
After Sales Service
- Usage guidance and remote assistance
- 15-year quality guarantee
- Free replacement for any quality issues
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with our own production facilities.
Q: What is the order process?
A: Detailed request → Quotation → Payment confirmation → Drawing approval → Production → Quality checking → Packaging → Delivery → After-sales service → Repeat orders
Q: How can I pay for my order?
A: We accept Bank Transfer, Western Union, Paypal, Payoneer, and Alibaba Trade Assurance.
Q: What shipping methods are available?
A: Most shipments use international express carriers (DHL, UPS, FedEx, TNT) with 3-4 day delivery. Sea freight options are also available.
Q: Can you accommodate urgent orders?
A: Yes, we can adjust our production schedule to accommodate urgent requirements.
Q: Can we sign an NDA to protect our designs?
A: Absolutely. We respect client confidentiality and are willing to sign non-disclosure agreements.
