Custom Multi-Cavity Mold Insert Plate (±0.01 mm)

Product Name

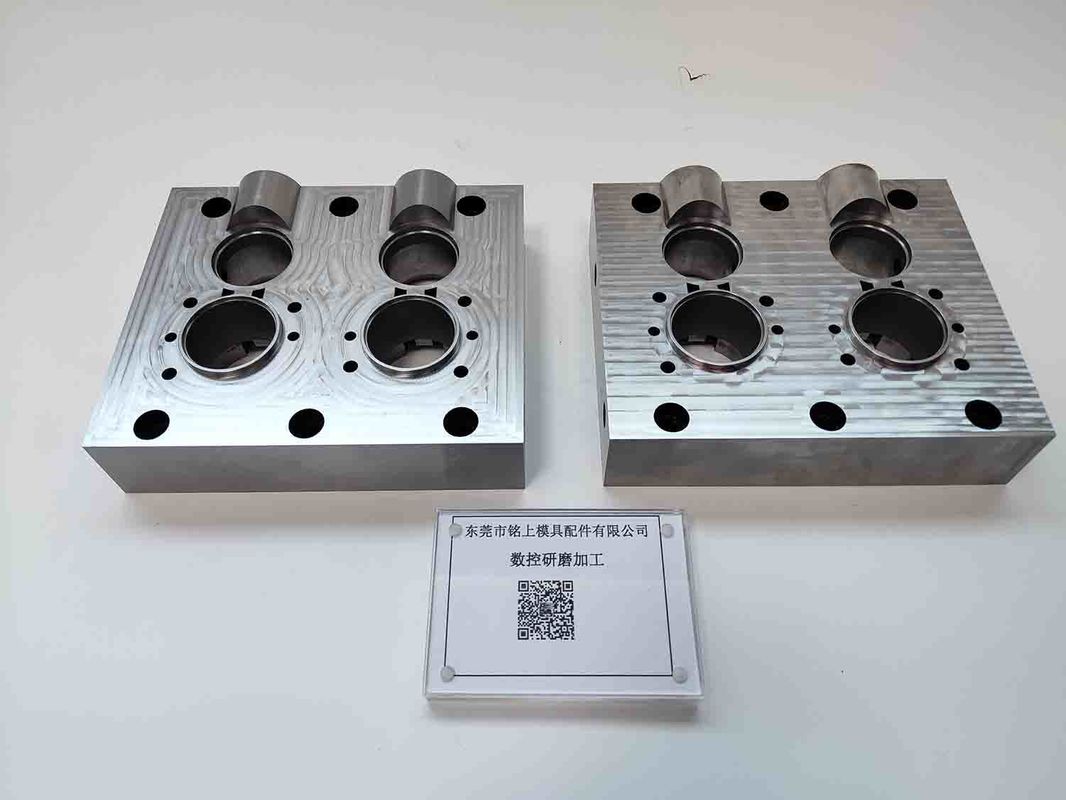

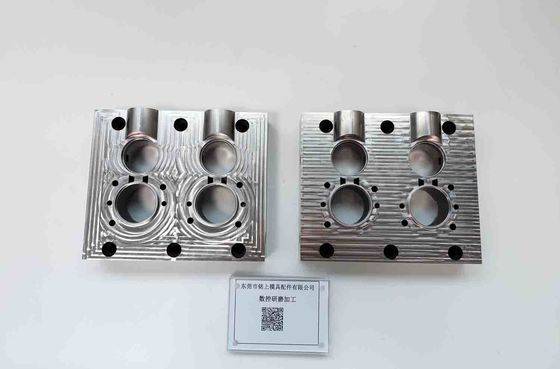

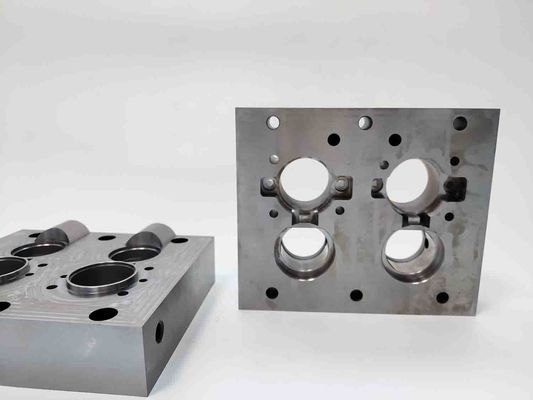

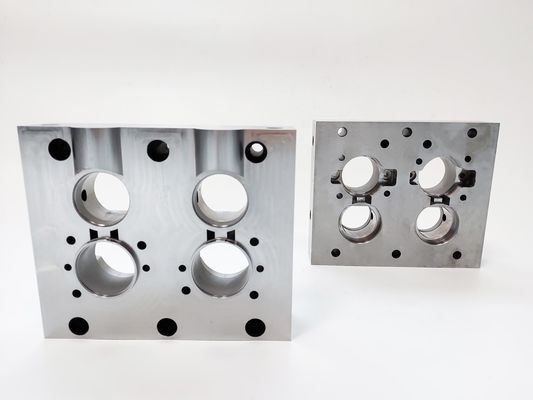

Multi-Cavity Mold Insert Plate / Injection Mold Cavity Mounting Plate

What Is This Product?

This is a precision-machined steel plate used inside plastic injection molds.
It supports and positions cavity inserts in multi-cavity mold systems.

It provides:

• Stable cavity mounting

• Accurate positioning

• Consistent cavity height

• Reliable assembly reference

In multi-cavity molds, this plate directly affects mold accuracy and production stability.

Used In

This component is commonly used in:

• Multi-cavity injection molds

• Cap & closure molds

• PET preform molds

• Packaging molds

• Medical and cosmetic molds

Suitable for both high-output and precision mold systems.

Precision Capability

• Machining tolerance: ±0.01 mm

• CNC milling + precision surface grinding

• Manufactured strictly according to customer drawings

Supported Projects

We support:

• New mold development

• Mold repair & replacement parts

• Engineering modifications

• Urgent maintenance components

All parts are custom-made based on drawings.

Why It Matters

In multi-cavity molds, small dimensional differences can cause:

• Difficult assembly

• Uneven cavity alignment

• Production instability

• Extra fitting work

• Longer downtime

With controlled precision up to ±0.01 mm, our insert plates help:

• Improve cavity consistency

• Reduce fitting time

• Increase mold stability

• Lower maintenance risk

• Improve production reliability

What We Need for Quotation

To provide a fast and accurate quote, please send:

1. 2D drawing (PDF)

2. 3D file (STEP/STP if available)

3. Material requirement

4. Quantity

5. Project type (new mold or repair)

6. Required delivery time

More complete information = faster quotation.

FAQ

Q1: Can you support mold repair projects?
Yes. We support both new mold and repair/replacement parts.

Q2: What tolerance can you achieve?
Up to ±0.01 mm depending on structure.

Q3: Can you manufacture non-standard parts?
Yes. All products are fully custom-made.

Q4: Can you support urgent orders?
Yes, subject to production schedule confirmation.

Q5: Who usually works with you?
Tooling engineers, purchasing managers, project managers, and maintenance teams.

Request a Quote

Send us your drawing and project details.
We provide custom multi-cavity mold insert plates with precision up to ±0.01 mm.

Start Your Project Today.
