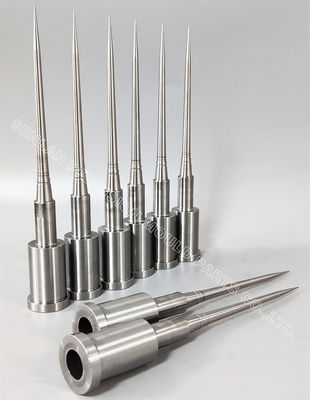

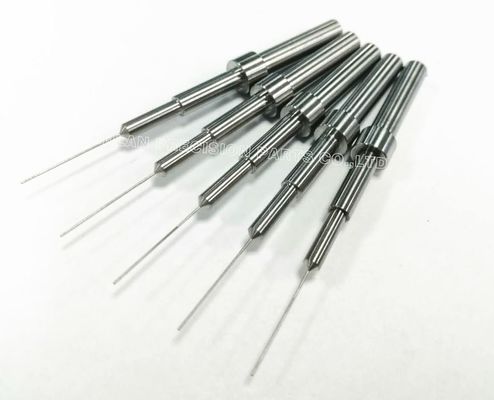

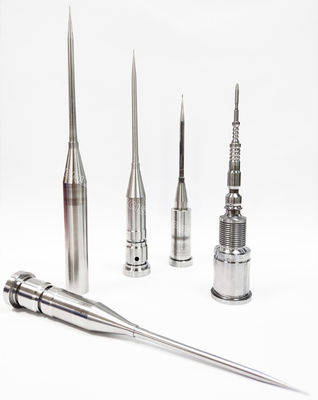

Medical Grade Gas Vent Core Pins | High-Hardness Steel Rubber Tooling Components

Product Overview

High-hardened steel core pins with integrated gas venting are precision mold components designed for medical cavity rubber tooling and injection molds requiring controlled venting, dimensional stability, and wear resistance. Manufactured through precision CNC machining and controlled heat treatment, these core pins support stable cavity filling and reliable demolding. All parts are custom produced strictly according to customer drawings and technical specifications.

Key Features & Technical Advantages

• High-hardened tool steel for wear resistance and long service life

• Integrated gas vent design to improve air evacuation and filling stability

• Precision CNC machining for accurate pin geometry and vent features

• Stable dimensional performance under repeated molding cycles

• Consistent surface quality for reliable demolding

• Suitable for multi-cavity medical tooling environments

• Fully customized / OEM / Built-to-Print manufacturing

Applications & Industries

These core pins are widely used in:

• Medical cavity rubber tooling

• Injection molds for medical packaging components

• Precision molds requiring controlled venting

• Multi-cavity molds with strict quality requirements

They are particularly suitable for applications where gas evacuation, surface integrity, and repeatable molding performance are critical.

Mold Structure & Design Description

High-hardened core pins with gas vents are installed on the core side of molds to form internal features while allowing trapped air or gas to escape during filling.
Key design considerations include:

• Accurate pin geometry and vent channel positioning

• Controlled vent size to balance air release and material flow

• Proper alignment with cavity inserts

• Structural stability under molding pressure

All components are designed and manufactured strictly according to customer drawings to ensure correct mold assembly and stable operation.

Manufacturing Capability & CNC Machining

Senlan Precision manufactures gas-vented core pins using advanced CNC machining and precision finishing technologies.
Our facilities are equipped with high-precision machining centers and CNC systems from MAKINO (Japan) and HARDINGE (USA), enabling:

• High-accuracy CNC turning and milling

• Precise machining of vent channels and micro-features

• Stable tolerance control after heat treatment

• Consistent surface finish across production batches

Machining routes are optimized based on geometry, vent design, and tooling requirements.

Custom Manufacturing & OEM Cooperation

We specialize in custom manufacturing and OEM cooperation, supporting:

• Built-to-Print production from 2D drawings or 3D models

• Customized vent structures, pin sizes, and hardness levels

• Flexible material and heat treatment selection

• Small-batch prototyping and volume production

• Long-term supply of replacement and spare mold components

Clear technical communication is maintained throughout the project.

Quality Control & Export Experience

With over 20 years of experience in exporting precision mold components, Senlan Precision applies a structured quality control system:

• Incoming material inspection and traceability

• In-process dimensional and vent feature inspection

• Hardness and surface verification

• Final inspection prior to shipment with complete documentation

We are familiar with international quality requirements and professional engineering communication standards.

Related Mold Components

• Precision mold core pins

• Gas-vented mold inserts

• Medical mold cavity inserts

• Multi-cavity mold spare parts

All related products are available on a custom manufacturing basis.

Technical FAQ

Q1: Are these core pins manufactured strictly according to drawings?
Yes. All core pins are produced strictly based on customer-provided drawings and technical specifications.

Q2: What is the function of the gas vent in core pins?
The gas vent allows trapped air to escape during filling, improving cavity filling stability and surface quality.

Q3: Can hardness levels be customized?
Yes. Hardness can be adjusted based on material selection and application requirements.

Q4: Can replacement core pins be manufactured for existing molds?
Yes. Replacement and interchangeable core pins can be manufactured to match existing mold designs.

Request a Quotation

For pricing, lead time, or technical discussion regarding high-hardened steel core pins with gas vent for medical cavity rubber tooling, please provide your drawings or technical specifications.
Our engineering team will review your requirements and provide a professional quotation accordingly.
