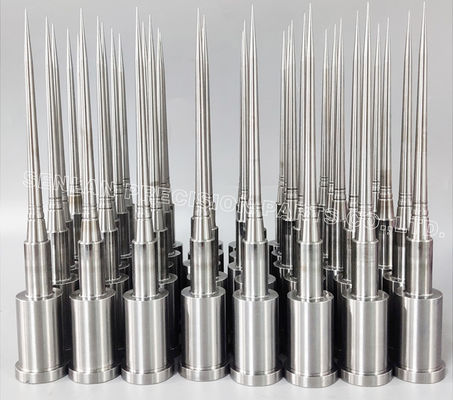

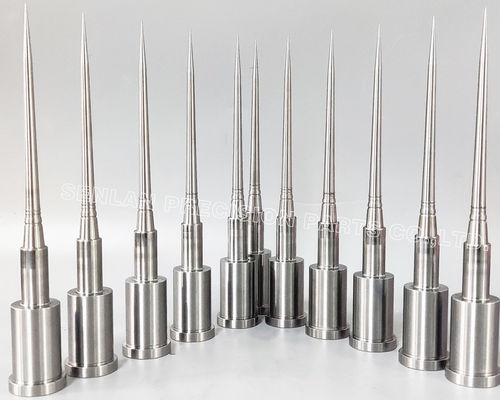

STAVAX Micro Core Pins for Thin-Wall Medical Injection Molds
Product Overview
STAVAX Micro Core Pins are ultra-precision mold components designed for thin-wall medical injection molding applications that require extremely small core diameters and high dimensional stability. These pins are primarily used to form micro holes, narrow channels, and fine internal structures in medical plastic components.
Manufactured from STAVAX ESR stainless mold steel, these micro core pins provide excellent corrosion resistance, superior polishability, and stable mechanical properties during high-cycle injection molding production. Their ultra-fine geometry enables molds to produce micro-scale plastic features with consistent accuracy and surface quality.
STAVAX micro core pins are widely used in thin-wall medical consumable molds, laboratory plastic molds, and high-precision micro injection molding tools.
Product Description
Thin-wall medical plastic products often contain extremely small holes or narrow internal channels. To form these features, molds require micro core pins with very small diameters and excellent straightness.
Because these pins operate under high injection pressure and repeated thermal cycles, both material quality and machining precision are critical.
STAVAX ESR stainless mold steel is widely used in medical mold tooling due to its:
- Excellent corrosion resistance
- Superior polishability
- High dimensional stability
- Good wear resistance for long production cycles
Our STAVAX micro core pins are produced using advanced precision turning, micro grinding, and fine polishing processes to achieve ultra-small diameters while maintaining structural strength and stability.
Key product features include:
- Manufactured from STAVAX ESR stainless mold steel
- Designed for micro feature formation in thin-wall molds
- Excellent corrosion resistance for medical environments
- Ultra-smooth surface finish for high-quality molding
- High straightness and dimensional stability
- Suitable for micro injection molding and high-cavity molds
- Custom diameters, lengths, and head structures available
- Machining tolerance up to ± 0.005 mm
These features ensure reliable performance in precision medical injection mold systems operating at high production volumes.
Applications
STAVAX micro core pins are primarily used in thin-wall medical injection molds and micro precision plastic molding tools.
Thin-Wall Medical Consumable Molds
Used for molds producing lightweight medical plastic parts with very thin wall structures.
Laboratory Plastic Components
Applicable in molds producing diagnostic consumables, micro plastic tubes, and small laboratory parts.
Micro Plastic Injection Molding
Ideal for molds forming micro holes or narrow internal channels.
Pharmaceutical Packaging Components
Used in molds producing small precision plastic components for pharmaceutical packaging.
High-Cavity Medical Injection Molds
Ensures stable micro-feature production across multi-cavity molds.
Precision & Manufacturing Capabilities
We manufacture high-precision medical mold components using advanced equipment and strict inspection standards.
Our capabilities include:
- High-precision CNC turning and micro machining
- Micro grinding for ultra-small diameters
- Precision mirror polishing
- Professional vacuum heat treatment
- Precision measurement and inspection systems
- Machining tolerance up to ± 0.005 mm
Special attention is given to pin straightness, concentricity, and surface finish, which are critical for micro core pins used in thin-wall injection molds.
Precision Micro Features for Thin-Wall Medical Molds
Ultra-Small Feature Formation
Micro core pins allow molds to create very small holes and internal channels required in medical plastic components.
Improved Surface Quality
Mirror-polished STAVAX material helps produce smooth molded surfaces and reduces friction during demolding.
High Corrosion Resistance
STAVAX ESR stainless steel protects mold components from corrosion caused by moisture or aggressive plastics.
Stable High-Volume Production
Precision machining ensures consistent micro feature accuracy across long production runs.
Extended Mold Component Life
Wear-resistant stainless mold steel improves durability and reduces maintenance frequency.
What We Need for Quotation
To provide an accurate quotation for custom STAVAX micro core pins, please provide:
- 2D drawings or 3D CAD files
- Required core pin diameter and length
- Tolerance requirements
- Surface finishing requirements
- Material specification (STAVAX or equivalent)
- Quantity required
- Mold application details
Our engineering team will review your drawings and provide suitable manufacturing recommendations.
Frequently Asked Questions
What are micro core pins used for in medical injection molds?
Micro core pins are used to create very small holes, thin channels, or internal features in molded plastic medical parts.
Why is STAVAX steel used for medical mold components?
STAVAX ESR stainless mold steel provides excellent corrosion resistance, high polishability, and stable performance, which are important for medical injection molds.
Can micro core pins be customized?
Yes. Diameter, length, head structure, and surface finishing can be custom manufactured according to mold drawings.
What tolerance can you achieve?
Our precision machining capability allows tolerances up to ± 0.005 mm for micro mold components.
Are these pins suitable for thin-wall molds?
Yes. STAVAX micro core pins are specifically designed for thin-wall medical injection molding applications requiring micro precision.
Engineering Version
Need Ultra-Precision Micro Core Pins for Thin-Wall Medical Molds?
Our engineering team specializes in manufacturing high-precision micro mold components, including STAVAX micro core pins designed for thin-wall medical injection molds.
Send us your technical drawings or CAD files, and we will provide:
- Engineering feasibility analysis
- Precision manufacturing solutions
- Reliable production lead times
Contact us today to discuss your medical mold tooling project.
