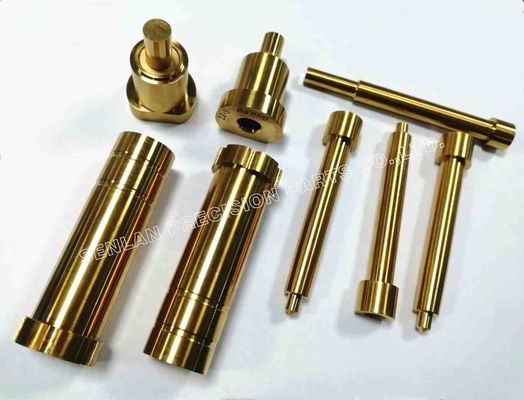

TiN Coated H13 Core Pins for Die Casting Molds

Product Overview

TiN Coated H13 Core Pins are high-performance die casting mold components designed to form internal holes, cavities, and detailed features in metal cast parts. These precision pins are manufactured from H13 hot-work tool steel and enhanced with a Titanium Nitride (TiN) coating, providing improved wear resistance, surface hardness, and reduced friction during high-pressure die casting operations.

The TiN coating significantly improves the durability of core pins exposed to molten metal and repetitive thermal cycles. This makes them ideal for aluminum, zinc, and magnesium die casting molds, where long service life and stable dimensional accuracy are critical.

Our core pins are precision machined and heat treated to ensure reliable performance in demanding die casting environments, with dimensional tolerances controlled up to ±0.005 mm.

Product Description

Core pins are essential inserts used in die casting molds to create internal holes, slots, and functional internal geometries in metal components. Because these pins directly contact molten metal during the casting cycle, they must withstand extreme temperatures, pressure, and mechanical wear.

Our TiN coated H13 core pins combine the toughness and thermal stability of H13 steel with the superior surface hardness of a TiN coating. This combination enhances resistance to abrasion, corrosion, and thermal fatigue, while also reducing metal adhesion during the casting process.

Key features include:

• Manufactured from H13 hot-work tool steel

• TiN (Titanium Nitride) PVD coating for enhanced surface hardness

• Excellent resistance to wear and thermal fatigue

• Reduced friction and improved release performance

• Precision CNC machining and grinding

• Custom shapes and dimensions available

• Dimensional accuracy up to ±0.005 mm

These characteristics make TiN coated core pins suitable for long production cycles in high-pressure die casting molds.

Applications

TiN coated H13 core pins are widely used in die casting mold tooling systems where internal features must be accurately formed.

Aluminum Die Casting Molds

Used to form internal holes and structural features in aluminum die-cast components.

Zinc Die Casting Molds

Provide precise internal geometry in zinc die casting molds with improved wear resistance.

Magnesium Die Casting Molds

Suitable for magnesium alloy molds where high thermal resistance and dimensional stability are required.

High-Pressure Die Casting (HPDC) Tooling

Core pins are essential forming components used in HPDC mold systems.

Replaceable Mold Core Inserts

Designed as replaceable tooling components that simplify mold maintenance and repair.

Precision & Manufacturing Capabilities

We specialize in producing precision die casting mold components using advanced machining technology and strict quality control procedures.

Our manufacturing capabilities include:

• High-precision CNC turning and milling

• Wire EDM and EDM machining

• Precision grinding and polishing

• Vacuum heat treatment for H13 tool steel

• PVD TiN coating technology

• Dimensional tolerance control up to ±0.005 mm

Each core pin is carefully inspected to ensure dimensional accuracy, coating uniformity, and consistent performance in die casting molds.

Benefits of TiN Coated Core Pins in Die Casting Molds

Extended Tool Life

The TiN coating significantly increases surface hardness and improves wear resistance.

Reduced Metal Adhesion

Low friction surfaces help prevent molten metal sticking during the casting cycle.

Improved Mold Reliability

Stable performance under high temperatures and repeated thermal cycles.

Lower Maintenance Costs

Durable core pins reduce the frequency of mold maintenance and replacement.

Consistent Part Quality

Precision core geometry ensures accurate internal features in cast components.

What We Need for Quotation

To provide an accurate quotation for custom TiN coated core pins, please provide the following information:

• 2D drawings or 3D CAD files

• Core pin dimensions and tolerances

• Material specification (H13 or equivalent)

• Coating requirement (TiN or other surface treatment)

• Quantity required

• Application type (aluminum, zinc, or magnesium die casting)

Our engineering team will review your drawings and provide a customized manufacturing solution.

FAQ

What is the advantage of TiN coating for core pins?

TiN coating improves surface hardness, wear resistance, and reduces friction, which extends the service life of the core pin in die casting molds.

Why is H13 steel used for die casting core pins?

H13 steel provides excellent heat resistance, toughness, and thermal fatigue resistance, making it ideal for high-temperature die casting environments.

Can core pins be customized?

Yes. Core pins can be fully customized based on technical drawings, dimensions, and mold design requirements.

What is the typical tolerance for these core pins?

Our precision machining capability allows dimensional tolerances up to ±0.005 mm for die casting mold components.

Do you provide coating options besides TiN?

Yes. Other surface treatments such as nitriding or specialized coatings may also be available depending on application requirements.

Contact Our Engineering Team

Need High-Performance Core Pins for Your Die Casting Mold?

Our team specializes in manufacturing precision H13 and TiN coated core pins for die casting molds. We provide reliable tooling components designed for long production cycles and stable mold performance.
