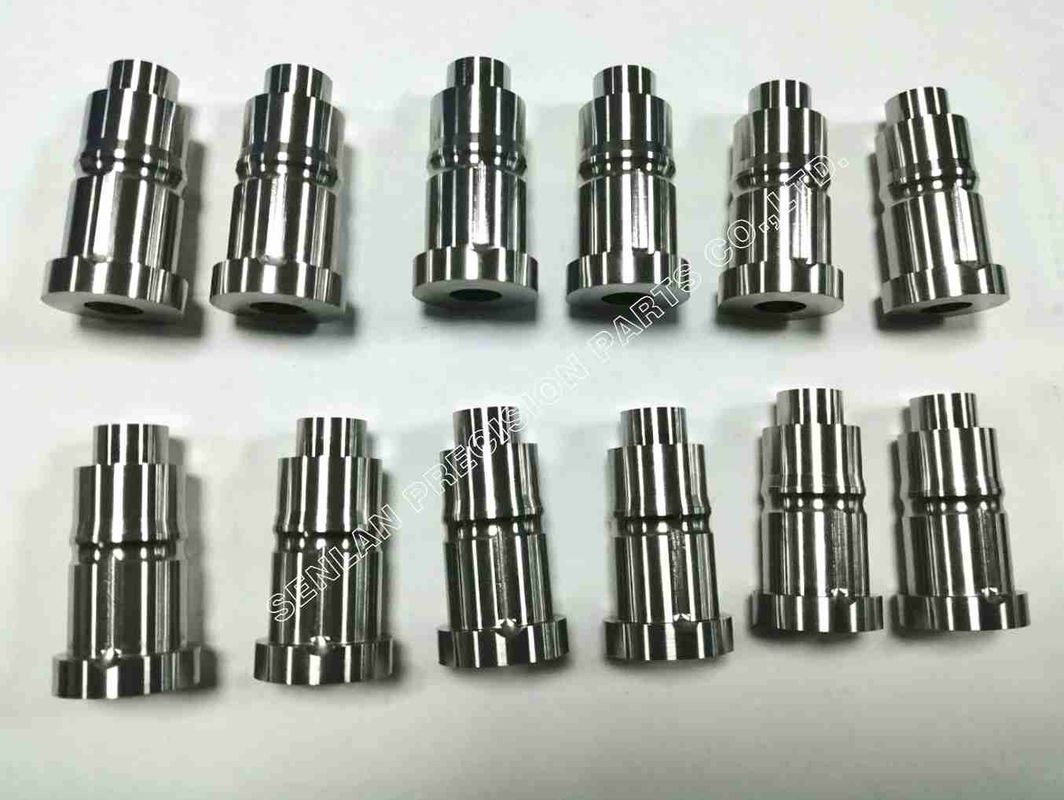

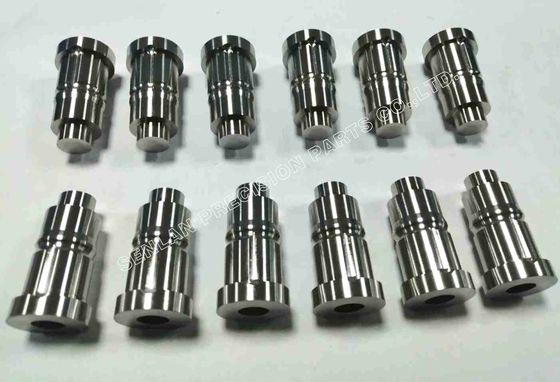

Precision Mold Inserts for Bottle Cap Injection Molds
Bottle cap molds are high-output tools where small dimensional deviations quickly become large production losses. Our precision mold inserts for bottle cap injection molds are manufactured for consistent cavity-to-cavity performance, stable assembly fit, and long-cycle durability. These inserts form critical features in cap molds, helping maintain repeatable part quality and reliable mold uptime in high-volume production.
As a custom precision mold components manufacturer, we produce mold inserts strictly to customer drawings with controlled machining processes for datum accuracy, concentricity, surface finish, and interchangeability. Whether for new mold builds or replacement spares, our inserts are engineered to support fast cycles and consistent molding results.
Product Description
A mold insert is a replaceable forming component installed into a mold plate (core side or cavity side) to create part geometry. In bottle cap molds, insert-style construction is common because it improves serviceability and helps control critical dimensions across multi-cavity layouts.
Common Insert Types Used in Bottle Cap Molds
- Core inserts / core pins that form internal cap geometry
- Cavity inserts that form external surfaces and cosmetic features
- Neck-finish related inserts (design-dependent)
- Support and interface inserts used for alignment and wear management
Why Inserts Are Preferred for Cap Molds
- Easier maintenance: replace worn inserts instead of reworking the entire plate
- Better consistency: controlled insert datums support matched multi-cavity performance
- Faster mold recovery: spare insert sets reduce downtime during maintenance
- Flexible upgrades: insert replacement enables design updates without full mold remake
Materials and Treatments
Bottle cap molds often run long production cycles and may operate in humid environments or with frequent cleaning. Insert material is chosen based on wear, corrosion resistance, required polish level, and lifecycle targets. Heat treatment, polishing, and optional surface treatments/coatings can be applied according to your specification to improve durability and release behavior.
Applications
These precision mold inserts are used in bottle cap injection molds, including:
- Multi-cavity cap molds requiring matched insert sets
- High-volume production molds needing interchangeable spare inserts
- Maintenance programs replacing wear-prone forming components
- New mold builds where insert-based design improves serviceability and cost control
(Exact cap design varies by project; we manufacture inserts to your drawings and mold structure.)
Precision & Manufacturing Capabilities
Cap mold inserts often involve tight fits, coaxial features, and finish-critical forming surfaces. We focus on the parameters that impact molding stability.
Manufacturing Processes
- Precision CNC turning and milling
- Grinding for critical fits and datum surfaces
- EDM / wire EDM for special geometries (as required)
- Heat treatment coordination to target hardness and dimensional stability
- Polishing / fine finishing for forming surfaces
- Set matching and consistency control for multi-cavity orders
Key Controls for Bottle Cap Mold Inserts
- Datum-based machining for repeatable installation into the mold plate
- Concentricity/runout control on stepped and coaxial features
- Fit tolerance control to reduce hand-fitting and maintain interchangeability
- Surface finish management for stable release and cosmetic performance
- Consistency control across multi-piece sets (sampling or 100% inspection options)
Inspection & Documentation
- Dimensional inspection reports available (key dimensions or full report)
- Material certificates and heat treatment records upon request
- Serial marking and traceability options for set management
Benefits for High-Volume Bottle Cap Molding
Higher Yield Through Cavity-to-Cavity Consistency
Matched inserts help reduce dimensional variation across cavities, improving overall yield and reducing sorting or scrap.
Faster Maintenance with Replaceable Components
Insert-based molds allow quick replacement of wear-prone areas, cutting downtime and extending total mold life.
Stable Cycles and Reliable Release
Controlled forming surfaces and fits support consistent ejection behavior and reduce unplanned stops caused by sticking or abnormal wear.
Lower Total Cost of Ownership
A well-made insert set reduces rework frequency, supports predictable maintenance schedules, and protects high-volume production uptime.
Quotation Requirements
To quote precision mold inserts for bottle cap injection molds accurately, please provide:
- 3D CAD (STEP/IGES) and 2D drawing (PDF/DWG)
- Insert type and location (core side / cavity side)
- Quantity (single pieces or matched sets)
- Material requirement (or performance priorities for recommendation)
- Heat treatment / target hardness specification
- Surface finish requirement for forming areas (Ra / polishing level)
- Critical tolerances (datums, fits, runout/concentricity, sealing/functional zones)
- Mold interface details (locating diameter/shoulder, retention method)
- Inspection requirements (FAI, report format, sampling vs. 100% inspection)
- Lead time and packaging requirements
If these are replacement inserts, providing the mating plate interface dimensions helps ensure drop-in compatibility.
Frequently Asked Questions
Do you manufacture inserts to customer drawings and standards?
Yes. We produce according to your drawings, GD&T, and datum references. If tolerances are not specified, we can propose a practical tolerance plan for approval.
Can you supply matched insert sets for multi-cavity cap molds?
Yes. We can manufacture matched sets with controlled variation and provide inspection data for key dimensions.
Which features are typically most critical on cap mold inserts?
Most commonly the forming geometry, locating datums, and coaxial features (runout/concentricity), because they affect part fit, sealing performance, and cavity-to-cavity consistency.
Can you provide polishing and surface finishing?
Yes. Polishing and fine finishing can be applied to forming surfaces according to your requirements.
Do you offer material certificates and inspection reports?
Yes. Material certificates, heat treatment records, and dimensional reports are available upon request.
Need a reliable supplier for precision mold inserts for bottle cap injection molds?
Send us your STEP/2D drawings, quantity, tolerance and finish requirements, material/hardness specifications, and target lead time. We'll respond quickly with a clear quotation and quality documentation options.
