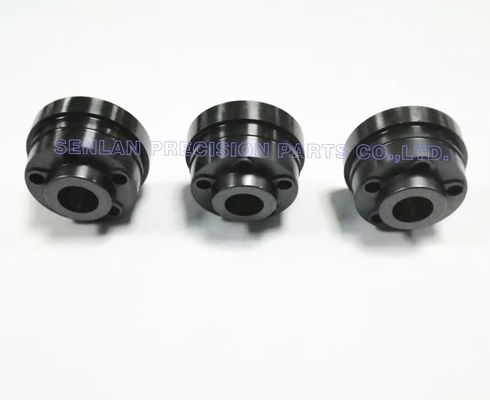

TiAlN Coated AISI 303 (1.4305) Cavity Parts | Precision Injection Mold Inserts

Product Overview

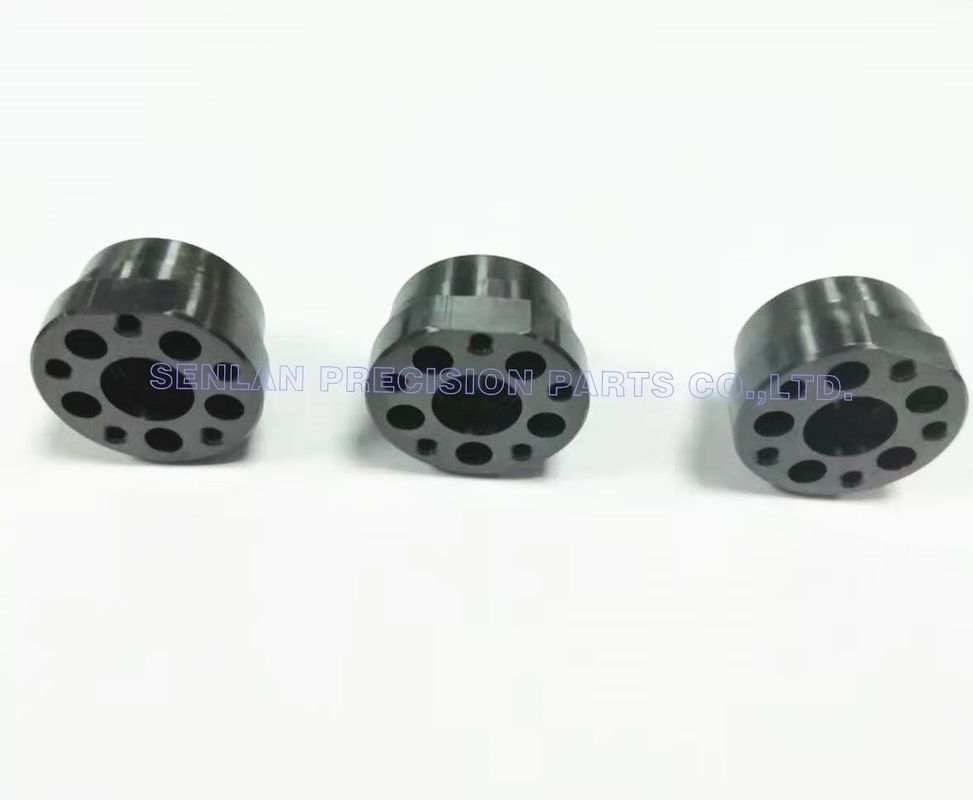

Senlan Precision manufactures TiAlN coated precision cavity parts made from SUS303 stainless steel, designed for plastic injection molding applications requiring stable dimensional accuracy and extended service life. These cavity components are produced strictly under Built-to-Print (OEM) requirements, combining precision CNC machining with advanced surface coating to ensure consistent performance in high-cavity and continuous production environments.

Key Features & Technical Advantages

• TiAlN Surface Coating
  Titanium Aluminum Nitride coating improves surface hardness, wear resistance, and thermal stability, reducing cavity wear during long production cycles.

• SUS303 Stainless Steel Substrate
  Provides good machinability, corrosion resistance, and dimensional stability for injection molding cavity components.

• High Dimensional Accuracy
  Precision machining with controlled tolerances ensures reliable part consistency across multi-cavity molds.

• Optimized Surface Quality
  Controlled surface finish supports stable plastic flow and reduces adhesion during demolding.

• Built-to-Print Manufacturing
  All cavity parts are produced strictly according to customer drawings and technical specifications.

Applications / Industry Use

• Plastic bottle and cap injection molds

• Packaging closures and container components

• Medical consumables injection molding tools

• High-cavity and multi-cavity plastic molds

• Precision packaging mold tooling systems

Mold Structure & Design Description

These precision cavity parts function as the forming surfaces within plastic injection molds. The TiAlN coating is applied to critical forming areas to improve wear resistance and thermal stability. Design options include:

• Single or multi-cavity mold cavity inserts

• Integrated cooling or venting structures

• Complex cavity geometries produced via CNC and EDM

• Replaceable cavity inserts for mold maintenance optimization

All designs are manufactured according to customer-provided drawings.

Manufacturing Capability & CNC Machining

• High-precision CNC milling and turning

• EDM machining for complex cavity profiles

• Precision grinding for tight tolerance control

• TiAlN coating with controlled thickness

• In-process and final dimensional inspection

Senlan Precision supports both prototype development and batch production for injection molding cavity components.

Custom Development & OEM Process

1. Customer provides drawings, specifications, and application requirements

2. Engineering review and manufacturability confirmation

3. CNC machining, EDM processing, and surface treatment

4. Dimensional inspection and quality verification

5. Packaging and delivery according to order requirements

All projects follow a strict OEM / Built-to-Print workflow.

Quality Control & Export Experience

• Material verification for SUS303 stainless steel

• Dimensional inspection using precision measuring equipment

• Surface finish and coating quality checks

• Process traceability and inspection records available

• Export experience serving international injection mold manufacturers

Related Products

• Precision mold core inserts

• Multi-cavity injection mold components

• Coated mold core pins

• EDM machined plastic mold parts

FAQ

Q1: Can you manufacture TiAlN coated cavity parts according to customer drawings?
Yes. All cavity components are produced strictly based on customer-supplied drawings and specifications.

Q2: Is SUS303 suitable for plastic injection molding cavity parts?
SUS303 offers good machinability and corrosion resistance, making it suitable for specific plastic molding applications when combined with surface coatings.

Q3: Do you support multi-cavity mold projects?
Yes. We have experience supplying cavity components for high-cavity and multi-cavity injection molds.

Q4: Are inspection reports available?
Inspection reports and dimensional records can be provided upon request.

Request a Quote

To receive a technical quotation for TiAlN coated precision cavity parts, please send your drawings and requirements to Senlan Precision. Our engineering team will review your specifications and provide a manufacturing solution tailored to your injection molding project.
