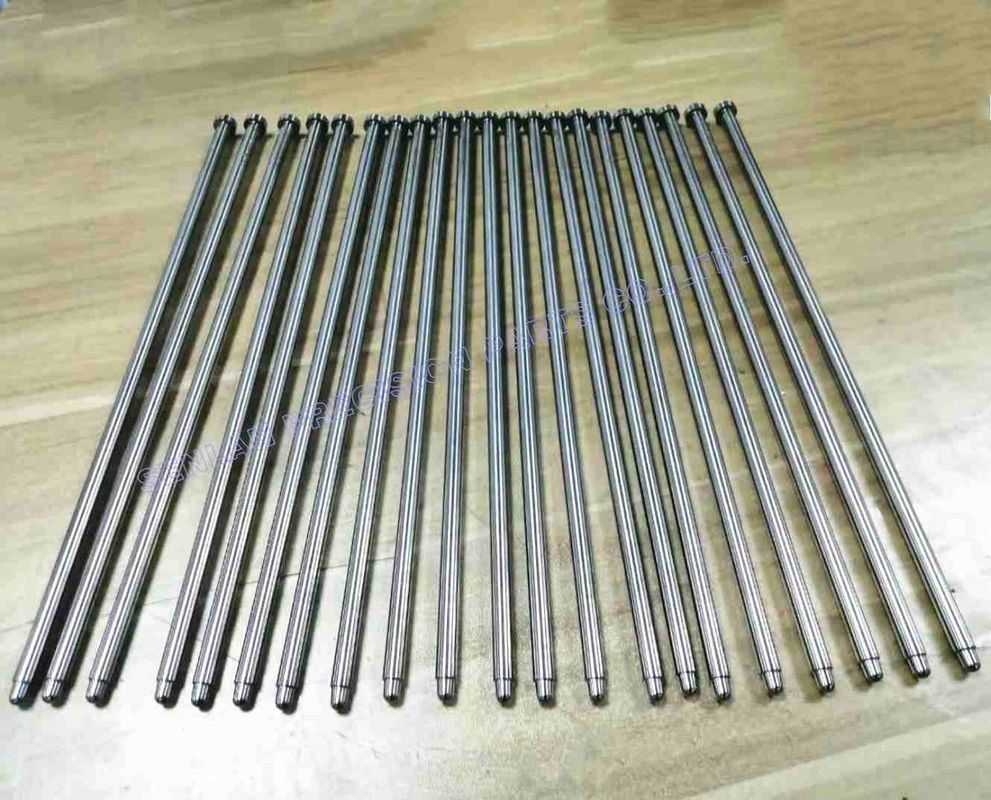

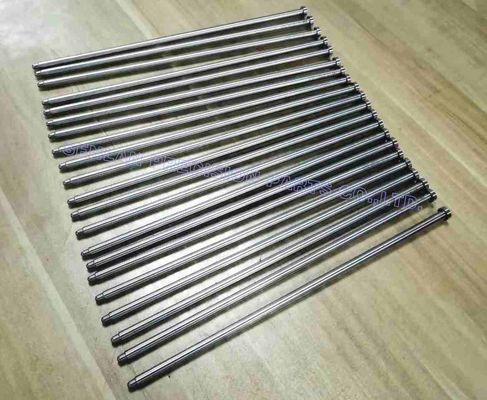

H13 Steel Long Ejector Pins for Deep Die Casting Molds
Specialized die casting mold components designed for deep cavity molds where standard ejector pins cannot reach the casting surface. These extra-length pins are essential for the ejection system of high-pressure die casting molds to safely remove metal castings from deep or narrow mold cavities.
Product Overview
Manufactured from H13 hot-work tool steel, long ejector pins provide excellent resistance to high temperatures, thermal fatigue, and mechanical stress. Their long and slender structure allows precise force transmission while maintaining stability during repeated casting cycles.
These ejector pins are commonly used in aluminum, zinc, and magnesium die casting molds, particularly in molds that produce deep structural parts or components with extended internal cavities.
Product Features
- Manufactured from H13 hot-work tool steel
- Designed for deep cavity die casting molds
- High resistance to heat, wear, and thermal fatigue
- Precision ground surfaces for smooth sliding movement
- Excellent straightness for long-length pins
- Custom lengths and diameters available
- Machining tolerance up to ± 0.005 mm
Applications
Deep Aluminum Die Casting Molds
Used for molds producing aluminum parts with deep cavities or tall structural features.
Zinc Die Casting Molds with Long Core Structures
Suitable for molds requiring extended ejector reach to release zinc cast parts.
Magnesium Die Casting Tooling
Used in magnesium casting molds where lightweight structural parts require deeper cavity designs.
High-Pressure Die Casting (HPDC) Mold Ejection Systems
Essential components for transmitting ejection force in deep or complex mold structures.
Large or Multi-Layer Mold Structures
Applicable when mold design includes thick mold plates or extended cavity depths.
Precision & Manufacturing Capabilities
- High-precision CNC turning and milling
- Wire EDM machining
- Precision grinding and straightness control
- Professional vacuum heat treatment
- Custom manufacturing based on drawings
- Dimensional tolerance up to ± 0.005 mm
Optimized Ejection Benefits
Designed for Deep Cavities
Long ejector pins allow engineers to eject cast parts from deep mold sections without redesigning the mold structure.
Stable Force Transmission
High-strength H13 steel ensures that long pins can transmit ejection force without bending or deformation.
Reduced Risk of Mold Damage
Precision machining and smooth surfaces prevent friction damage to guide holes.
Extended Mold Service Life
Durable materials and accurate manufacturing improve the longevity of mold components.
Reliable High-Volume Production
Stable ejector performance supports continuous die casting production cycles.
Quotation Requirements
To provide an accurate quotation for custom long ejector pins, please provide:
- 2D drawings or 3D CAD files
- Required pin length, diameter, and head structure
- Tolerance requirements
- Material specification (H13 or equivalent)
- Heat treatment or coating requirements
- Order quantity
- Application type (aluminum, zinc, or magnesium die casting)
Frequently Asked Questions
What are long ejector pins used for in die casting molds?
Long ejector pins are used in molds with deep cavities or thick mold plates, where standard ejector pins cannot reach the casting surface.
Why is H13 steel used for long ejector pins?
H13 hot-work tool steel provides excellent heat resistance, toughness, and fatigue resistance, which are essential for die casting applications.
How do long ejector pins maintain straightness?
Precision grinding and strict straightness control ensure stable movement and prevent bending during operation.
Can long ejector pins be customized?
Yes. Length, diameter, head structure, and tolerance can all be custom manufactured according to mold design drawings.
What tolerance can be achieved?
Our machining precision for die casting mold components can reach ± 0.005 mm.
