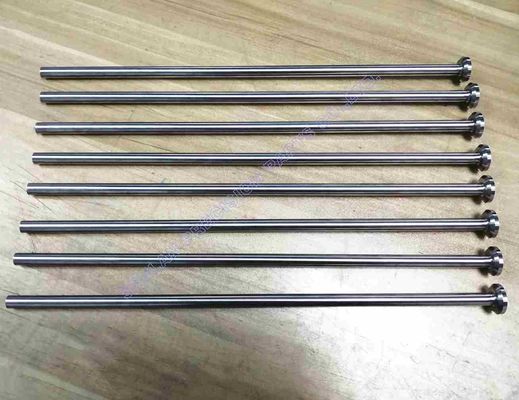

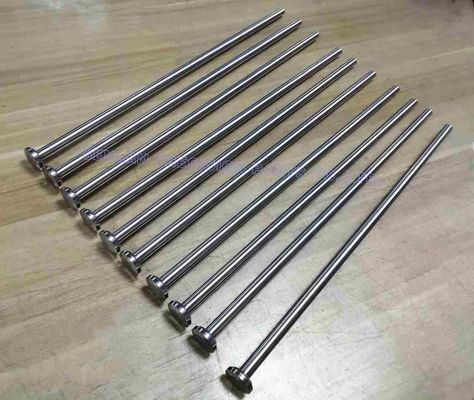

1.2343 (H11) Precision Long Core Pins | Straightness 0.01mm | Injection Mold Parts

Product Overview

Senlan Precision manufactures long mold core pins made from 1.2343 material, designed for use in plastic injection molding. These precision components offer high durability and excellent performance for complex and demanding molding processes. Our custom-made core pins are engineered to meet stringent standards, ensuring accuracy and reliability in every application.

Core Features & Advantages

• High-Quality 1.2343 Material
  Crafted from 1.2343 steel, a premium alloy known for its exceptional toughness, wear resistance, and heat stability, these core pins are ideal for injection molding in high-demand environments.

• Precision CNC Machining
  Each core pin is produced with high precision, ensuring tight tolerances and consistent quality. We deliver products with a tolerance of ±0.01mm, guaranteeing a perfect fit for your mold.

• Long Durability & Heat Resistance
  With the excellent thermal conductivity and wear resistance of 1.2343 material, these core pins are engineered for long-lasting performance in high-volume molding, reducing downtime and maintenance costs.

• Customization & OEM Services
  We offer custom-designed mold core pins tailored to your specific needs. Our OEM services allow for flexibility in dimensions, design, and material selection to meet the exact requirements of your production process.

• Corrosion Resistance & Surface Treatment
  The core pins are often treated with surface coatings for additional corrosion resistance, ensuring longevity and enhanced performance, even in harsh environments.

Applications / Industry Use

• Plastic Injection Molding
  Ideal for high-precision plastic injection molding, our long mold core pins are used in the production of complex plastic parts such as bottle caps, closures, and medical device components.

• Medical Industry
  In the medical device manufacturing sector, these core pins ensure the production of highly accurate components, such as syringe molds and other plastic medical parts that require tight tolerances and consistent quality.

• Packaging Industry
  Our precision core pins are widely used in the packaging industry, particularly in the bottle packaging sector, to create durable and high-quality injection molds for plastic packaging products.

Mold Structure & Design Description

• Mold Core Pin Design
  These long mold core pins are engineered to provide excellent core cavity alignment and mold part ejection, essential for high-precision plastic injection molding processes. The 1.2343 material ensures that the mold components maintain their strength and precision even under intense pressure and high-temperature conditions.

• Custom Core Pin Solutions
  We offer tailored core pins with custom dimensions and specific designs based on your mold's requirements. Whether you need specialized inserts or unique geometries, our custom solutions cater to your mold needs with precision and reliability.

Manufacturing Capability & CNC Machining Expertise

• State-of-the-Art CNC Machining
  We utilize advanced CNC machining technologies to manufacture these precision mold core pins. This allows us to produce complex designs with tight tolerances, ensuring accuracy and uniformity in every part.

• Scalable Production
  Senlan Precision is equipped to handle both low-volume custom orders and large-scale production runs, making us your ideal partner for both prototype and mass production of precision mold components.

• Material Expertise
  The 1.2343 steel used for our core pins is known for its strength and heat resistance, making it ideal for molds exposed to high pressures and temperatures, such as in plastic injection molding.

Custom Development / OEM Collaboration Process

1. Consultation & Design Review
   We work closely with your team to review your design specifications, ensuring that the mold core pins meet the required performance standards and tolerances.

2. Prototype Development
   Once the design is confirmed, we create a prototype to test the fit and functionality of the core pin in your mold. This step ensures that all components align and perform as expected.

3. Full-Scale Production
   After prototype approval, we begin full-scale production, adhering to stringent quality control processes to guarantee the consistency and quality of each part.

4. Final Inspection & Delivery
   Before shipping, each core pin undergoes a rigorous inspection to check its dimensions, surface finish, and functionality. We ensure timely delivery to your location, with careful packaging to protect the parts during transit.

Quality Control & Export Experience

• Rigorous Quality Checks
  Every core pin undergoes a comprehensive inspection process to ensure compliance with industry standards and customer specifications. This includes checking for dimensional accuracy, material integrity, and surface finish.

• Global Shipping & Export
  With years of experience in international trade, we ensure that your order is packaged securely and delivered on time. We ship worldwide, ensuring that you receive your parts in excellent condition.

Related Products (Internal Links)

• Custom CNC Machined Molds

• Injection Mold Parts

• Precision Mold Components

• Mold Core Inserts

Frequently Asked Questions (FAQ)

Q1: Can I order custom mold core pins with specific dimensions?
Yes, we specialize in manufacturing custom core pins according to your specific design requirements. Our OEM services ensure that each part meets your exact specifications.

Q2: What is the lead time for production?
Prototype production typically takes 7-10 days, and full-scale production takes approximately 3-4 weeks, depending on the complexity and quantity.

Q3: Are these mold core pins suitable for medical applications?
Yes, our precision core pins made from 1.2343 material are ideal for medical device molds where high precision and toughness are critical.

Q4: How do you ensure the quality of the mold core pins?
Each mold core pin undergoes strict quality control checks, including dimensional inspections and material testing, to ensure they meet the required standards for your applications.

Get a Quote

For a custom quote on precision CNC machined parts or to discuss your design requirements, please contact us with your specifications. We will provide you with a competitive price and delivery schedule tailored to your needs.
