TiAlN Coated H13 Core Pins | High-Wear Resistant Pins for Injection Molding

Product Overview

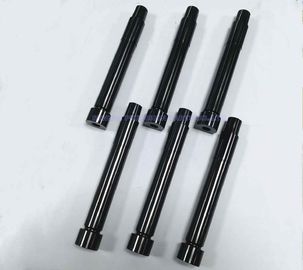

Senlan Precision offers H13 TiAlN coated precision mold core pins specifically designed for plastic injection moulding applications. These high-performance core pins are coated with Titanium Aluminium Nitride (TiAlN), providing superior wear resistance, high hardness, and excellent thermal conductivity. Designed to enhance the performance and longevity of your molds, they are ideal for demanding injection molding applications in industries like packaging, medical, and cosmetics.

Core Features & Advantages

• High-Quality H13 Material
  Our core pins are made from H13 steel, a durable and heat-resistant tool steel known for its toughness and wear resistance, essential for injection molding under extreme conditions.

• TiAlN Coating
  The TiAlN coating improves the hardness of the mold core pins, enhancing abrasion resistance and offering superior protection against high-temperature wear and chemical corrosion, leading to a longer lifespan.

• Precision Manufacturing
  Manufactured with CNC precision, our core pins offer tight tolerances and high precision (±0.01mm), ensuring accurate fitting and reliable performance in your moulds.

• High Thermal Conductivity
  TiAlN coating contributes to improved thermal conductivity, which optimizes the injection molding process by reducing cycle times and ensuring uniform cooling of the mold.

• Long Service Life
  These precision mold core pins are designed to withstand high wear and tear, providing consistent performance over extended use and reducing the frequency of mold maintenance and replacement.

Applications / Industry Use

• Packaging Industry
  Used in the manufacturing of bottle caps, closures, and other plastic packaging parts, our H13 TiAlN coated mold core pins ensure efficient and long-lasting production in high-volume settings.

• Medical Device Manufacturing
  In the medical industry, precision is critical. Our core pins are utilized in molds for syringes, vials, and other medical device components, where strict quality standards and durability are required.

• Cosmetics Packaging
  For the cosmetic industry, these precision mold parts are essential in creating high-quality cosmetic packaging such as lipstick tubes and compact cases, ensuring a polished finish and high manufacturing efficiency.

Mould Structure & Design Description

• Mold Core Pin Design
  The core pins serve as essential components in injection molds, responsible for the precise formation of internal features in plastic parts. Our H13 TiAlN coated core pins are designed for high-performance, ensuring smooth ejection and accurate cavity formation.

• Threaded and Non-Threaded Options
  We offer both threaded and non-threaded core pin designs, ensuring compatibility with various mold cavity requirements, including intricate designs that demand precision.

• Cooling Channel Integration
  These core pins can be designed with integrated cooling channels to improve cooling efficiency and reduce cycle times, thus improving the overall productivity of the molding process.

Manufacturing Capability & CNC Machining

• State-of-the-Art CNC Equipment
  Our advanced CNC machining technology allows us to produce high-precision parts with tight tolerances of ±0.01mm, ensuring that our mold core pins fit perfectly and perform consistently.

• Material Selection
  We use H13 steel, known for its high hardness and excellent thermal stability, making it ideal for high-stress injection molding processes. Our TiAlN coating further enhances the material's capabilities, providing long-lasting protection against wear.

• High-Volume Production
  We are capable of producing large quantities of core pins, with consistent quality and performance, meeting the demands of high-volume manufacturing environments.

Custom Development / OEM Collaboration Process

1. Consultation and Design
   Start by providing us with your design specifications. Our team will review your needs and recommend the best solutions for your mold core pin requirements.

2. Prototype and Testing
   After the initial design, we offer prototyping to test fitment and performance before proceeding with full-scale production. This ensures that the final product meets all functional and dimensional requirements.

3. Full Production
   Upon approval of the prototype, we move to full-scale production, maintaining strict quality control throughout the process to ensure that each core pin meets our high standards.

4. Packaging and Delivery
   Once production is complete, we securely package the components and ensure timely delivery to your location, ready to be integrated into your injection molding systems.

Quality Control & Export Experience

• Rigorous Quality Inspections
  Every core pin undergoes a thorough quality control process, including dimensional checks, surface finish evaluations, and material verification to ensure that each part meets the required standards for precision and durability.

• Global Shipping
  With years of experience in international shipping, we ensure that your components are delivered safely and on time, regardless of your location.

Related Products (Internal Links)

• Injection Molding Parts

• Mould Core Inserts

• Plastic Molding Components

• Precision CNC Machining Parts

• Mold Ejector Pins

Frequently Asked Questions (FAQ)

Q1: Can these mold core pins be customized for different applications?
Yes, we offer customized solutions based on your specific requirements. Whether you need different sizes, coatings, or designs, we can accommodate your needs with OEM services.

Q2: What is the lead time for production?
Typically, prototype production takes 7-10 days, and full production takes 4-6 weeks, depending on the complexity and order quantity.

Q3: Are these core pins suitable for high-volume manufacturing?
Yes, our H13 TiAlN coated core pins are specifically designed for high-volume production environments, offering long service life and maintaining consistent performance over time.

Q4: Do you offer support for mold maintenance and repairs?
Yes, we provide after-sales support for mold maintenance, including replacement parts and repair services to ensure the optimal performance of your molds.

Get a Quote

For more information or to request a custom quote, please contact us with your design specifications and order requirements. We will provide you with a competitive price and delivery timeline tailored to your needs.
