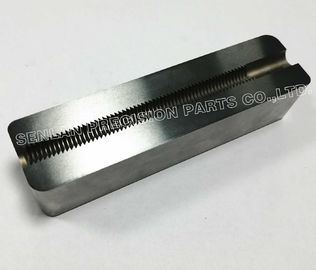

H13 Plastic Mould Parts Core Thread Insert Mold Components
Mold core thread inserts are specialized mold fittings used to fix the space between templates and fill template gaps. These components can be manufactured in square, round, or sheet forms with exceptionally high precision requirements. As custom components, they are made-to-order according to specific mold specifications.
Product Specifications
| Material |
H13 |
| Hardness |
48-42HRC |
| Heat Treatment |
Available |
| Service |
Made-to-order |
| Surface Treatment |
/ |
| Closest Tolerance |
±0.01mm |
| Polishness |
Ra0.6 |
| Axiality |
0.01mm |
| Verticality |
0.01mm |
Our product range includes plastic mold core pins and inserts, movable core components, and various precision mold parts. These components serve diverse industries including medical, cosmetics, automotive die-casting, daily packaging, electronic appliances, and automation.
Manufacturing Capabilities
Materials & Products
Manufacturing and inspection capabilities in steel, stainless steel, and copper materials for precision mold parts including cavity pins, core pins, punches, ejector sleeves, and CNC machining parts.
Services
CNC machining, CNC milling, Sodick EDM, Sodick wire-cut, OD grinding, ID grinding, surface grinding, thread grinding, and polishing services.
Industries Served
Medical, packaging, aerospace, and electronic industries.
Application Fields
Automobile parts, medical equipment, daily necessities packaging, cosmetic packaging, and related industrial applications.
Quality Advantages
Highly polished finish 6-8 micro finish
Precision form ground to close diameter tolerance ±0.005mm
Common fractional sizes available up to 3 1/2″ long
M-2 high speed steel 60-63 Rockwell C
Custom sizes available up to 1″ diameter
Custom hardness RC 64-65 and triple drawn available on request
Why Choose Our Products
- Specialized manufacturer of precision core pins, cavity pins, and insert pins
- 8 years of experience in stamping die parts, injection die parts, auto parts, and metal-working products
- Advanced production equipment and experienced operators
- Extensive experience with OEM and ODM services
- Competitive pricing, superior quality, and fast delivery
Ordering Process
- Submit drawing or sample for non-standard parts, or series number for standard parts
- NDA available for intellectual property protection
- Immediate evaluation of drawing and requirements
- Same-day quotation provided
- 50% deposit required to begin manufacturing
- 50% balance payment before shipment
- Standard production: 10 working days
- Sample process: 7 working days
Required Information for Inquiry
- Product drawings when possible
- Required material specifications
- Dimension and tolerance requirements
- Hardness and surface treatment specifications
- Order quantity if available
We welcome the opportunity to establish business relationships and match your specific requirements. Please contact us with any questions about our precision mold components.
Business Terms
Payment Terms
T/T, PayPal, Western Union - 50% deposit, balance before shipment
Packaging
Coated with anticorrosive oil, packed in carton boxes
Shipping Methods
DHL, TNT, FedEx available for worldwide delivery
