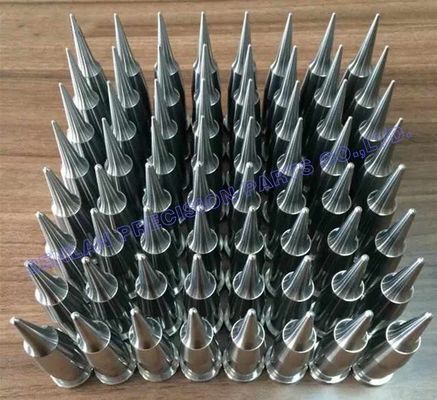

64-Cavity Precision Core Inserts for High-Volume Injection Molds
In high-cavity injection molds, performance is defined by consistency. A 64-cavity mold can only run efficiently when every core insert is manufactured with tight dimensional control and matched accuracy across the full set. Our 64-cavity precision core inserts are custom-machined mold components designed for high-volume injection molding, where stable cycle performance, predictable ejection, and cavity-to-cavity repeatability are critical.
As a custom precision mold components manufacturer, we produce core insert sets from customer drawings with controlled processes for coaxial accuracy, tip geometry, surface finish, and interchangeability. Whether used for new mold builds or replacement sets, these core inserts are built to support fast output and consistent quality at scale.
Product Description
A core insert is the forming element on the moving half of an injection mold that creates internal geometry and functional features. In a 64-cavity configuration, the core set must be manufactured as a matched system—small variation across cores can quickly translate into defects, inconsistent fit, or unstable process windows.
Typical Characteristics
- High quantity production with tight cavity-to-cavity consistency
- Slender, precision-turned profiles requiring controlled straightness and runout
- Forming tips where geometry directly affects part fit, sealing, or assembly performance
- Critical fit sections (locating diameters/shoulders) designed for repeatable assembly into the core plate
Key Manufacturing Priorities
- Consistent forming geometry across all 64 pieces
- Controlled datum and locating features for interchangeability
- Surface finish and edge quality optimized for stable release and reduced wear
- Traceability and inspection strategy suitable for set management
Material, hardness, and finishing are manufactured according to your drawing and production requirements.
Applications
These 64-cavity precision core inserts are used in high-volume injection molds where high output and tight repeatability are required, such as:
- Multi-cavity molds requiring matched core sets
- Production molds demanding stable ejection and consistent cycle behavior
- Tooling programs that rely on interchangeable spare core sets for fast maintenance
Precision & Manufacturing Capabilities
High-cavity core production requires more than single-piece accuracy—it requires set-level control.
Manufacturing Processes
- Precision CNC turning/milling for forming profiles and locating sections
- Grinding for critical fits, sealing zones, and datum surfaces (as required)
- EDM / wire EDM for special features (project-dependent)
- Heat treatment coordination for target hardness and stability
- Polishing / fine finishing for forming surfaces and wear zones
- Set matching workflow to maintain cavity-to-cavity consistency
Key Controls for 64-Cavity Consistency
- Cavity-to-cavity dimensional matching on critical forming features
- Straightness and runout control for long/slender cores
- Consistent tip geometry and surface finish to reduce variation in molding results
- Repeatable fit tolerances for drop-in assembly and quick replacement
- Statistical sampling or 100% inspection options based on your quality requirements
Inspection & Documentation
- Dimensional inspection reports for key features (available)
- Material certificate and heat treatment records upon request
- Part marking / serial numbering for traceability and set management
Customer Value for High-Cavity Production
Higher Yield in Mass Production
Matched core sets reduce cavity-to-cavity variation, helping minimize rejects and improve overall yield.
More Stable Molding and Ejection
Controlled surface finish and accurate fits support consistent release behavior, reducing downtime caused by sticking or uneven ejection.
Faster Maintenance with Interchangeable Spares
Interchangeable cores allow quick replacement without reworking the entire mold, keeping high-volume lines running.
Predictable Lifecycle and Lower Total Cost
Proper material selection, hardness, and wear management increase service intervals and reduce long-term maintenance costs.
What We Need for Quotation
To quote 64-cavity precision core inserts accurately, please provide:
- 3D CAD (STEP/IGES) and 2D drawing (PDF/DWG)
- Quantity: 64 pcs per set (and number of sets required)
- Material requirement (or performance requirements for recommendation)
- Heat treatment / target hardness specification
- Surface finish requirement for forming areas
- Critical dimensions list (tip geometry, locating fits, runout/straightness)
- Mold interface details (core plate fit, locating shoulder/diameter, retention method)
- Inspection/document needs (FAI, CMM report, sampling vs. 100% inspection)
- Required lead time and packaging requirements
If these are replacement cores, providing the existing core plate interface dimensions helps ensure drop-in compatibility.
Frequently Asked Questions
Can you manufacture 64 core inserts as a matched set?
Yes. We follow set-level controls to maintain cavity-to-cavity consistency and can provide inspection data for key dimensions.
What dimensions are usually most critical on high-cavity core inserts?
Typically the forming tip geometry, locating diameters/shoulders, and runout/straightness—because they affect part quality, assembly fit, and ejection stability.
Do you offer traceability for large sets?
Yes. Serial marking and set management options are available to support maintenance and spare part control.
Can you support urgent replacement orders?
We can evaluate expedited manufacturing based on geometry, heat treatment route, inspection scope, and current capacity.
Do you provide inspection reports?
Yes. We can provide dimensional inspection reports (key features or full report) according to your requirements.
Need a reliable supplier for 64-cavity precision core inserts for high-volume injection molds?
Send us your STEP/2D drawings, material and hardness requirements, quantity (sets), and target lead time. We'll respond quickly with a clear quotation and available quality documentation options.
