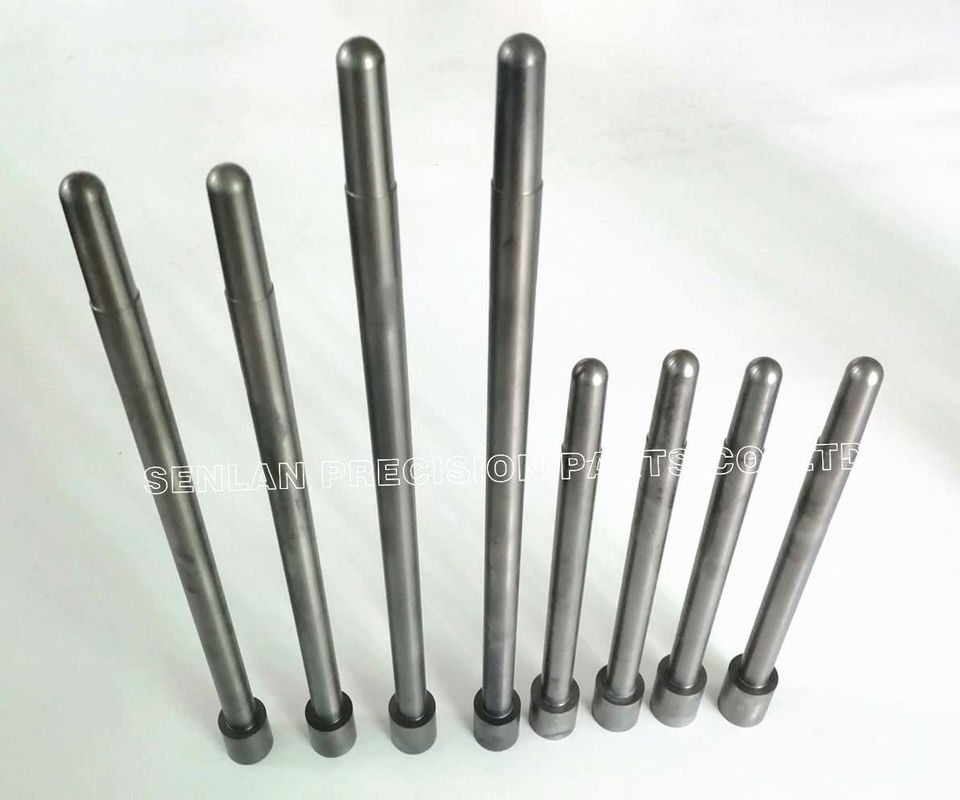

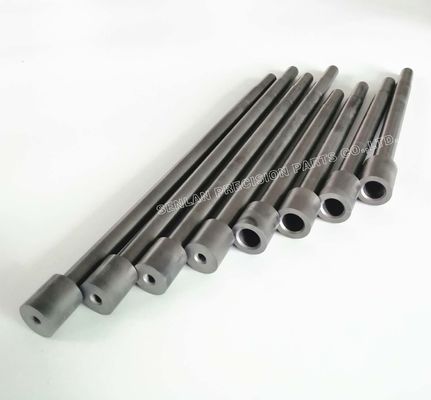

H13 Steel Round Head Ejector Pins for Die Casting Molds
H13 Steel Round Head Ejector Pins are specialized die casting mold components used in the mold ejection system to remove solidified metal parts from the mold cavity after each casting cycle.
Product Overview
The round head structure provides stable positioning within the ejector plate and ensures consistent force transmission during the demolding process. Manufactured from H13 hot-work tool steel, these ejector pins offer excellent resistance to high temperature, thermal fatigue, and mechanical wear.
They are widely used in aluminum, zinc, and magnesium die casting molds, where reliable ejection performance is essential for maintaining stable production cycles. With precision machining and strict quality inspection, our round head ejector pins are designed to support accurate mold operation and long service life in high-pressure die casting environments.
Product Features
- Manufactured from H13 hot-work tool steel
- Round head structure for stable installation in ejector plates
- High resistance to heat, wear, and thermal fatigue
- Precision ground surfaces for smooth sliding movement
- Suitable for long production cycles in die casting molds
- Custom dimensions available according to mold design
- Machining tolerance up to ± 0.005 mm
Applications
Aluminum Die Casting Molds
Used to eject aluminum alloy castings from the mold cavity after solidification.
Zinc Die Casting Molds
Provide precise and stable ejection for zinc die casting molds.
Magnesium Die Casting Molds
Suitable for magnesium alloy casting molds that require durable ejection components.
High-Pressure Die Casting (HPDC) Mold Systems
Essential ejection components used in HPDC tooling.
Replaceable Mold Ejection Components
Designed as replaceable mold parts to simplify maintenance and extend mold service life.
Manufacturing Capabilities
- High-precision CNC turning and milling
- Wire EDM machining
- Precision grinding and polishing
- Professional vacuum heat treatment
- Custom manufacturing based on drawings
- Dimensional tolerance control up to ± 0.005 mm
Performance Benefits
Reliable Mold Operation
Round head ejector pins provide stable positioning and consistent force transmission during ejection.
High Heat Resistance
H13 tool steel maintains strength and dimensional stability under high casting temperatures.
Improved Casting Protection
Proper ejection reduces the risk of casting scratches, deformation, or sticking.
Long Service Life
Wear-resistant materials help extend the lifespan of mold components.
Efficient High-Volume Production
Reliable ejection systems support continuous die casting production cycles.
Quotation Requirements
To provide an accurate quotation for H13 round head ejector pins, please provide the following information:
- 2D drawings or 3D CAD files
- Ejector pin dimensions and tolerances
- Head structure and pin length specifications
- Material requirements (H13 or equivalent)
- Quantity required
- Application type (aluminum, zinc, or magnesium die casting)
Frequently Asked Questions
What is the function of round head ejector pins in die casting molds?
Round head ejector pins are used to push solidified metal parts out of the mold cavity after the casting cycle.
Why use round head ejector pins instead of standard ejector pins?
The round head structure provides stable positioning inside the ejector plate, ensuring consistent force transmission and alignment.
Why is H13 steel used for ejector pins?
H13 hot-work tool steel provides excellent heat resistance, toughness, and wear resistance, making it suitable for die casting mold components.
Can round head ejector pins be customized?
Yes. These ejector pins can be manufactured according to custom mold drawings, dimensions, and structural requirements.
What tolerance can be achieved for these ejector pins?
Our machining capability for die casting mold components can achieve ± 0.005 mm tolerance.
