±0.01mm Parallelism Mold Inserts | Precision Parts for Cosmetic Packaging Molds

Product Overview

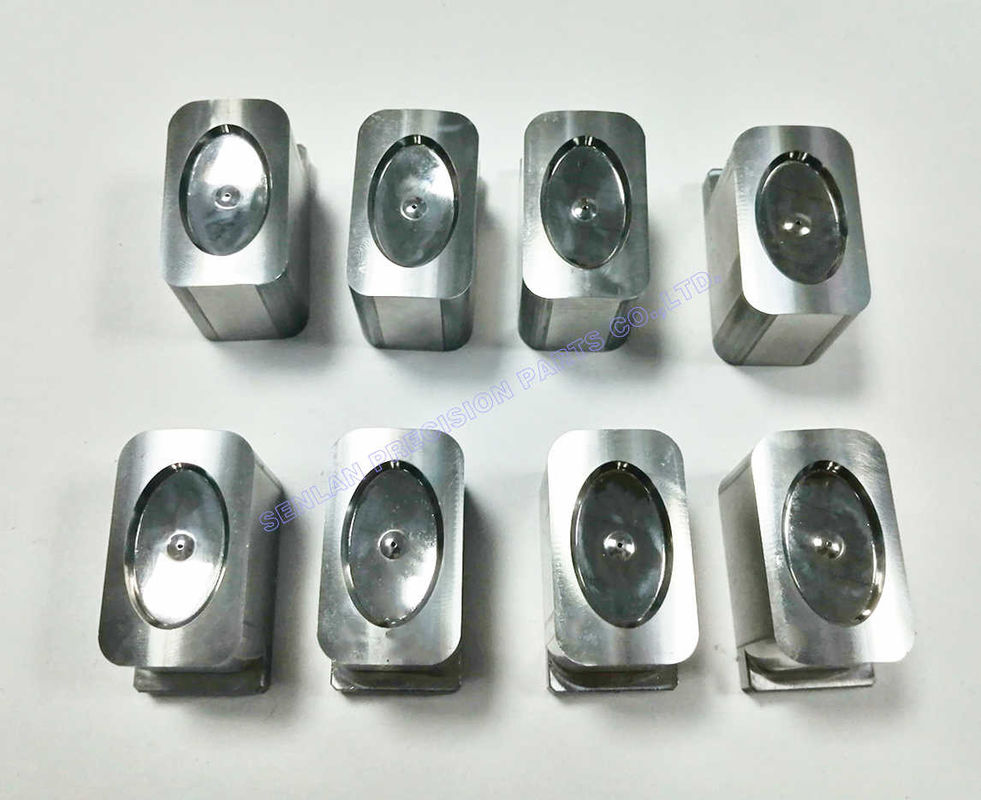

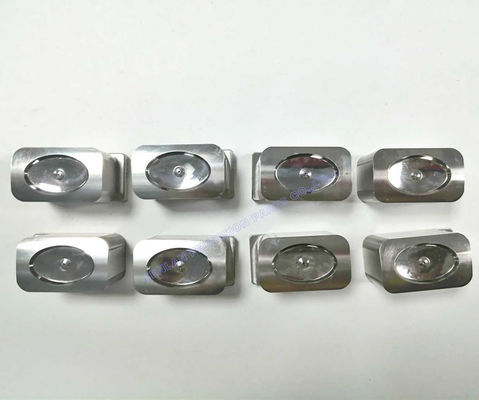

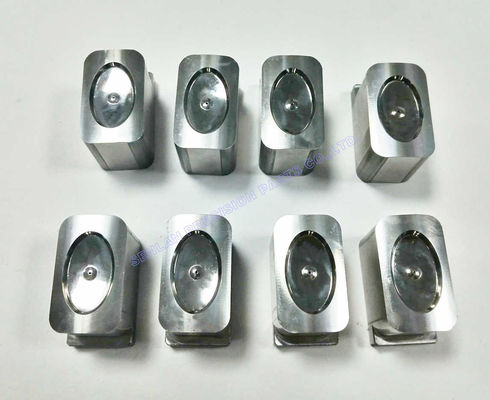

Senlan Precision manufactures high-precision mold core inserts for cosmetic packaging plastic injection moulds. These components are produced under strict machining control to achieve parallelism within 0.01 mm, ensuring stable cavity alignment and consistent molding quality. All parts are custom-built to print, suitable for high-cavity and precision cosmetic packaging mould systems.

Key Features & Technical Advantages

• High Parallelism Accuracy
  Mold core inserts are controlled to ≤ 0.01 mm parallelism, ensuring uniform cavity geometry and reliable part consistency across multi-cavity moulds.

• Precision CNC Machining
  Manufactured using advanced CNC milling and grinding processes to maintain dimensional stability and repeatability.

• Material Options for Cosmetic Moulding
  Available in selected tool steels and stainless steels suitable for cosmetic packaging mould environments, balancing wear resistance and surface quality.

• Stable Performance in Multi-Cavity Moulds
  Designed for high-cavity cosmetic packaging moulds where alignment accuracy directly affects product appearance and assembly performance.

• Built-to-Print Manufacturing
  Fully customized according to customer drawings, tolerance requirements, and mould structure specifications.

Applications / Industry Use

• Cosmetic Packaging Moulds
  Mold core inserts for lipstick tubes, cosmetic caps, closures, and small packaging components requiring tight dimensional control.

• Plastic Injection Moulding Systems
  Suitable for precision injection moulds where cavity balance and parallelism are critical to molding quality.

• High-Cavity Production Moulds
  Widely used in moulds with multiple cavities where cumulative tolerance control is essential.

Mould Structure & Design Description

• Core Insert Function
  The mold core insert forms critical internal and external features of cosmetic packaging components, directly influencing surface finish and dimensional accuracy.

• Parallelism Control
  Parallelism within 0.01 mm ensures correct cavity alignment, reducing flash, uneven wall thickness, and part deformation during injection.

• Interface & Fit Design
  Inserts are manufactured with controlled fit tolerances to ensure stable installation and repeatable positioning inside the mould base.

Manufacturing Capability & CNC Machining

• CNC Milling & Precision Grinding
  High-precision machining processes ensure accurate geometry, tight tolerances, and consistent batch quality.

• EDM Support for Complex Geometry
  EDM machining is available for sharp corners, deep features, or complex cavity shapes when required by design.

• Small to Medium Batch Flexibility
  Capable of prototype, pilot, and production-level quantities for cosmetic packaging mould projects.

Custom Development / OEM Cooperation Process

1. Drawing Review & Technical Evaluation
   Customer provides 2D/3D drawings with tolerance and application requirements.

2. Manufacturing Planning
   Machining process, material selection, and tolerance strategy are confirmed.

3. Precision Machining
   CNC machining, grinding, and optional EDM are executed under controlled conditions.

4. Inspection & Verification
   Parallelism, dimensional accuracy, and surface quality are fully inspected.

5. Delivery & Technical Support
   Parts are delivered with inspection documentation and long-term technical support.

Quality Control & Export Experience

• Dimensional Inspection
  Parallelism, flatness, and critical dimensions are verified using precision measuring equipment.

• Process Traceability
  Each batch is traceable by material, machining process, and inspection records.

• International Supply Experience
  Senlan Precision supplies mould components to international customers with stable quality and consistent delivery performance.

Related Products (Internal Links)

• Precision Mold Core Pins

• Cosmetic Packaging Injection Mold Components

• Multi-Cavity Mold Inserts

• CNC Machined Mold Parts

Frequently Asked Questions (FAQ)

Q1: Can you guarantee 0.01 mm parallelism for all inserts?
Yes. Parallelism control is achieved through precision grinding and inspection, based on drawing requirements.

Q2: Do you support fully customized mold inserts?
Yes. All parts are manufactured strictly built-to-print, including geometry, material, and tolerance specifications.

Q3: What inspection data can be provided?
Dimensional inspection reports, parallelism measurements, and material documentation are available upon request.

Q4: Are these inserts suitable for multi-cavity cosmetic moulds?
Yes. They are specifically designed for high-cavity moulds where alignment accuracy is critical.

Request a Quote

Please send your drawings, tolerance requirements, and quantity details.
Senlan Precision will provide a technical quotation and manufacturing lead time based on your specifications.
