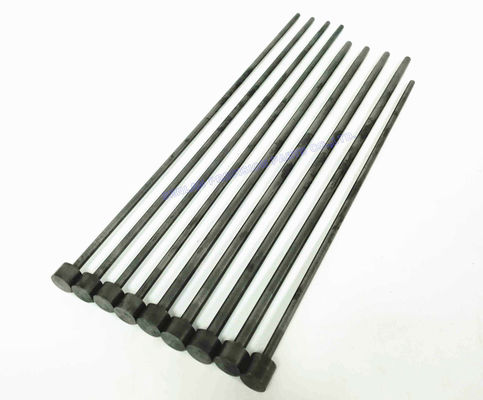

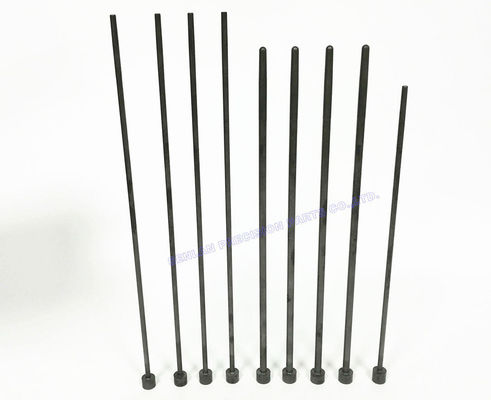

H13 (1.2344) Nitrided Die Casting Core Pins | Anti-Soldering Coated Mold Parts

Product Overview

Nitrided coated core pins manufactured from 1.2344 (H13) tool steel are precision mold components designed for injection and die casting molds requiring wear resistance, thermal stability, and dimensional consistency. Through CNC machining, controlled heat treatment, and nitriding processes, these core pins deliver stable geometry and extended service life. All parts are custom produced strictly according to customer drawings and technical specifications.

Key Features & Technical Advantages

• Manufactured from 1.2344 (H13) hot work tool steel

• Nitriding surface treatment to enhance wear resistance and fatigue strength

• Stable dimensional accuracy under repeated thermal cycling

• Good toughness for high-pressure mold environments

• Consistent surface condition for reliable molding and demolding

• Suitable for multi-cavity and long production runs

• Fully customized / OEM / Built-to-Print manufacturing

Applications & Industries

These nitrided 1.2344 core pins are widely used in:

• Injection molds for packaging caps and closures

• Mold systems for bottle caps and sealing components

• Medical packaging molds and syringe-related tooling

• Industrial die casting and injection mold applications

They are especially suitable for applications requiring heat resistance, surface durability, and repeatable mold performance.

Mold Structure & Design Description

Core pins made from nitrided 1.2344 steel are installed on the core side of injection or die casting molds to form internal product features.
Key design considerations include:

• Accurate pin diameter, straightness, and functional tip geometry

• Proper fit and alignment with surrounding mold components

• Structural strength to withstand injection pressure and thermal load

• Compatibility with modular and multi-cavity mold designs

All core pins are designed and manufactured strictly according to customer drawings to ensure correct assembly and stable mold operation.

Manufacturing Capability & CNC Machining

Senlan Precision manufactures nitrided core pins using advanced CNC machining and finishing technologies.
Our production facilities are equipped with high-precision machining centers and CNC systems from MAKINO (Japan) and HARDINGE (USA), enabling:

• High-accuracy CNC turning and milling

• Stable dimensional control before and after heat treatment

• Consistent surface finish prior to nitriding

• Reliable repeatability across production batches

Nitriding is applied after machining to improve surface hardness while maintaining core toughness.

Custom Manufacturing & OEM Cooperation

We specialize in custom manufacturing and OEM cooperation, supporting:

• Built-to-Print production based on 2D drawings or 3D models

• Customized core pin sizes, lengths, and geometries

• 1.2344 material processing and nitriding control

• Small-batch prototyping and volume production

• Long-term supply of replacement and spare mold components

Technical communication is maintained throughout the project to ensure accurate execution of specifications.

Quality Control & Export Experience

With over 20 years of experience in exporting precision mold components, Senlan Precision operates a structured quality control system:

• Incoming material inspection and traceability

• In-process dimensional inspection during CNC machining

• Surface treatment verification after nitriding

• Final inspection prior to shipment with full documentation

We are experienced in international technical communication, quality requirements, and export packaging standards.

Related Mold Components

• Precision mold core pins

• Mold cavity inserts

• Nitrided mold inserts and sleeves

• Multi-cavity mold spare parts

All related products are available on a custom manufacturing basis.

Technical FAQ

Q1: Are nitrided 1.2344 core pins manufactured strictly according to drawings?
Yes. All core pins are produced strictly based on customer-provided drawings and specifications.

Q2: What is the benefit of nitriding for 1.2344 core pins?
Nitriding improves surface hardness, wear resistance, and fatigue life while maintaining core strength.

Q3: What machining tolerances can be achieved?
Tight tolerances suitable for precision mold applications can be achieved depending on part geometry and requirements.

Q4: Can these core pins be supplied as replacement parts for existing molds?
Yes. Replacement and interchangeable core pins can be manufactured to match existing mold designs.

Request a Quotation

For pricing, lead time, or technical discussion regarding nitrided coated 1.2344 core pins for injection molds, please provide your drawings or technical specifications.
Our engineering team will review your requirements and provide a professional quotation accordingly.
