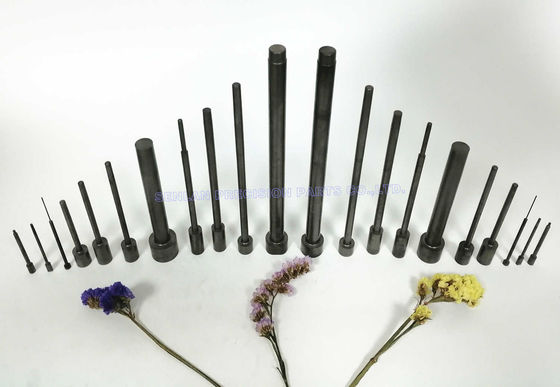

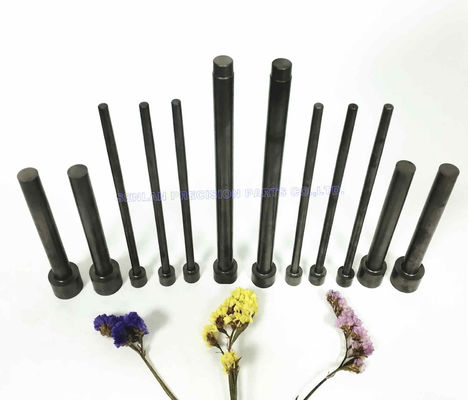

H13 Tool Steel Core Pins for Die Casting Mold Components
Precision-engineered H13 Tool Steel Core Pins are essential components for die casting molds, designed to create internal holes, channels, and complex geometries in metal casting parts. These critical components ensure dimensional accuracy and structural integrity in die-cast products.
Product Overview
Manufactured from high-grade H13 hot-work tool steel, these core pins withstand extreme temperatures, pressure, and thermal cycling in die casting processes. Their excellent heat resistance and mechanical strength deliver reliable performance in demanding production environments.
With high machining precision and customizable dimensions, these core pins provide dependable solutions for aluminum, zinc, and magnesium die casting molds, helping manufacturers maintain consistent casting quality and extended mold life.
Product Features
- Manufactured from premium H13 hot-work tool steel
- Excellent thermal fatigue resistance
- High hardness and wear resistance
- Precision-ground surfaces for smooth mold performance
- Tight dimensional tolerances for consistent mold fitting
- Customizable sizes, shapes, and lengths
Applications
Aluminum Die Casting
- Automotive engine components
- Transmission housings
- Structural aluminum parts
Zinc Die Casting
- Precision electronic hardware
- Decorative metal components
Magnesium Die Casting
- Lightweight automotive components
- Consumer electronics housings
Industrial Mold Tooling
- High-pressure die casting molds
- Custom metal casting molds
- Precision mold tooling systems
Precision & Manufacturing Capabilities
- High-precision CNC turning and milling
- Wire EDM machining
- Precision centerless grinding
- Professional vacuum heat treatment
- Surface polishing and finishing
- Dimensional tolerance control up to ± 0.002 - ±0.005 mm
Advantages for Die Casting Mold Manufacturers
Superior Heat Resistance: H13 tool steel performs exceptionally well under high-temperature casting conditions.
Improved Mold Durability: High hardness and wear resistance extend the lifespan of mold components.
Precise Internal Geometry: Accurate core pins ensure consistent hole dimensions and internal structures.
Stable Production Performance: High-quality mold components reduce the risk of deformation and casting defects.
Custom Engineering Support: Core pins can be produced according to specific mold drawings and engineering requirements.
What We Need for Quotation
- Technical drawings or CAD files
- Core pin diameter and length
- Material requirements (H13 or equivalent)
- Surface treatment or coating requirements
- Order quantity
- Application type (aluminum, zinc, or magnesium die casting)
Frequently Asked Questions
What are core pins used for in die casting molds?
Core pins are used to create internal holes, channels, or detailed internal structures within die-cast parts.
Why is H13 steel suitable for die casting mold parts?
H13 tool steel provides excellent heat resistance, toughness, and thermal fatigue resistance, making it ideal for high-temperature die casting environments.
Can core pins be customized?
Yes. Core pins can be manufactured according to custom drawings, sizes, and mold specifications.
What industries commonly use die casting core pins?
They are widely used in automotive, electronics, industrial machinery, and consumer product manufacturing.
Do you perform quality inspections before delivery?
Yes. Every core pin undergoes strict dimensional inspection and quality control before shipment.
