1.2343 Mold Core Pins for Precision Die Casting Service

Product Overview

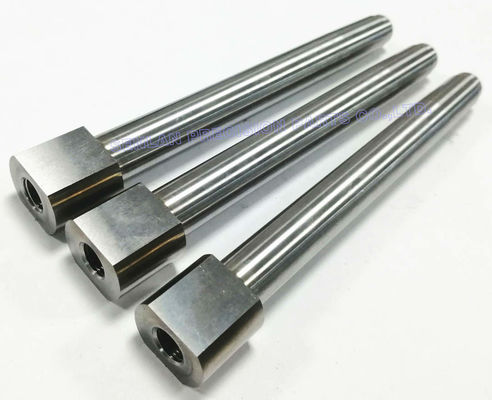

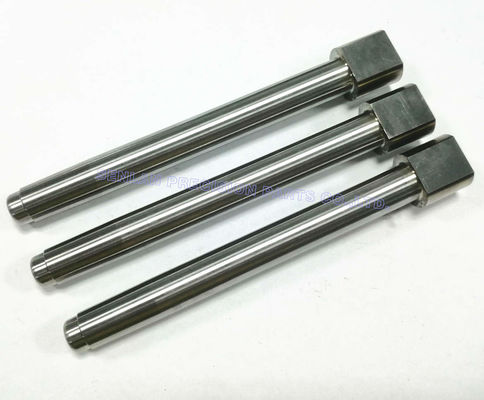

1.2343 mold core pins are precision-machined functional components used in injection molding and die casting mould systems where strict alignment and dimensional stability are required. Manufactured by Senlan Precision, these core pins are produced on a built-to-print basis, achieving parallelism up to 0.01 mm, suitable for high-cycle and multi-cavity mould applications.

Core Features & Technical Advantages

• Material: DIN 1.2343 Tool Steel
  Excellent hot strength, thermal fatigue resistance, and dimensional stability

• Parallelism Control ≤ 0.01 mm
  Ensures precise alignment between core and cavity in mould assemblies

• High-Precision CNC Machining
  Stable diameter, straightness, and concentricity throughout the pin length

• Optimized for Die Casting & Injection Mould Service
  Designed to withstand thermal cycling and mechanical load

• Custom / OEM / Built-to-Print Manufacturing
  Produced strictly according to customer drawings and technical specifications

Application Scenarios / Industry Applications

• Injection Molding Mould Core Systems

• Die Casting Mould Components

• Bottle Cap and Closure Moulds

• Medical Packaging and Syringe Moulds

• Multi-Cavity and High-Output Mould Tools

These precision core pins are typically used in mould structures where repeatable alignment, uniform cavity formation, and long service life are required.

Mould Structure & Design Explanation

In injection molding and die casting moulds, core pins are critical for forming internal features and maintaining cavity geometry.
The parallelism of the core pin directly affects:

• Product dimensional consistency

• Wear distribution between core and cavity

• Mould stability during high-cycle production

A controlled parallelism of 0.01 mm significantly reduces misalignment and improves mould life.

Manufacturing Capability & CNC Machining Capacity

Senlan Precision manufactures 1.2343 mold core pins using:

• CNC Turning for diameter accuracy and straightness

• Precision Grinding for parallelism and surface quality

• Heat Treatment Control to balance hardness and toughness

• EDM (optional) for complex end geometries

Typical tolerance capability:

• Diameter tolerance: ±0.005–0.01 mm

• Parallelism: ≤ 0.01 mm

Custom Development / OEM Cooperation Process

1. Drawing & Requirement Review
   Pin geometry, length, tolerance, and application environment

2. Process Planning
   Machining route and heat treatment definition

3. Precision CNC Machining & Grinding
   In-process inspection for dimensional control

4. Final Quality Inspection
   Parallelism, straightness, and surface verification

5. Batch Production & Long-Term Supply
   Suitable for mould maintenance and replacement programs

Quality Control & Export Experience

• ISO 9001 quality management system

• Full material traceability for 1.2343 tool steel

• Precision measuring equipment for parallelism and straightness

• Stable export experience in mould and tooling components

• Inspection reports available upon request

Related Precision Mould Components (Internal Links)

• Precision Mold Core Inserts

• Die Casting Mold Components

• Injection Mold Core Pins

• Custom Mold Cavities

• High-Precision CNC Mold Parts

Frequently Asked Questions (FAQ)

Q1: Why choose 1.2343 material for mold core pins?
A: 1.2343 offers good hot strength and thermal fatigue resistance, making it suitable for die casting and injection mould environments.

Q2: Are these core pins standard parts?
A: No. All core pins are manufactured to customer drawings only.

Q3: Can longer or stepped core pins be produced?
A: Yes. Length, diameter steps, and end geometry can be fully customized.

Q4: Is 0.01 mm parallelism guaranteed for all sizes?
A: Parallelism capability depends on pin length and design; feasibility is confirmed during drawing review.

Request a Technical Quotation

For 1.2343 precision mold core pins, die casting core components, or custom injection mould tooling, please send your drawings and technical requirements to Senlan Precision.
Our engineering team will provide a detailed technical evaluation and quotation.
