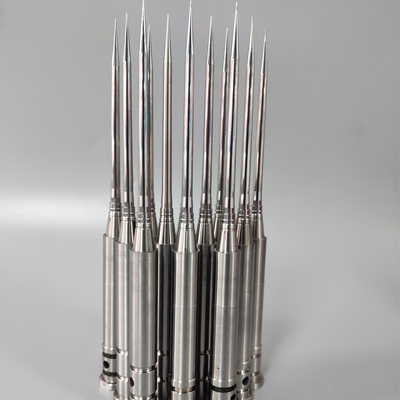

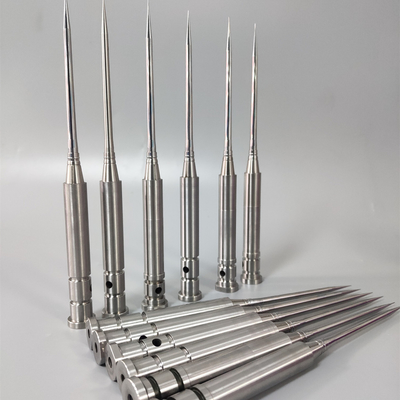

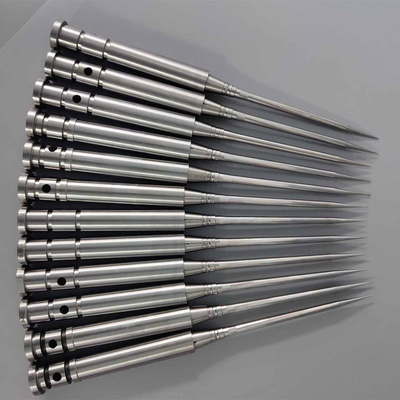

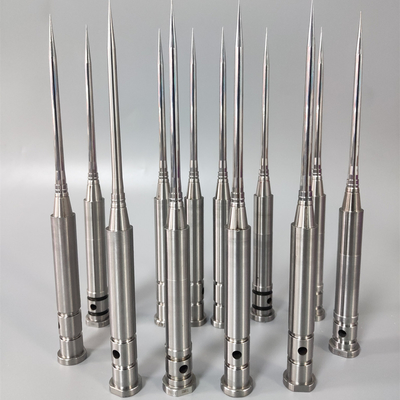

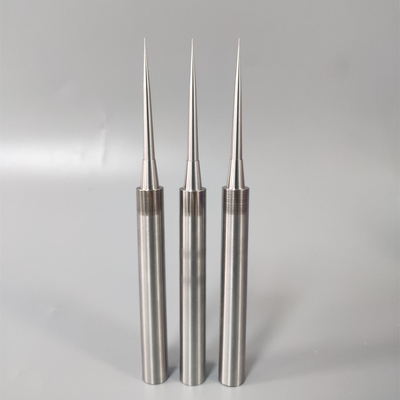

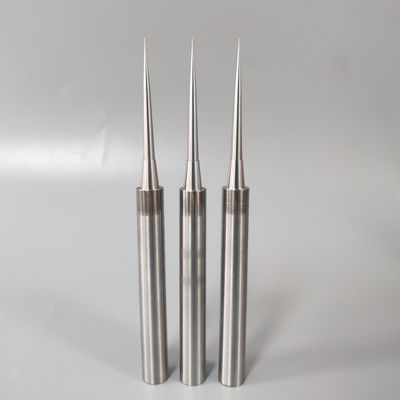

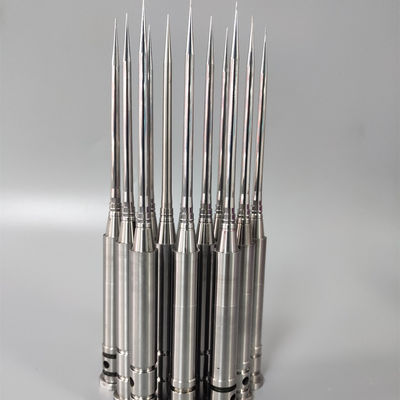

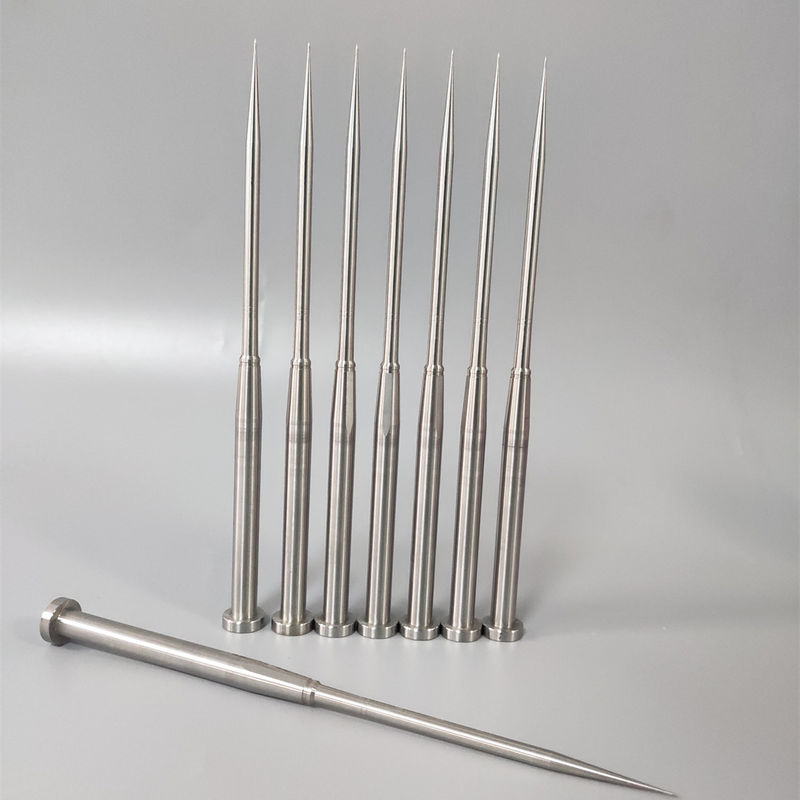

M340 Long Taper Core Pins for Medical Injection Molds
High-precision mold components designed for medical injection molds requiring deep tapered cores and ultra-fine internal structures.
Product Overview
M340 Long Taper Core Pins are engineered for medical injection molds that require deep tapered cores and ultra-fine internal structures. These specialized pins create long precision holes, tapered channels, and deep cavity features in medical plastic components.
Manufactured from Bohler M340 stainless mold steel, these core pins provide exceptional corrosion resistance, superior hardness, and outstanding polishability. The long tapered structure enables precise formation of deep internal geometries while enhancing demolding performance.
These components are widely used in high-precision medical molds, laboratory consumable molds, and precision injection molding tools where both structural strength and precision-level accuracy are essential.
Product Features & Benefits
- Smooth demolding for deep molded features
- Reduced friction between plastic parts and core pins
- Improved plastic flow around thin core structures
- Lower risk of deformation or breakage of molded parts
- Excellent corrosion resistance for medical environments
- High wear resistance for long production cycles
- Superior mirror polishing capability
- Stable dimensional accuracy
- Machining tolerance up to ±0.005 mm
Applications
Medical Consumable Molds
Used for molding plastic components with deep internal channels or fine tapered holes.
Laboratory Plastic Molds
Applicable for molds producing laboratory diagnostic consumables and precision plastic components.
precision Injection Molding
Ideal for molds forming deep precision holes and slender internal geometries.
Pharmaceutical Packaging Components
Used in molds producing precision pharmaceutical plastic packaging parts.
High-Cavity Medical Injection Molds
Ensures stable dimensional accuracy across multi-cavity production molds.
Precision Manufacturing Capabilities
- High-precision CNC turning and milling
- Precision taper grinding
- Mirror polishing and fine surface finishing
- Professional vacuum heat treatment
- Precision inspection and measurement
- Machining tolerance up to ±0.005 mm
Technical Advantages
Deep Feature Formation
Long taper core pins enable creation of deep internal holes and narrow tubular structures with high accuracy.
Improved Demolding Performance
Tapered geometry reduces friction and enhances release of delicate molded parts.
Corrosion Resistance
M340 stainless mold steel protects tooling from corrosion caused by moisture and plastic additives.
Stable Long-Cycle Production
High wear resistance ensures reliable performance during continuous medical production runs.
Extended Component Life
Precision manufacturing and durable material improve mold component lifespan.
Quotation Requirements
To provide an accurate quotation for custom M340 long taper core pins, please provide:
- 2D drawings or 3D CAD files
- Required core pin diameter, taper angle, and overall length
- Tolerance requirements
- Surface finishing or polishing requirements
- Material specification (M340 or equivalent)
- Quantity required
- Mold application details
Frequently Asked Questions
What are long taper core pins used for in injection molds?
They form deep tapered holes or internal channels in molded plastic parts while improving demolding performance.
Why use M340 steel for medical mold components?
M340 stainless mold steel provides excellent corrosion resistance, high hardness, and superior polishability, making it ideal for precision medical molds.
Can long taper core pins be customized?
Yes. Diameter, taper angle, length, head structure, and surface finishing can be fully customized according to mold drawings.
What tolerance can be achieved?
Our machining capability allows precision tolerances up to ±0.005 mm for mold components.
Are these pins suitable for high-cavity molds?
Yes. M340 long taper core pins maintain stable dimensional accuracy in multi-cavity medical injection molds.
Procurement Information
We specialize in manufacturing high-precision M340 stainless mold components for demanding medical injection molding applications.
Submit your drawings or technical specifications for:
- Fast professional quotation
- Engineering review and manufacturability evaluation
- Stable production lead time
Contact us today to request a quote for your custom medical mold components.
