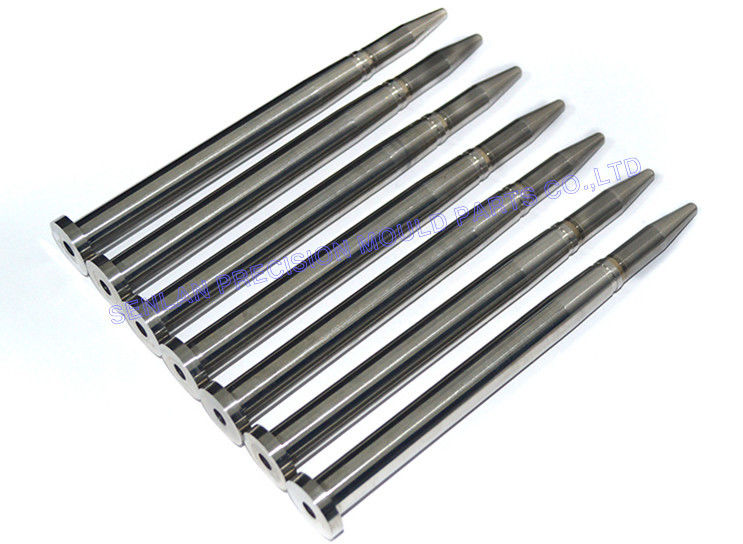

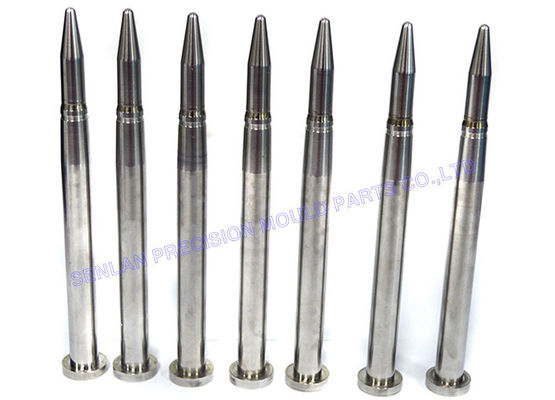

H13 Steel Core Pins for Die Casting Molds
Critical die casting mold components used to form internal holes, recesses, and complex internal geometries in metal cast parts. Installed inside the mold cavity, core pins create accurate internal features while maintaining dimensional stability during high-pressure die casting cycles.
Product Overview
Manufactured from premium H13 hot-work tool steel, these core pins are designed to withstand extreme temperatures, repeated thermal cycling, and high injection pressures commonly found in aluminum, zinc, and magnesium die casting processes.
With high hardness, excellent thermal fatigue resistance, and precision machining, H13 core pins are widely used in high-pressure die casting (HPDC) molds to ensure consistent part quality and extended mold service life.
Product Features
- Manufactured from H13 hot-work tool steel
- Excellent resistance to thermal fatigue and heat cracking
- High hardness and wear resistance
- Precision ground surfaces for accurate mold fitting
- Custom shapes and dimensions available
- Designed for long service life in high-pressure die casting molds
Applications
Aluminum Die Casting Molds
Core pins create precise internal holes and structures in aluminum die-cast components.
Zinc Die Casting Molds
Suitable for high-precision zinc die casting molds requiring dimensional accuracy and durability.
Magnesium Die Casting Molds
Used in magnesium alloy die casting molds where thermal resistance and structural stability are essential.
High-Pressure Die Casting Tooling (HPDC)
Core pins are essential tooling components in HPDC molds for forming internal cavities and functional features.
Replaceable Mold Core Systems
Designed as replaceable inserts to simplify mold maintenance and extend mold service life.
Precision & Manufacturing Capabilities
Our company specializes in the manufacturing of precision die casting mold components, using advanced machining equipment and strict quality control procedures.
- High-precision CNC turning and milling
- Wire EDM and sinker EDM machining
- Precision grinding and polishing
- Professional vacuum heat treatment
- Surface finishing and dimensional calibration
- Dimensional tolerance control up to ± 0.002 - ±0.005 mm
Advantages of Using H13 Core Pins
Superior Heat Resistance
H13 hot-work tool steel provides excellent resistance to high temperatures and repeated thermal cycling.
Improved Mold Durability
High hardness and wear resistance help extend the service life of die casting molds.
Precision Internal Geometry
Core pins ensure consistent and accurate formation of internal features in cast components.
Easy Replacement and Maintenance
Replaceable core pins simplify mold maintenance and reduce downtime.
Reliable High-Volume Production
Stable material performance supports continuous die casting operations.
Quotation Requirements
To provide an accurate quotation for custom H13 core pins, please provide the following information:
- Product drawings or CAD files
- Core pin dimensions and tolerance requirements
- Required material grade (H13 or equivalent)
- Heat treatment or surface finishing requirements
- Quantity required
- Application type (aluminum, zinc, or magnesium die casting)
Frequently Asked Questions
What are core pins used for in die casting molds?
Core pins are used to create internal holes, cavities, and structural features inside die-cast metal components.
Why is H13 steel commonly used for core pins?
H13 tool steel offers excellent heat resistance, toughness, and thermal fatigue resistance, making it ideal for high-temperature die casting environments.
Can core pins be customized?
Yes. Core pins can be manufactured according to custom drawings, tolerances, and mold design requirements.
What industries use die casting mold core pins?
Core pins are used in molds that produce parts for automotive, industrial equipment, electronics housings, and mechanical components.
How do core pins affect mold performance?
High-precision core pins improve dimensional accuracy, reduce casting defects, and increase mold lifespan.
