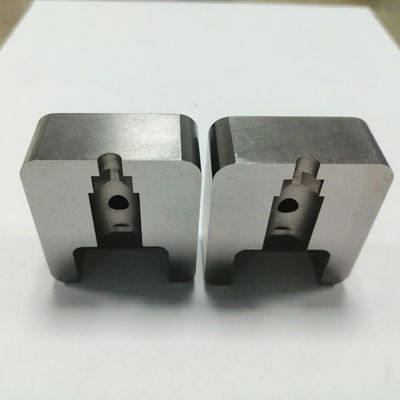

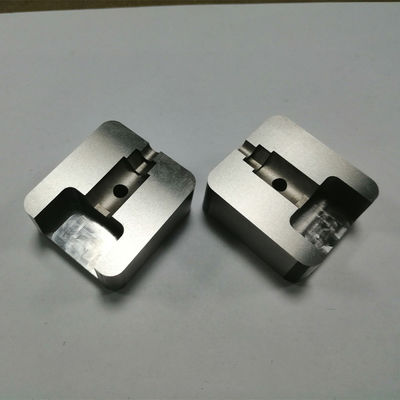

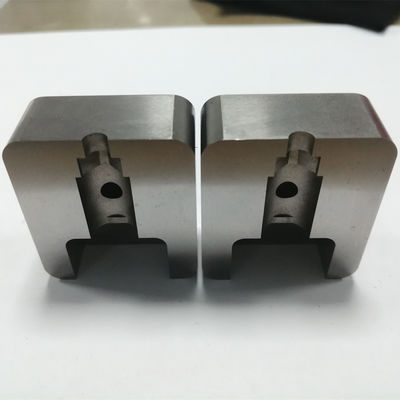

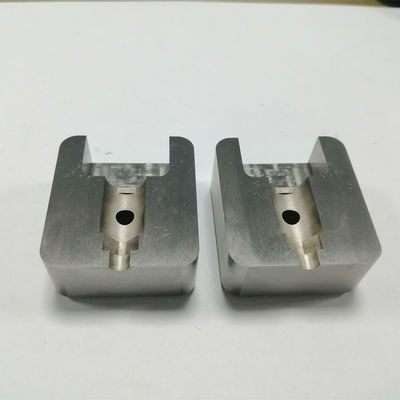

Z50 Square Side Locating Blocks | MISUMI Standard Mold Positioning

Product Overview

The Square Side Locating Block Z50 is a precision positioning component manufactured according to MISUMI standard specifications. Designed for injection mold alignment and repeatable positioning, this locating block ensures accurate mold assembly, stable parting line control, and reliable positioning performance in multi-cavity mold systems and high-precision tooling applications.

Key Features & Technical Advantages

• Manufactured in accordance with MISUMI Z50 standard dimensions

• Square side structure for stable lateral positioning

• High dimensional accuracy for repeatable mold alignment

• Suitable for multi-cavity and high-precision injection molds

• Compatible with standard mold bases and positioning systems

• OEM / Built-to-Print manufacturing available based on drawings

Applications & Industry Use

• Injection mold positioning and alignment systems

• Multi-cavity mold assemblies

• Mold base side positioning structures

• Precision tooling requiring repeatable mold closing accuracy

Mold Structure & Design Description

The Z50 square side locating block is installed on the mold side surface to control lateral positioning during mold closing. Its square geometry provides stable contact surfaces, reducing lateral movement and improving mold alignment accuracy. When used together with corresponding locating elements, it helps maintain consistent cavity alignment and parting line precision during long-term mold operation.

Manufacturing Capability & CNC Machining Capacity

Senlan Precision produces MISUMI standard and custom locating blocks using precision CNC machining processes. Our manufacturing capabilities include:

• High-precision machining centers from MAKINO

• CNC turning and milling equipment from HARDINGE

• Controlled machining processes to ensure dimensional stability and flatness

All positioning components are manufactured to meet the tolerance requirements defined by MISUMI standards or customer drawings.

Custom Development & OEM Cooperation Process

1. Confirmation of MISUMI Z50 standard or customer-specific design

2. Technical review of drawings and tolerance requirements

3. Material selection and machining process planning

4. CNC machining and surface finishing

5. Dimensional inspection and functional verification

6. Packaging and delivery according to export standards

All projects follow a custom OEM / Built-to-Print cooperation model.

Quality Control & Export Experience

• Incoming material inspection

• In-process dimensional and flatness checks

• Final inspection based on drawing or MISUMI standard

• Clean, protective packaging for international shipment

• Experience supplying positioning components to overseas mold manufacturers

Inspection reports and dimensional records are available upon request.

Related Products

• Side locating blocks and positioning components

• Mold interlocks and locating units

• Core and cavity inserts for injection molds

• Custom non-standard mold base components

FAQ (Technical & Purchasing)

Q1: Is this locating block fully compatible with MISUMI Z50 standard mold designs?
A: Yes. Standard versions follow MISUMI Z50 specifications and can be integrated directly into compatible mold systems.

Q2: Can non-standard dimensions be manufactured?
A: Yes. Senlan Precision supports OEM production based on customer drawings and custom requirements.

Q3: What role does the locating block play in injection molds?
A: It ensures accurate lateral positioning and repeatable mold alignment during mold closing.

Q4: Do you support long-term supply for mold programs?
A: Yes. We specialize in stable, long-term OEM supply of mold positioning components.

Get a Quote

Please provide your drawings or MISUMI reference specifications to Senlan Precision for a technical evaluation and quotation on square side locating blocks and injection mold positioning components.
