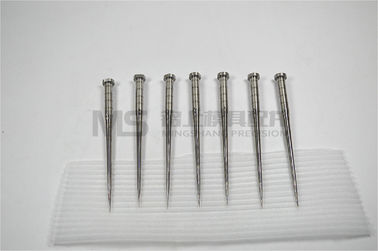

Metal Machined Mold Core Pins 0.005 Tolerance With H13 / SKD61 Material

Metal Machined Mold Core Pins 0.005 Tolerance With H13 / SKD61 Material

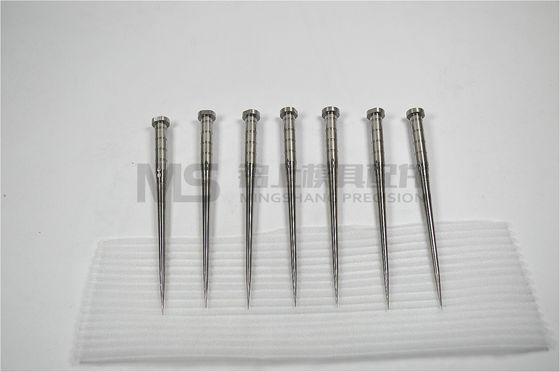

Metal Machined Mold Core Pins 0.005 Tolerance With H13 / SKD61 Material Metal Machined Mold Core Pins 0.005 Tolerance With H13 / SKD61 Material Metal Machined Mold Core Pins 0.005 Tolerance With H13 / SKD61 Material Metal Machined Mold Core Pins 0.005 Tolerance With H13 / SKD61 Material

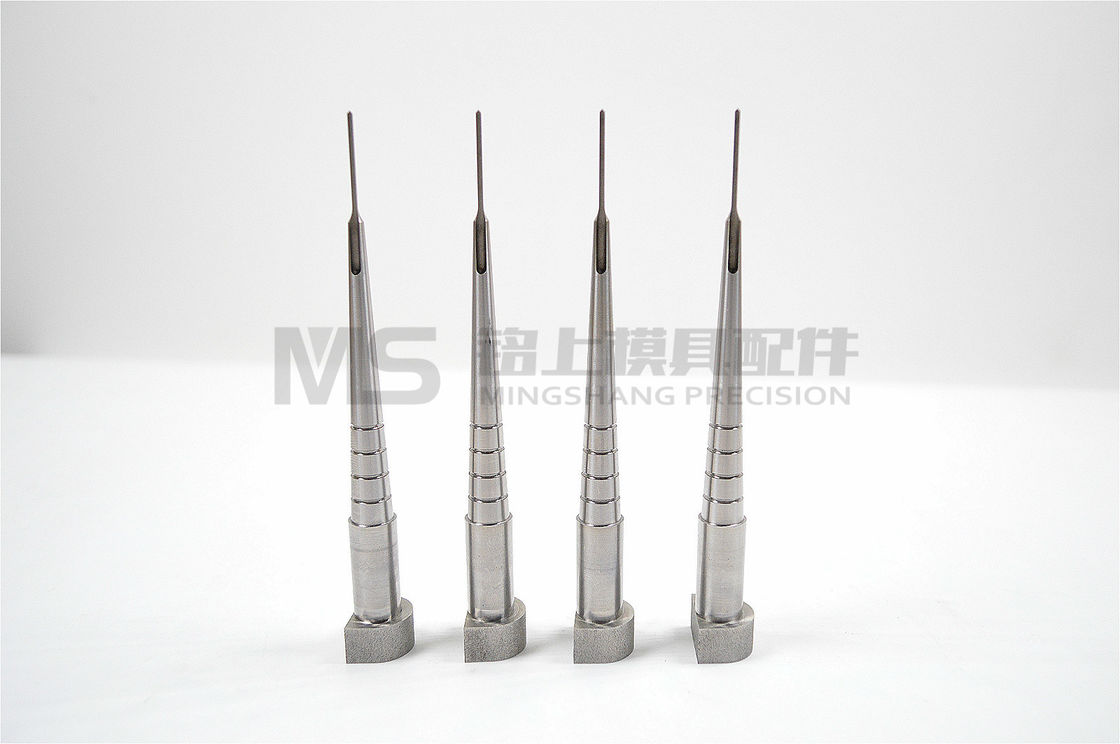

Large Image :  Metal Machined Mold Core Pins 0.005 Tolerance With H13 / SKD61 Material

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1-30USD
Packaging Details: carton and plastic box
Delivery Time: 5 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000pcs/week

Metal Machined Mold Core Pins 0.005 Tolerance With H13 / SKD61 Material

Description
Mould: Plastic Injection Mould Material: 1.2343.1.2344,H13,SKD61,SKH51
Tolerance: +/-0.005 Surface Treatment: Polish
Standard: MISUMI/HASCO/DME/PUNCH Customized: Available
Highlight:

core pin injection molding

,

precision core pins



Customized Precision Mold Core Pins For Medical Consumables Mold



Material



SKD61/DAC/8407/S136/SUS420/STAVAX and more..



Hardness



48-52 HRC or depends on processing materials



Specification

  • Size tolerance within +/-0.002mm
  • Axiality within 0.005mm
  • Surface Roughness within Ra0.6
  • Verticality within 0.005mm
  • The multi-cavity is well-matched
  • Further dimensions,lengths and materials available on request

​Machinery & Equipments

  • CNC machining center; CNC milling machine ,CNC lathe machine
  • Sodick EDM,Sodick Wire-cutting
  • OD Grinding,ID Grinding,Surface grinding machine

Why choose us

  • We as a manufacturer are specialized in all kinds of precsion core pins cavity pins insert pins
  • Good experience of 8 years to make Stamping die parts,Injection die parts,Auto parts, metal-working products.
  • Have advanced production equipments and experienced operators.
  • Good experience of OEM and ODM for our customers.
  • Provide best price, good quality and on-time delivery.

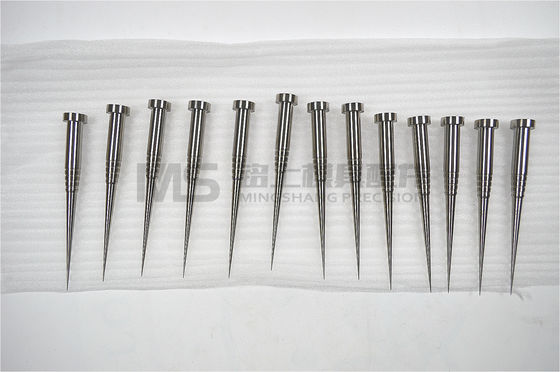

Metal Machined Mold Core Pins 0.005 Tolerance With H13 / SKD61 Material 0

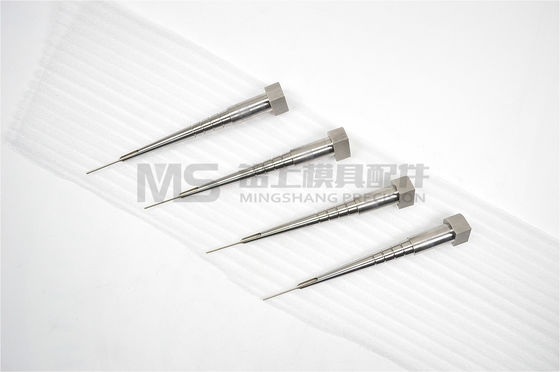

Metal Machined Mold Core Pins 0.005 Tolerance With H13 / SKD61 Material 1

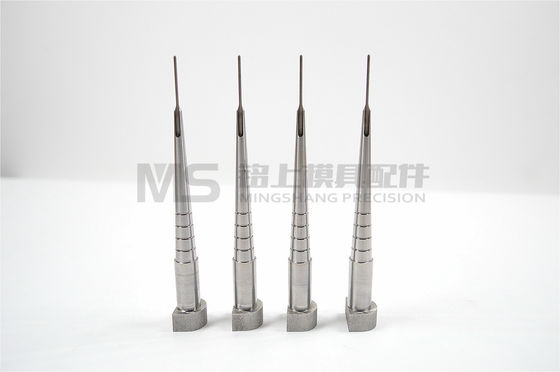

Metal Machined Mold Core Pins 0.005 Tolerance With H13 / SKD61 Material 2

Equipment List:



CNC TAKISAWA NEX-108 0.002mm 4 Japan
WEDM SODICK AQ400LS 0.003mm 2 Japan
CHMER G435 0.005mm 1 Taiwan
EDM CREATOR CJ-235 0.005mm 4 Taiwan
Mirror EDM SODICK Sodick-AM30LS 0.003mm 2 Japan
MAKIMO EDGE2 0.002mm 1 Japan
Desktop lathe JINGCHENG YB-15 0.05mm 4 China
YB-25 0.05mm 2
OD grinder HOTMAN FX-03 0.002mm 5 China
ID grinder HOTMAN FX-05 0.002mm 3
Centeless grinder HOTMAN FX-12S 0.001mm 2 China
Surface Grinder SHUGUANG 614 0.001mm 4 China
618 0.001mm 2
EDM drilling ZENBANG ZB-03 0.01mm 1 Taiwan
Miller TOPINR AVA 0.01mm 2 Taiwan

Payment Terms



Payment terms: T/T,Paypal,Western Union,50% deposit,balance before shipment is available

Shipment: DHL,TNT,Fedex are available



Packing Information



Safe export package: plastic bag+sponge+ cartons with foam packing



How to order:

(1) Send us drawing or standard code & size
(2) We will quote you within 4 hours
(3) Get agreement with price and sign PO or Contract
(4) Make payment in advance

(5)If sample required,we will make sample first

FQA:



(1) Q:Where is your factory located? How can I vist there?

A:Our factory is located in NO.27,ShangLang Road,XiaBian District,Chang'an town, Dongguan China
All our clients from home or abroad are warmly welcomed to visit us at any time.



(2)Q:When can i get the quotation or the reply on your side?
A: The swift response will usually be taken within 4 hours after we got your inquiry or email.If you are very urgent,please let us know so that we will regard your inquiry priority



(3) Q:Do you provide free sample?
A:Yes,we could offer some samples for free, but freight collect.



(4)Q: How can you ensure the quality of the parts that we ordered?
A: Firstly,the pre-testing will be done before every step,secondly,we'll have the final checking for all the parts before the shipment,So believe that a strict quality control system will ensure you the high quality parts.


(5) Q:What will you do after sales?
A:We have after-sales servise, when you received our products,we will follow up and await your feedback.
Any question related to our products,our experienced engineers are ready to help.



If you are interested, please do not hesitate to contact with us! Thank you!
