Product Details:
|
| Product Name: | Rack Mold Parts | Color: | Silver |
|---|---|---|---|
| Size: | Customized | Tolerence: | +/-0.01-0.005mm |
| Usage: | Medical Tube Bottle Embryo / Cosmetic Packing | Machining: | Wire Cutting |
| High Light: | 42Cr Core Pull Injection Molding,50 HRC Core Pull Injection Molding,Core Pulling Precision Mould Parts |
||

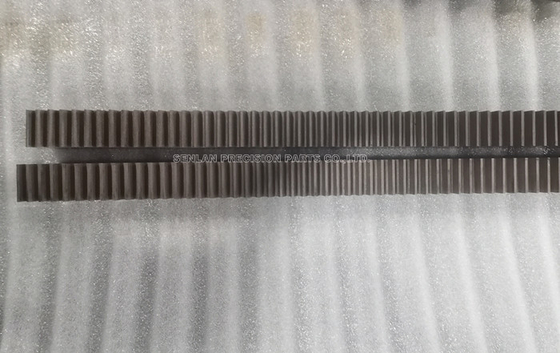

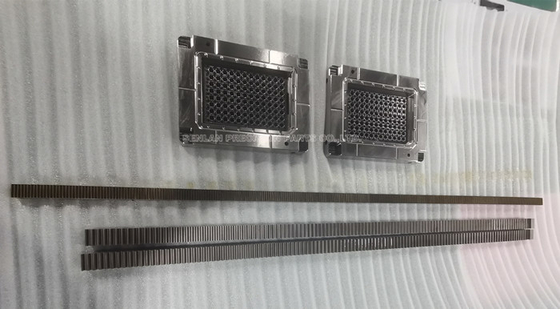

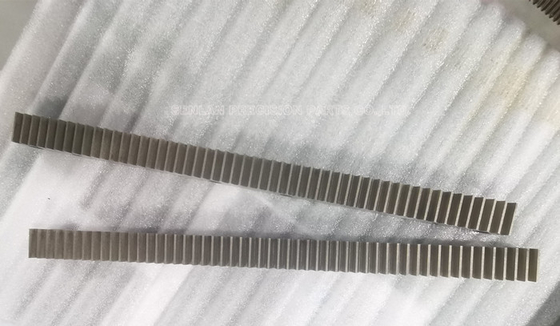

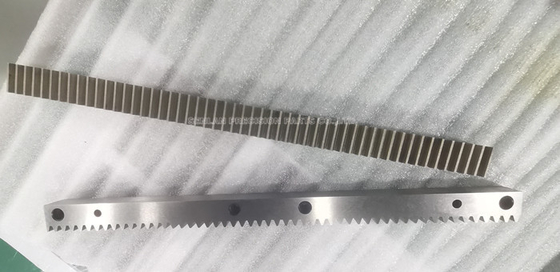

42Cr Material Hardness 48-50 Gear Rack Mold Parts For Long Distance Core Pulling Of Molds
A rack and pinion is a linear actuator consisting of a pair of gears that convert rotational motion to linear motion. This combination of rack and pinion and spur gears is often referred to as "rack and pinion". Rack and pinion combinations are often used as part of a simple linear actuator, where rotation of a manually or motor-driven shaft is translated into linear motion.
Spur Gear rack straight teeth Gear rack Precision cnc rack Toothed rack
The first is: do not heat-treated
The second: be quenched
Third: for precision equipment, and more for export
Fourth: the high-frequency quenching and tempering treatment (high hardness and high wear personal use is recommended)
Processing technology
Product description Gear Rack Mould Parts:
| Hardness | 48-50 HRC or Depend on the material |
| Heat treatment | Available |
| Service | Made-to-order |
| Surface treatment | TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available |
| Closest tolerance | + - 0.005mm |
| Polishing | close to Ra0.2 |
| processing technology |
Die polished, Polishing, Plating titanium, Lettering, Wire EDM, Electro-discharge machining, Titanize, Heat treatment, Fast wire cutting, Slow wire cutting, Head annealing, Sintering. |
Senlan Company Main Products
1.Core pin,cavity pin,insert pin etc
2.HSS punch ,Precision punch ,Special-shaped punch
3.Ejector pins,ejector sleeve,two-stage ejector pins etc
4.Guide pillars ,Guide bushings ,Guide post set
5.Slide Core Units,Latch locks,locating Series
Why Choose Us
1. One-stop service.
2. Competitive price.
3. Special corporate culture.
4. Excellent quality control.
5. Satisfy your requirement about product that you needed.
6. Rich experience on mould industry and a wide range of products.
7. Outstanding merchandise and considerate online customer service.
Company Information
Founded in 2012. Senlan Precision Mould provides global JIS, DIN, AISI and so on standard mould parts, special custom-built mould components and solution for global plastic mould & Die casting mould master . We are manufacturing factory, and selling of global Standard mould parts, such as Ejector Series (pins, sleeves, two-stage ejector pins etc.), Slide Core Units, Latch locks, Locating Series, Date Stamps, Slide Retainers, Cooling Series and mould counter etc.
We offer our customers a comprehensive selection of commodities and services. With more than 15 years of experiences, 6 manufacturing plants, a strong professional team in global Standard mould parts market and a deep insight into customers’ requirements, we have the competition, capability to serve you.
Manufactuing Equipment
| CNC | TAKISAWA | NEX-108 | 0.002mm | 4 | Japan |
| WEDM | SODICK | AQ400LS | 0.003mm | 2 | Japan |
| CHMER | G435 | 0.005mm | 1 | Taiwan | |
| EDM | CREATOR | CJ-235 | 0.005mm | 4 | Taiwan |
| Mirror EDM | SODICK | Sodick-AM30LS | 0.003mm | 2 | Japan |
| MAKIMO | EDGE2 | 0.002mm | 1 | Japan | |
| Desktop lathe | JINGCHENG | YB-15 | 0.05mm | 4 | China |
| YB-25 | 0.05mm | 2 | |||
| OD grinder | HOTMAN | FX-03 | 0.002mm | 5 | China |
| ID grinder | HOTMAN | FX-05 | 0.002mm | 3 | |
| Centeless grinder | HOTMAN | FX-12S | 0.001mm | 2 | China |
| Surface Grinder | SHUGUANG | 614 | 0.001mm | 4 | China |
| 618 | 0.001mm | 2 | |||
| EDM drilling | ZENBANG | ZB-03 | 0.01mm | 1 | Taiwan |
| Miller | TOPINR | AVA | 0.01mm | 2 | Taiwan |
Package
Out packing :cartons with foam packing or Wooden box
Inner packing: packed by sponge with plastic bag
Payment Terms
Payment terms: T/T,Paypal,Western Union,50% deposit,balance before shipment is available
Shipment: DHL,TNT,Fedex are available
Delivery
Shipping by sea or by air
FAQ
Q: What is your quote elements?
A: Product standard: model + size, or customer Drawing.
Q: How can you ensure the quality?
A: We have QC department to control the quality from the begining of production until goods finish.
Q: If you make poor quality goods,will you refund our fund?
A: As a matter of fact, we wont take a chance to do poor quality products. Meanwhile, we manufacture goods quality products until your satisfaction.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% QC test and QC report for mold parts before delivery.
Q. Can you produce according to the samples or drawings?
A: Yes, we can produce parts by your samples or technical drawings
