Product Details:
|
| Hardness: | HRC60 | Accuracy: | +/-0.005mm |
|---|---|---|---|
| Surface Treatment: | Polished, Tin, Ticn, Crn, Dlc | Product Name: | Thread Core |
| Quality: | High Quality | Shaping Mode: | Plastic Die Mould |
| Product Material: | Customize | Product: | Plastic Injection Mold |
| Standard: | JIS, DIN, En, ASTM, AISI | Design Software: | Autocad, Autocad/Ug/Solidworks, CAD |
| Size: | Customize | Color: | Black |
| Feature: | Durable | Usage: | Injection Plastic Mold Parts |
| Delivery Time: | 5-20 Days | ||
| High Light: | Stainless Steel Core Insert Mould Parts,High Hardness Mold Core Insert,Precision Grinding Mold Core Insert |
||

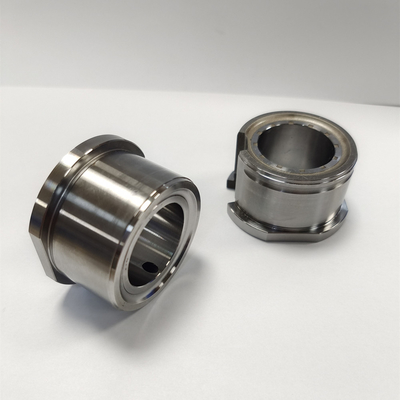

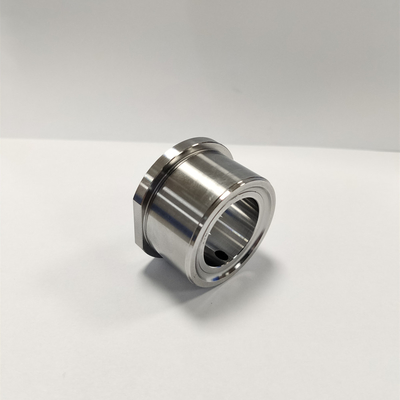

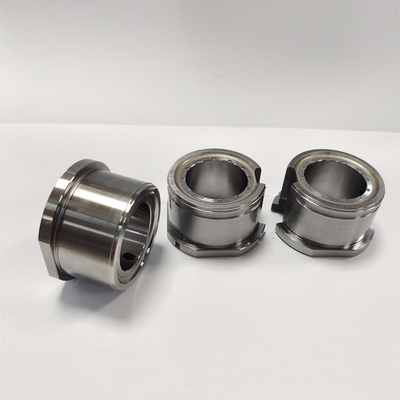

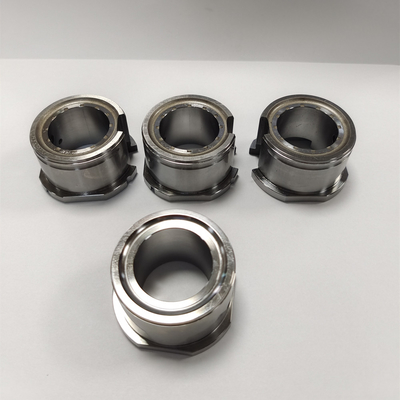

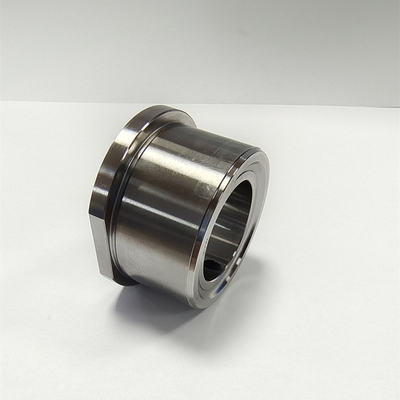

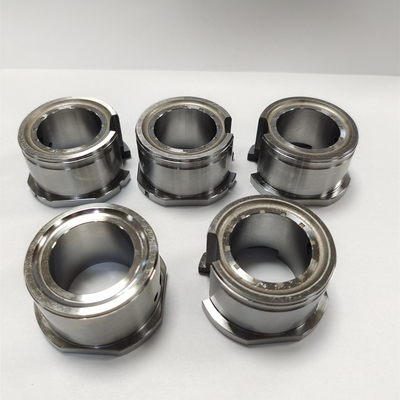

The Description Of Mold Core Insert
When we manufacture the mold core insert and cavity inserts during the mold manufacturing, there are some dimensions that we need to manufacture with some tolerances so that it fits well in the pocket of the insert plate or mold cavity/core
And this will save some work when we will fit the mould cavity & core, high tolerance, and good manufacturing technology will save lots of time for the mold-master, below are some manufacturing mold core /cavity insert Guideline that we need to pay attention to make high quality plastic mold
When we make the corner radius In the manual milling machine, make a 0.2mm big step there, after hardening, we don’t have to grind on the corner when we fit the insert
For the outside dimension of the mold cavity/core Inserts, the tolerance should be +0/-0.015mm, this will be easy fit into the pocket, smooth and good quality
The tolerance for the hole to the sprue bushing should be H7 (0/+0.015mm)
The depth of the treading should be 1.5-2 multiply by the diameter of the tread. In this case for M8 screw, the depth of the treading should be 1.5 to 2 multiply by 8, equal to 12-16mm
The guidance of the ejector pin should be about 15-20mm long, this will make sure that the ejector pins ejecting smoothly with long lifetime
Specification:
Our Service:
1. We'll offer unique solutions to your products with competitive price, good quality and best service for precision customized SKD 61 mold components mold core for plastic injection mould parts
2. The quotation will be provide you in 24 hours after we get your drawings in format PDF or 3D,or samples
3. Small quantity is acceptable
4. Fast sample making. We can finish the sample in 3 days if the parts don't need any surface treatment
5. The delivery time is 3-15 days generally,it depends on the quantity and surface treatment
6. Full inspection
Order Flow Chart:
FAQ:
Q1: Are You A Manufacturer Or Trading Company?
A: We are a mould manufacturer, founded in 2006
Q2: Where Is Your Company Or Factory?
A: We are located in dongguan city, Guangdong Province, we have our own factory
Q3: Can You Design?
A: We are happy to do product and mold design for you, and it is free. the complete product 2D & 3D and mold 2D & 3D will be provided to the customer after the order
Q4: What Kind Of Mold Can You Make?
A: We can manufacture all kinds of injection mold, especially with rich experience, home mold
Q5: What Kind Of Documents Can You Accept?
A: We can accept different types of files, such as DXF, DWG, IGS, IGES, STP, PRT, X_ T,PDF
Q6: What Kind Of Materials Do You Use To Inspect Molds And Production?
A: S136, SKD61, Stavax, Bohler, 1.2344, 1.2312, Stainless Steel
Q7: How To Send Samples?
A: The price we offer includes the cost of sample delivery, 2 times more than that DHL, UPS, EMS, FedEx or TNT.
