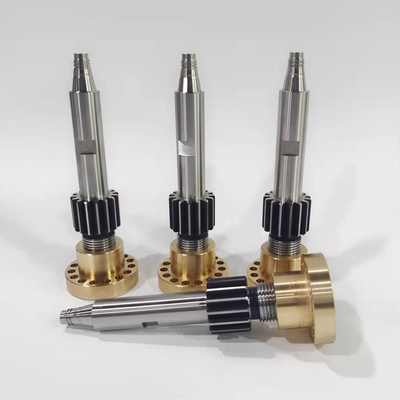

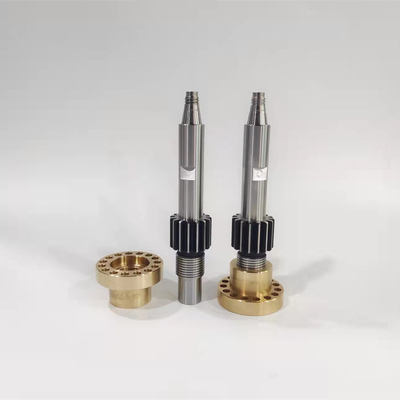

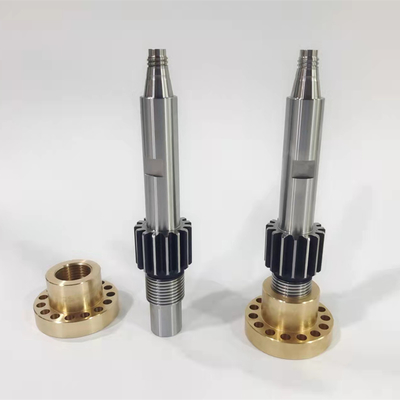

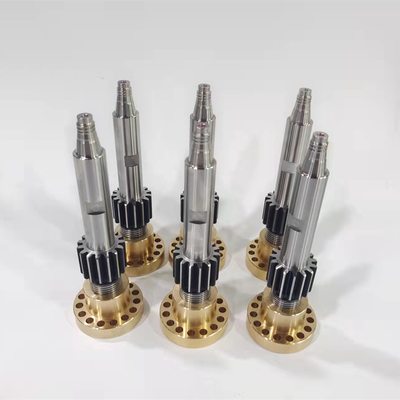

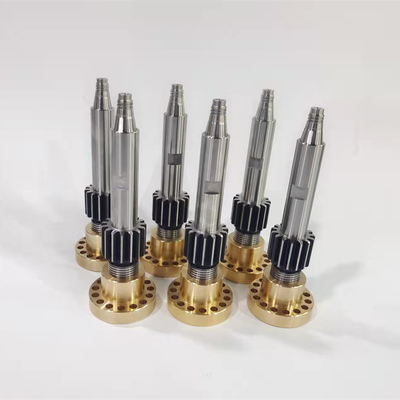

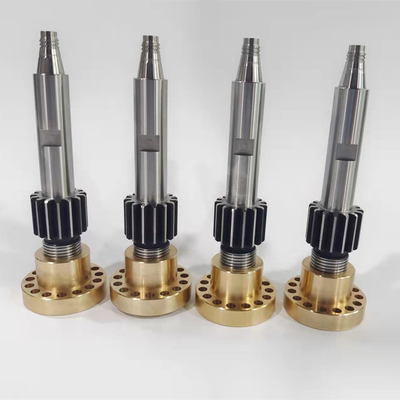

CNC Machining Assab Die Steel Thread Core Mold Tooling for Injection Die / Mould

CNC Machining Assab Die Steel Thread Core Mold Tooling for Injection Die / Mould
CNC Machining Assab Die Steel Thread Core Mold Tooling for Injection Die / Mould
CNC Machining Assab Die Steel Thread Core Mold Tooling for Injection Die / Mould CNC Machining Assab Die Steel Thread Core Mold Tooling for Injection Die / Mould CNC Machining Assab Die Steel Thread Core Mold Tooling for Injection Die / Mould CNC Machining Assab Die Steel Thread Core Mold Tooling for Injection Die / Mould CNC Machining Assab Die Steel Thread Core Mold Tooling for Injection Die / Mould CNC Machining Assab Die Steel Thread Core Mold Tooling for Injection Die / Mould CNC Machining Assab Die Steel Thread Core Mold Tooling for Injection Die / Mould

Large Image :  CNC Machining Assab Die Steel Thread Core Mold Tooling for Injection Die / Mould

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO 9000
Model Number: TC-006
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Negotiable
Packaging Details: Coated with Anticorrosive Oil, Packed in Carton Box
Delivery Time: 15Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000Pcs/Week

CNC Machining Assab Die Steel Thread Core Mold Tooling for Injection Die / Mould

Description
Hardness: HRC60 Accuracy: +/-0.005mm
Surface Treatment: Polished, Tin, Ticn, Crn, Dlc Product Name: Thread Core
Quality: High Quality Shaping Mode: Plastic Die Mould
Product Material: Customize Product: Plastic Injection Mold
Standard: JIS, DIN, En, ASTM, AISI Design Software: Autocad, Autocad/Ug/Solidworks, CAD
Size: Customize Color: Black
Feature: Durable Usage: Injection Plastic Mold Parts
Delivery Time: 5-20 Days
High Light:

0.005mm Precision Steel Thread Core

,

Assab Die Steel Thread Core

,

Injection Mould Thread Core

What's Suitable for Core Insert Molding


Simply put, Core insert molding should be evaluated for any part that contains a threaded hole. An electronics housing unit or medical instrument case with a bolt-on cover are good examples. Knobs, handles, or dials that screw onto a threaded stud are also examples, as is a plastic air or hydraulic manifold requiring additional strength in threaded areas. In fact, almost any plastic component that attaches to a mating piece with screws or bolts will benefit from molded fasteners.



A rotating part such as a fan blade or a drive gear is another good candidate for core insert molding. Here, a bronze or brass bushing is molded into the part and serves as the bearing surface, greatly improving product life over non-bushed parts. A metal surgical saw that calls for a plastic handle could be core insert molded, size permitting. Wheels and sprockets, pulleys and augers, most any plastic part that requires greater strength or wear characteristics in certain areas is quite likely a match for core insert molding





Specification



Product Name

Plastic Mold Parts

Product Material

S136, SKD61, 1.2344, 1.2312, 1.2379. Stavax

Product

Medical, Cosmetic, Auto Parts, Daily Packaging etc

Design Software

UG,Pro E Solidwork,AutoCAD,Moldflow....

Mold Base

HASCO ,DME standard etc

Mould Cavity

Singe or multi cavity

Mold strandard parts

DME, HASCO, etc.

Runner

Hot runner, Cold runner

Surface Treatment

Coating, Nitriding etc

Hardness of the steel

20~60 HRC

MOQ

1set

Inspection

As customers’ requirements

Lead time

15-35days for mold, plastic products according to quantity







FAQ:



Q1: Are you a trading company or a manufacturer?
We are manufacturer for sure



Q2: What is the process of an order?
Send your detailed request → Feedback with quotation → Confirm quotation & make payment → Confirm drawings → Star production→Quality checking→Packing →Delivery →After Service →Repeat Order



Q3: How to pay for the order?
TT or L/C



Q4: What is the shipping method?
Most of goods were sent out by international airway express company like DHL,UPS,FedEx,TNT. Usually takes around 3-4 working days (door to door service). We also can arrange shipment via sea way



Q5: Can you give me help if my products are very urgent?
Yes, we will try our best give you help. Because we have our own factory to produce. We can flexible to adjust our production schedule



Q6: I want to keep our design in secret, can we sign NDA?
Sure, we will not display any customers' design or show to other people
