Product Details:
|
| Hardness: | HRC58 | Accuracy: | +/-0.005mm |
|---|---|---|---|
| Surface Treatment: | Polished, Tin, Ticn, Crn, Dlc | Product Name: | Product Name |
| Quality: | High Quality | Shaping Mode: | Plastic Injection Mould |
| Product Material: | Bohler | Product: | Medical Plastic Mold |
| Standard: | JIS, DIN, En, ASTM, AISI | Design Software: | Autocad, Autocad/Ug/Solidworks, CAD |
| Size: | Customize | Color: | Black |
| Feature: | Durable | Usage: | Plastic Parts |
| Delivery Time: | 5-20 Days | ||
| High Light: | Die Steel Mold Core Plate,Precision Polished Mold Core Plate,HRC58 Core Plate In Mould |
||

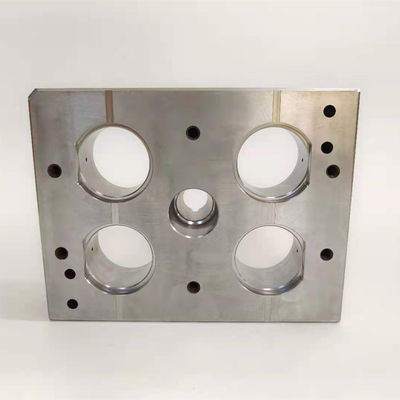

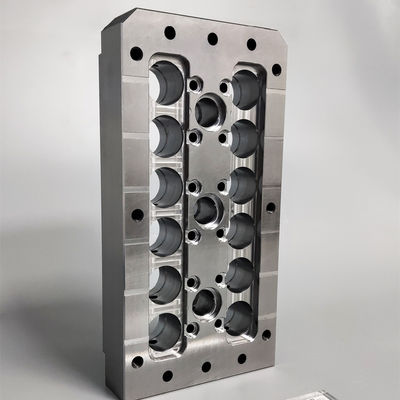

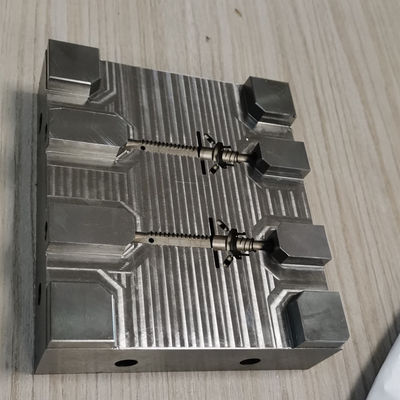

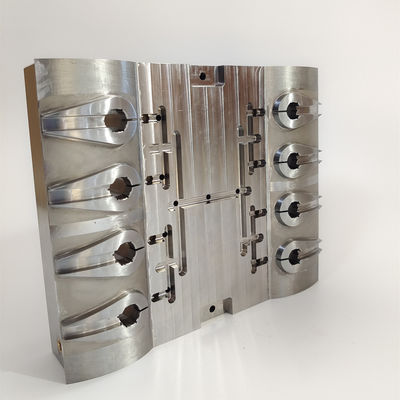

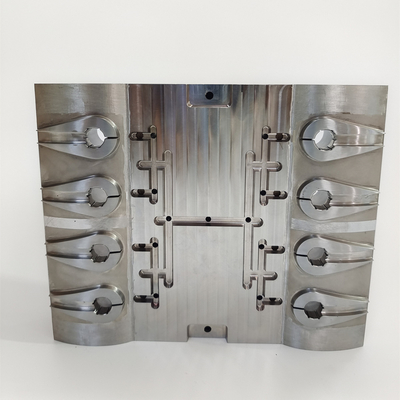

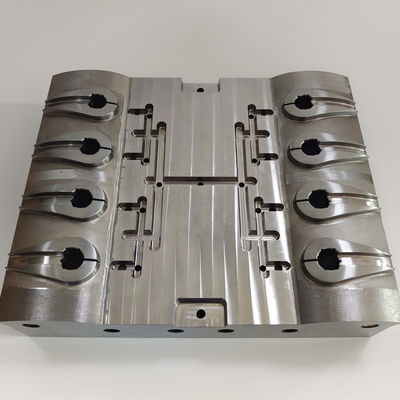

Customize Precision Polished Die Steel Mold Core Plate for Hot Runner Plastic Injection Mold Tooling
Specification:
| Lead Time | 3-5days |
| Color | White, light yellow, black, and can be customized |
| Materials Avaliable | ABS, POM, PMMA, PP, PC, PE, PA, PPS, PVC, Aluminum, Brass, Copper, etc |
| MOQ | 1 piece |
| Files Format | igs stp stl x-t OBJ |
| Surface Treatment | polish, painting, silk-printing, UV coating, electroplating,etc |
| Business Type | OEM manufacturer |
| Shipment | UPS,DHL,FEDEX,TNT |
| Tolerance | ±0.2mm(L≤100mm) , ±0.2%(L>100mm) |
| Application | Car, Household Appliances, Furniture, Commodity, Electronic… |
Introduction Of Mold Core Plate:
When making a mold design, the following parts should be included back plate for cavity and core side, ejector plate, retaining plate, guiding pillars, spacer blocks, mold cavity plate and mold core plate.
Designing a mold is a very complicated and important part of the injection molding process. when designing a mold, the designer needs to take many factors into account in addition to the actual shape of the mold. warpage, shrinking, venting, residual stress and runner size are just a few of the factors that must be weighed while in the design stage. the full mold in the figure below has a property of steel and includes a back plate that holds the movable side of the mold like spacer block, support plate, mold core plate, cavity plate and ejector mechanism to the movable platen of the injection machine. the design of the back plate for the mold has a dimension of (156mm x 156mm) and a depth of 17mm. then it’s the ejector plate often referred to as the ejector covet plate which provides backup for pins set into the ejector retaining plate.
The retaining comes on top of the ejector plate and functions in holding ejector pins. the travel space for the ejector plates and ejector pins is provided by the spacer block. to give the plates strength and rigidity it’s smart to add a support plate. the support plate is
followed by the mold core plate which holds the core element which is the mating half of the cavity. the mold core plate is inserted to the cavity which is where the plastic material is formed. To secure
the stationary side of the mold to the machine it’s necessary to have the clamping plate or also known as back plate for the core.
Features:
1.High quality with pretty competitive price;
2.Good services and excellent communications;
3.Advanced technology;
4.Rich experience in export;
5.Highly qualified team with one heart.
Company Profile:
Senlan Precision mould Co., Ltd is committed to the R & D, design and manufacturing of molds, providing customers with one stop service from product design, mold manufacturing, mold production to assembly, product design and mass production solutions for customers. program. the company has mold development, design, manufacturing and injection molding core technology. at the same time of developing new products, the company also develops mold development of new products. from the perspective of mold development and design, the company can put forward suggestions on the structure of customers' final products, so as to achieve the goal of carrying out corresponding design and products with customers for the first time. our professional technology and excellent service have won the unanimous praise of our customers. products involved in automobile mold, daily necessities mold, household appliances mold, turnover box mold, tray mold. after years of hard work and development, the company has continuously increased R & D investment and new product development, actively applied ERP and other advanced information management technology and tools, striving to achieve international standards and improve the core competitiveness of the enterprise. according to the different needs of customers, the company can produce molds that meet different standards at the same time, such as HASCO, DME, Misumi, etc. these molds are now exported to many countries in the world.
FAQ:
Q1. What's Your Advantage?
A: Honest business with competitive price and professional service on export process.
Q2. How I Believe You?
A : We consider honest as the life of our company, we can tell you the contact information of some other clients for you to check our credit.
Q3. Can You Give Warranty Of Your Products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
Q4. Where Are Your Company? Can I Visit Your Factory?
A: Sure, welcome to you visit our factory at any time.
Q5. How About The Delivery Time?
A: Within 7-15 days after the production will be started.
Q6. What Kind Of Payment Does Your Company Support?
A: T/T and L/C is all accepted if you have other payment, please contact me.
