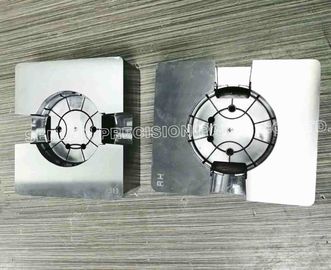

P20 Material Plastic Mould Parts Inserts Mold Core With EDM Polished Process

P20 Material Plastic Mould Parts Inserts Mold Core With EDM Polished Process
P20 Material Plastic Mould Parts Inserts Mold Core With EDM Polished Process P20 Material Plastic Mould Parts Inserts Mold Core With EDM Polished Process

Large Image :  P20 Material Plastic Mould Parts Inserts Mold Core With EDM Polished Process

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Model Number: SL-262
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000pcs/week

P20 Material Plastic Mould Parts Inserts Mold Core With EDM Polished Process

Description
Parts Name: Plastic Mould Parts Material: P20
Hardness: / Application: Injection Mold
Tolerance: +/-0.01mm-+/-0.005mm Size: Customized
High Light:

injection mold components

,

plastic moulded components

P20 Material Plastic Mould Parts Mold Inserts Mold Core With EDM Polished Process



Mold inserts machining process
1) Prepare materials;
2) Milling machine processing: drilling water transport holes (the distance between the deepest part of the water transport plug and the horizontal water transport holes is 3-4mm), threading holes, drilling and tapping screw holes, drilling and reaming pinholes, mold number, reference angle 3. Make way for the platform;
3) CNC machining: rough machining;
4) Heat treatment: indicate the hardness requirements;
5) Grinding machine processing: Grinding six-sided square ruler, the shape is ground to match the frame size;
6) If the mold core needs CNC finishing, arrange CNC finishing, if the cavity has font and model number, it needs to be engraved;
7) Wire cutting: middle wire processing insert hole, oblique top hole, thimble hole, chisel hole, etc .;
8) Electrical discharge machining: single machining according to drawings and pulse instructions;
9) Polishing: write the roughness and requirements of the polishing on the process card, and mark the polished area with a marker on the workpiece. If there is a mirror surface requirement, if the period is too late, you can first rough rough and wait for the test mode before fine polishing
10) Assembly.



Senlan Indroduction plastic mould parts.pdf



Fetures

Materials P20
Industry Standards DIN, JIS, AISI, GB
Minimum Order Quantity (MOQ) 1 piece
Production Capacity 2000 pieces per week
Lead Time 7-20 days from deposit
Payment Term T/T, Paypal, Western Union, Cash
Quality control Hardness tester, Callipers, Alitimeter, CMM, Projector, 2.5D
Machines/equipment CNC lathes, OD Grinder, EDM, CNC Milling
Other Service OEM &OEM, Customized Specification, One to One Communication, Free Samples
Additional 1) Sample Order and Small Order are acceptable;
2) The methods of delivery: DHL,EMS,UPS or Fedex (fast and safer)
3) Located in manufacturing base of china-dongguan city,we also help customer design according to customers' requirements and products' application.
Our Website http://www.precision-mouldparts.com



Tolerance
+-0.005mm, Depends on customer’s requirements.

Drawing Format
PDF/DWG/DXF/IGS/STEP,etc

Packaging
Inner packing with recycle plastic box and anticorrosive oil, outer with sponge and PE bags, or as customer's requirements.

Application field
Automobile parts, medical, daily necessities packaging, cosmetic packaging, etc.

Sales team
Only with teamwork can leadership be maintained.
Team spirit is a company’s core competitiveness. Only team can lead the way, only strong team can go further.

Main products
SENLAN manufactures a full line of standard and customized ejector pins,punches,insert pins ,cavity pins,core pins,mold core, and other mould accessories and die parts etc.



Service

1. Providing professional advises and operation.
2. Customer service online with 24 hours.
3. Full inspection on all the products before shipment.
4. Good After-sale service.
5. Strict quality control.
6. Shipping & Price Term: EXW my factory; FOB any Chinese port; CIF any destination port.
7. OEM and ODM are all available.

Product display
Senlan Precision Mould Parts Co., Ltd, is a professional OEM die casting parts manufacturer. We provide tooling design,tooling fabrication, die casting, secondary process, precision machining,T6 treatment,finish treatment and assembling.
We have a team with rich quality control experience which helps us meet customers' requirements and satisify the customers' demands .High quality, competitive price, quick response are our missions.


FAQ

Q: What do you need to provide a quote?
A: Please kindly send us the drawing or sample of your product. Details below should be included,
1.Materials 2. Surface Finish 3. Tolerance 4. Quantity 5.other special requirements.



Q: How long is your delivery time?
A: It is 7-30 days produce an order from MOQ to 40HQ container. But the exact delivery time might be depend on different quantity.



Q: Do you provide samples ? Is it free or extra ?
A: Yes, we are honored to offer you samples or raw material for quality inspection,but do not pay the cost of freight.



Q: How does your factory do regarding quality control?
A: Quality is priority. Senlan always attach great importance to quality control from the very beginning to the end of the production.Before processing we need to test the material first. During the processing we use bar code to tracking the proceeding.We will make 100% inspection before packing and delivery to make sure the products 100% meet your requirements.We will keep the production drawing and test report with 3 months, if you found any problems when received the parts, please contact us at the first time, we will give you a solution within 8 hours.



P20 Material Plastic Mould Parts Inserts Mold Core With EDM Polished Process 0
