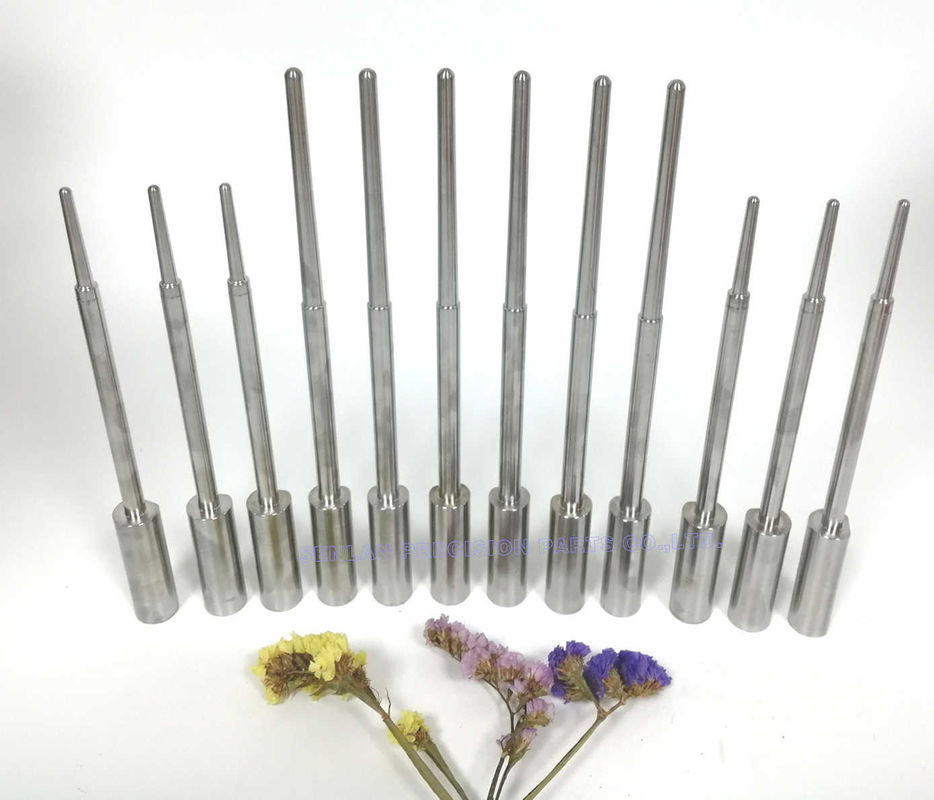

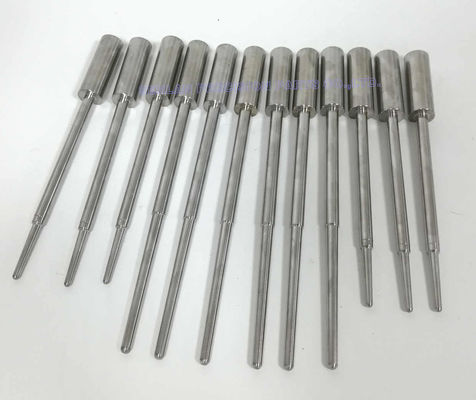

1.2343 Die Casting Mold Core Pins / High Pressure Die Casting Components

1.2343 Die Casting Mold Core Pins / High Pressure Die Casting Components
1.2343 Die Casting Mold Core Pins / High Pressure Die Casting Components 1.2343 Die Casting Mold Core Pins / High Pressure Die Casting Components

Large Image :  1.2343 Die Casting Mold Core Pins / High Pressure Die Casting Components

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Model Number: SL-103
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 5-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000pcs/week

1.2343 Die Casting Mold Core Pins / High Pressure Die Casting Components

Description
Product Name: Die Casting Mold Parts Material: 1.2343
Tolerance: +/-0.01mm Hardness: 46-48HRC
Application: Die Casting Mold Dimensions: Customized
High Light:

plastic injection mould parts

,

injection molding parts

,

Die casting mould parts 1.2343

1.2343 Die Casting Mold Parts Core Pins High Pressure Die Casting Components



Round shape core pin is die-casting parts,which is mostly used for threaded bottom holes and pin bottom holes.For the core pins, we use Japan imported materials and Japan imported heat treatment equipment.Depending on the size of core pin,a single central cooling hole or stepped cooling hole can be customized.



Senlan Indroduction die casting mold parts.pdf



Product Detail of core pins

Material 1.2343
Hardness 46-48HRC or Depend on the material
Heat treatment Available
Service Made-to-order
Surface treatment TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Closest tolerance + - 0.01mm
Polishness Ra0.6
Axiality 0.005mm
Verticality 0.005mm



Application filed of core pins
Medical/Packaging/Aerospace/Electronics/ Die casting dies/Bottle cap/Auto/Cosmetic etc......

Drawing Format
of core pins
PDF/DWG/DXF/IGS/STEP,etc


Payment Terms
T/T,Paypal,Western Union,50% deposit, balance before shipment is available

Package
of core pins
Coated with anticorrosive oil, packed in carton box

Shipment ways
DHL,TNT,Fedex are available



Machinery & Equipments

  • CNC machining center; CNC milling machine ,CNC lathe machine
  • Sodick EDM,Sodick Wire-cutting
  • OD Grinding,ID Grinding,Surface grinding machine



Service

(1) Team work-We have experienced engineers, programmers, QC, sales and management team.  Every member is firmly connected to well fulfill customers' orders.

(2) Skill–We hold skill explore training every month . Engineers, programmers and workers share new ideas and skills together to continuously improve machining skill.

(3) Excellent communication – Sales members are fluent English speaking, proactive and have knowledge about machining, They can easily understand what you want.



Main products
1.Core pin,cavity pin,insert pin etc
2.HSS punch ,Precision punch ,Special-shaped punch
3.Ejector pins,ejector sleeve,two-stage ejector pins etc
4.Guide pillars ,Guide bushings ,Guide post set
5.Slide Core Units,Latch locks,locating Series





FAQ
Q: Are you trading company or manufacturer ?
A: We are mould parts manufacturing, providing precision mould parts, die casting mold parts, plastic injection mould parts, machined parts, etc.


Q: How do you need to provide a quote?
A: Please kindly send us the drawing of you products. Details below should be included:
a. Materials
b. Surface finish
c.Tolerance
d. quantity
e.drawings (3D/CAD/2D drawing)
(Please be noted that these are essential for our quoting. We couldn't quote the specific price without any of them.)


Q: How do I know about the delivery?
A: We will inform you of the tracking number once we get it from shipping agent. Also we will keep updating the latest shipping information for you.
