Product Details:
|
| Parts Name: | Locating Ring | Material: | S45C |
|---|---|---|---|
| Tolerance: | +/-0.05mm | Standard: | DIN/ISO/ANSI |
| Surface Treatment: | Polished | Application: | Injection Mould |
| Color: | Plain | ||
| High Light: | location block,tapered locating pins |
||

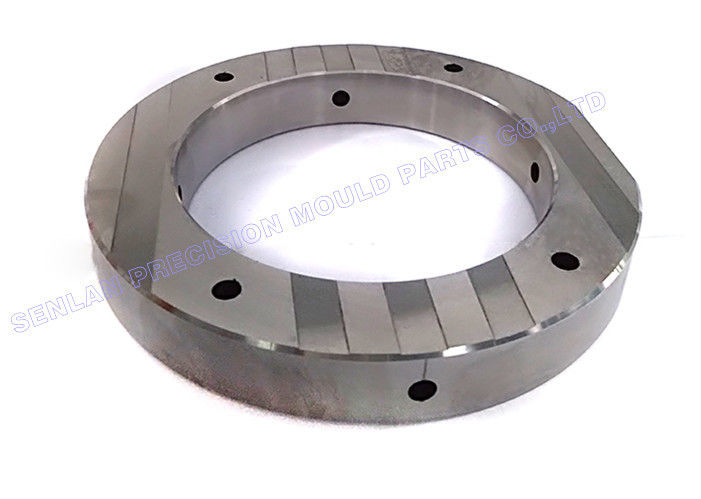

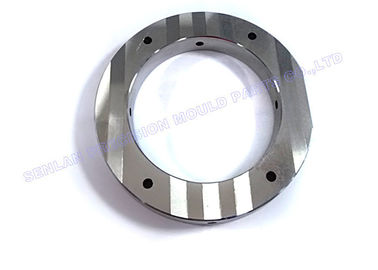

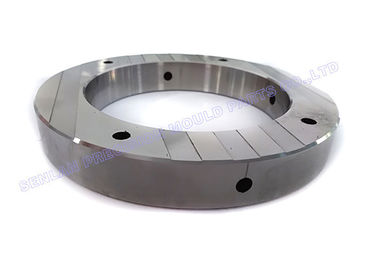

Non - Standard S45C Steel Locating Ring For Plastic Injection Mould Component
A positioning component and a location ring thereof can be assembled on a fixing portion of a component, so that the component has a pre-assembled state, the positioning component comprises a fixing pin and a positioning ring; and the fixing pin is formed with a threaded section at one end.
An annular groove is formed adjacent to the threaded portion, and the fixing pin is sleeved with a spring; the inner edge of the positioning ring is formed with a plurality of positioning claws, and the plurality of positioning claws are arranged around a hollow sleeve portion, plural the supporting claw protrudes downward along the circumference of the positioning ring; the fixing pin sleeves over the spring, and the threaded section passes through the fixing portion of the member, and the positioning ring is sleeved on the fixing pin by the sleeve portion.
The fixing portion is sandwiched between the spring and the positioning ring, and the positioning claw is placed in the annular groove of the fixing pin so that the fixing pin cannot be separated from the fixing portion, and the clamping jaw is clamped to the periphery of the fixing portion. The utility model can position the two separating members in the longitudinal direction and the lateral direction, thereby avoiding the improper relative movement of the two members.
Product Detail
| Product Name | CNC machined Locaking ring |
| Material | S45C |
| Heat Treatment | 56-58HRC |
| Color | Natural |
| Standard | DIN ISO ANSI |
| MOQ | 10pcs |
| Demension | As drawing |
| Drawing Format | CAD/PDF/DWG/IGES/STEP |
Competitive in Price
As a manufacturer, we are looking for long-term business partners. Therefore we can provide very competitive market price.
Quality in Material
We have stable raw marterial supporting us, to provide variable types and qualified materials into production.
Such as SKD-11,SKH-51,Tungten carbide,ASP-23,ASP-60 etc., are our regular materials in stock.
Precision in Size
How precision we can do in size is can meet MISUMI standard.
Fast in Delivery
Because of well-organized management in Surpass, usually it only takes 15 days to delivery finished goods to customer.
Main Markets
North America, South America, East Europe, West Europe , North Europe, South Europe, South Asia
Packaging & Shipping
| Packaging Contents | Plastic bags, cartons or according to customer's requirement |
| Delivery Time | Normally 3-7 days after payment |
| Delivery Methods | EMS, DHL, Fedex, TNT or by sea |
| Port | Shenzhen |
Service
Quality
FAQ
1.Are you trading company or manufacturer?
We are factory.
2.When can I get the price ?
We usually quote within 24 hours after we got your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
3.How can I get the quote ?
First, we need our customers provide their 2D, 3D drawings. After receiving your drawings, our professional team will draw and program according to our customer's drawings and requirements. Finally, we will give our customers quotation reports.
4.How long is product making time?
It is according to the size and complexity of the product. In general, it takes about 7-15 working days.
