Product Details:
|
| Standard: | MISUMI/HASCO/DME/PUNCH | Tolerance: | +/-0.005mm |
|---|---|---|---|
| Parts Name: | Ejector Pin And Sleeves | Surface Treatment: | Polished |
| Material: | 1.2343 | Application: | Plastic Injection Mould |
| High Light: | sleeve ejector pin,mould ejector pins |
||

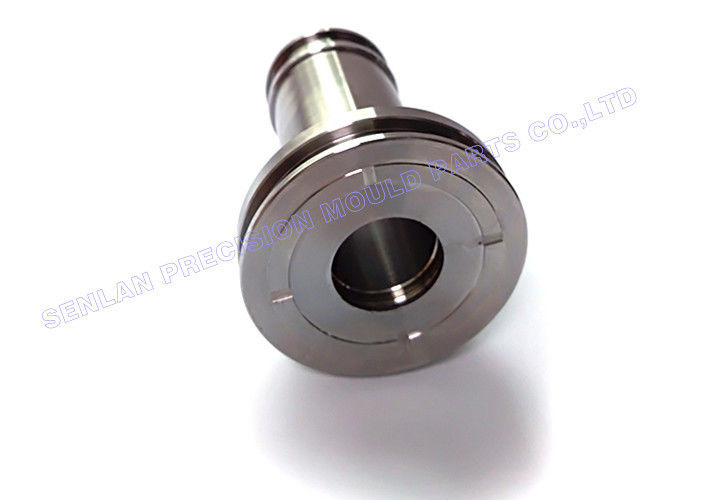

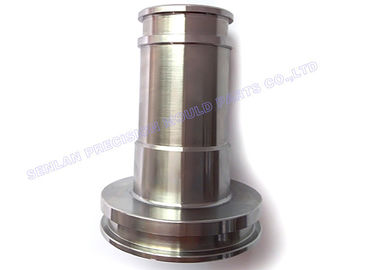

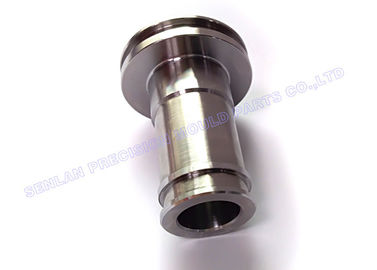

Round Head Ejector Pins And Sleeves Insert Parts Polished Surface Treatment
The sleeve is also called the top tube, hollow sleeve pin.The sleeve is divided into a straight sleeve, a ladder sleeve etc.
The sleeve is a round through hole or a blind hole in the product, and the glue position must be provided with a metal fitting for the ejection device.It consists of a cylinder and a sleeve pin.
The sleeve is mounted on the ejector plate, and the sleeve pin is mounted on the bottom plate. After the mold is opened, the glue position on the sleeve pin is ejected by the sleeve.The sleeve, the hole or the shaft acts on the wear or the machining is out of tolerance, and the original position is telescopically moved, and then a set is set to restore the original size. This set is called the sleeve (the cylinder).The fixture of the sleeve. Some parts are placed in the sleeve for easy positioning and clamping.
Description
| Item Name | Ejector pins and sleeves |
| Material | 1.2343.1.2344,H13,SKD61,SKH51 or customized |
| Hardness | HRC58-62 |
| Tolerance | As per standard or drawing |
| Heat treatment | As per standard |
| Surface treatment | TiCN,TiN,Tiain,Ticrn,TD,DLC,Chrome, Black oxygened |
| Shipment | By air (DHL,UPS,TNT,FEDEX) or By sea |
| Packaging | Inner: Platic bag; Outter: Carton box |
| After-sale service | 1. Remake goods freely & soonest if there is quality problem |
| 2. Accept cancelling order when there is big quality issue | |
| Our advantage | 1. Made to order & samples are available |
| 2. Best quality material & accurate sizes | |
| 3. Skilled engineers & advanced technology | |
| 4. Precise inspection | |
| 5. On-time delivery | |
| How to order | 1. Send us drawing or standard code & size |
| 2. We quote you within 24 day | |
| 3. Get agreement with price and sign PO or Contract | |
| 4. Make payment in advance | |
| 5. If sample required, we will make sample first |
Our service
1. Quick Response: Your inquiry will be replied within 24 hours.
2. Competitive Price: Directly from factory to save your money.
3. After-sales warranty: Once there is problem after you received products, you can contact us in time. We will resolve it in short time.
4. Flexibility: Small orders are acceptable for quick delivery and to help you reduce stock cost.
5. OEM service: Custom fabrication according to your drawings ,samples or designs.
Why choose us?
1. Professional high quality OEM factory.
2. More than 8 years experience in this field.
3. 90% for export and get very good feedback.
4. Strictly in process checking and 100% inspect of finish goods.
5. Imported milling machine can reach 0.005mm tolerance.
6. High quality and reasonable price.
At the same time, we can manufacture according to the following criteria:
Hasco / Misumi / DME / Pedrotti / Voest / Strack / Fibro / DIN / DAYTON / PUNCH / DANLY / Lmina
Main Products: Precision mould parts, plastic mould parts, die casting mold parts, mold core pins, ejector pins and sleeves, die punch pins, sprue bushing, locating block, mold date insert, precision cnc machined parts, etc.
